    45# Steel Roof Glazed Tile Roll Forming Machine With Chrome Plated

    Ask Lasest Price
    Brand Name : HC
    Certification : ISO
    Model Number : HC29-185-925
    Delivery Time : 30days
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    • Product Details
    • Company Profile

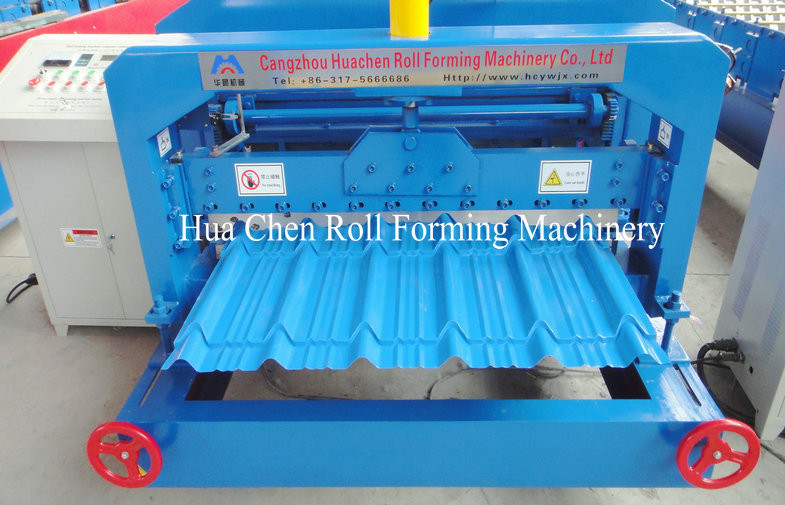

    45# Steel Roof Glazed Tile Roll Forming Machine With Chrome Plated

    Can't find a reliable supplier for Glazed Tile Roll Forming Machine? Huachen is your best choise.
    Cangzhou huachen roll forming machinery Co., Ltd is the manufacturer specilized in metal roofing roll forming machine. We provide an extensive line of products, which includes roof and wall panel machine , roof tile machine, purline forming machine, floor decking machine,gutter forming machine,roller shutter machine etc.

    What's your machine application ?

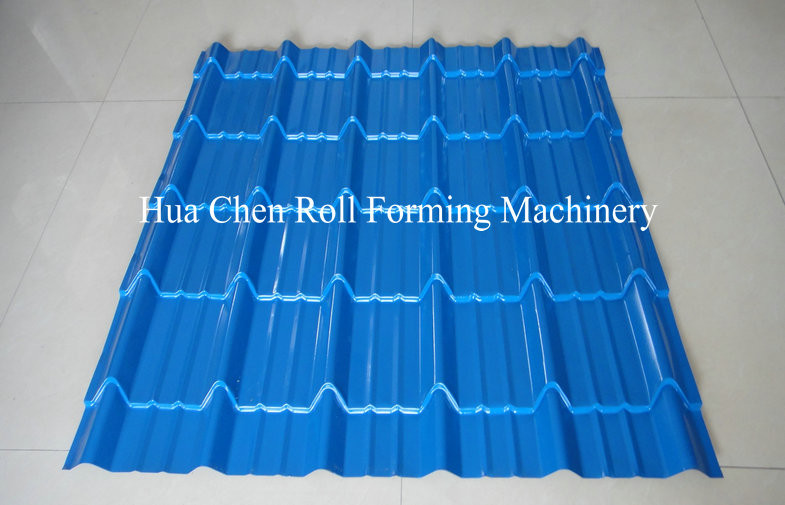

    Our roll forming machines can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

    45# Steel Roof Glazed Tile Roll Forming Machine With Chrome Plated45# Steel Roof Glazed Tile Roll Forming Machine With Chrome Plated45# Steel Roof Glazed Tile Roll Forming Machine With Chrome Plated

    Quick Detail:

    1. Suitable to process: Color steel plate

    2. Width of the plate: 1200mm

    3. Rollers: 12 rows

    4. Dimensions: 7.2*1.55*1.51m

    5. Power: 4+4kw

    6. Rolling material: 45# steel(plated chrome on surface)

    7. Thickness of the plate:0.3-0.6mm

    8. Voltage: 380V 50Hz 3phases

    9. Material of the cutting plate: Cr12

    10. Hydraulic: 40#

    11. Processing precision: Within 1.00mm

    12. Control system: PLC control


    Description

    Glazed Tile Roll Forming Machine Main parameter

    No.

    Main parameter of Glazed Tile Roll Forming Machine

    1

    Suitable to process

    Color steel plate

    2

    Width of the plate

    1200mm

    3

    Rollers

    12 rows

    4

    Dimensions

    7200*1550*1510m

    5

    Power

    4+4kw

    6

    Rolling material

    45# steel(plated chrome on surface)

    6

    Thickness of the plate

    0.3-0.6mm

    7

    Productivity

    4m/min

    8

    Diameter of the roller

    Φ70mm

    9

    Voltage

    380V 50Hz 3phases

    10

    Material of the cutting plate

    Cr12

    11

    Hydraulic

    40#

    12

    Processing precision

    Within 1.00mm

    13

    Control system

    PLC control

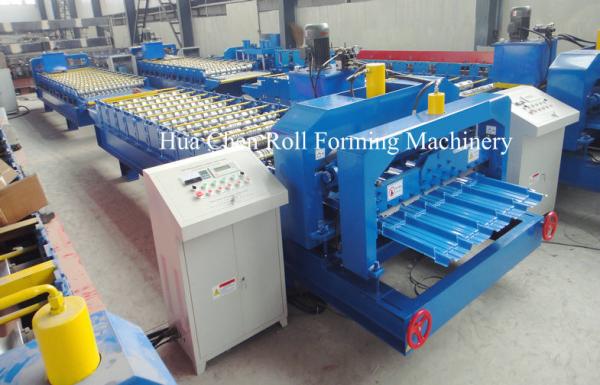

    Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-press form-cutting


    Competitive Advantage

    1.CE and ISO certification

    2. use for roofing and wall

    3. high strength, anti-corrosion

    4. One year free warranty

    5. provide lifelong technique service

    Why choose Huachen ?
    1.Q: Do you have after sales support?
    A: Yes, we are happy to give advice on machine operating and maintenance. we also have skilled technicians available abroad to help you.We need your machines running in order to keep your business running.

    2.Q: How do your machines compare with other big companies in this market?
    A: We are up to date with the latest technology and improve our machines accordingly .We need to make gress to move forward.

    3.Q: How does your factory do regarding quality control?
    A: Quality is priority.To all Huachen people,the concept "Control every process and perfect all products" is curved in mind. Every product will be fully assembled and carefully tested before it's packed for shipment.

    4.Q: Do you sell only standard machines?
    A: No, most of our machines are designed according to customers specifications,we offer OEM service.

    5.Q: Will you deliver the right goods as ordered? How can I trust you?
    A: Yes, we will. welcome to come and check your machine after finished, or we will show you machine working video for confirm. Then delivery.
