    Most Popular color sheet steel metal Rain Gutter roof roll forming machine

    Ask Lasest Price
    Brand Name : HC
    Certification : ISO
    Model Number : HC135
    Price : 8000-29000USD
    Delivery Time : 30days
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    • Product Details
    • Company Profile

    Most Popular color sheet steel metal Rain Gutter roof roll forming machine

    Most Popular color sheet steel metal Rain Gutter roof roll forming machine

    Product Description

    Main Features

    1.machine adopt advanced technicall

    2.high quality of the structure

    3,one year warranty

    4.more the 10 years experience


    Quick Detail:


    1. Suitable to process: Color steel plate

    2. Width of the plate: 285mm

    3. Rollers: 18 rows

    4. Dimensions: 8.6*1.15*1.51m

    5. Power: 3+3kw

    6. Rolling material: 45# steel(plated chrome on surface)

    7. Thickness of the plate:0.3-0.6mm

    8. Voltage: 380V 50Hz 3phases

    9. Material of the cutting plate: Cr12

    10. Hydraulic: 40#

    11. Processing precision: Within 1.00mm

    12. Control system: PLC control

    Detailed Technology
    Most Popular color sheet steel metal Rain Gutter roof roll forming machine
    3T hydraulic decoiler
    Coil weight (Max)
    3000kg
    Inter diameter of coil
    420mm-510mm
    Working by hydraulic pressure
    8-12Mpa with connect with the decoiler hydraulic unit
    Working lift journey
    Maximal 250mm
    Working function
    forward and reverse movable
    Move journey
    maximal 2 meters
    Most Popular color sheet steel metal Rain Gutter roof roll forming machine
    Forming Section
    Roller material
    ASTM1045 chrome plated surface with chrome,CNC,
    Thickness range
    0.3-0.8mm
    Main motor power
    5.5kw, AC motor, motor inside of main machine
    Roll station
    about 16 stations (according the final design)
    Shaft diameter
    ¢65mm
    Machine roll forming speed
    not less than 12m/min
    Transmission
    by chain, one inch, Single line
    Most Popular color sheet steel metal Rain Gutter roof roll forming machine

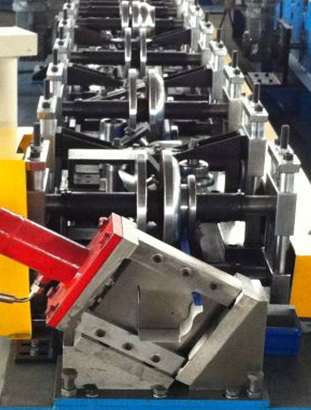

    Post cutting system
    Material of blade
    Cr12, 58-62 HRC hardness
    Cutting power
    hydraulic, 5.5KW
    Working pressure
    12Mpa adjustable
    Length measuring
    Automatic encoder length measuring
    brand
    Omron
    Tolerance of length
    +/- 1.5mm for each piece end product
    The cutting sequence is also contained and controlled by the same PLC program
    Most Popular color sheet steel metal Rain Gutter roof roll forming machine
    Hydraulic station
    Hydraulic power
    5.5kw
    Working pressure
    12Mp adjustable
    Solenoid valve
    1 groups
    Hydraulic oil
    46# hydraulic oil
    Color
    Blue (or base on customer request)
    Quantity
    1
    Most Popular color sheet steel metal Rain Gutter roof roll forming machine
    Control desk
    Programmable setting of profile length and quantity
    Automatic stopping of the equipment after completion of the cutting programme will be provided.
    language
    English and Chinese
    Voltage, Frequency, Phase
    380 V, 50 Hz, 3Phase
    Control panel
    Button-type switch and touch screen
    Unit of length
    millimeter
    PLC brand
    Panasonic

    Most Popular color sheet steel metal Rain Gutter roof roll forming machineMost Popular color sheet steel metal Rain Gutter roof roll forming machineMost Popular color sheet steel metal Rain Gutter roof roll forming machineMost Popular color sheet steel metal Rain Gutter roof roll forming machine

    Application


    This product is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product. It has advantage of pretty appearance, durable using and so on.


    Competitive Advantage


    1. elegant appearance

    2.high quality steel structure

    3. One year free guarantee

    4. lifelong maintain

    5. Panasonic PLC
