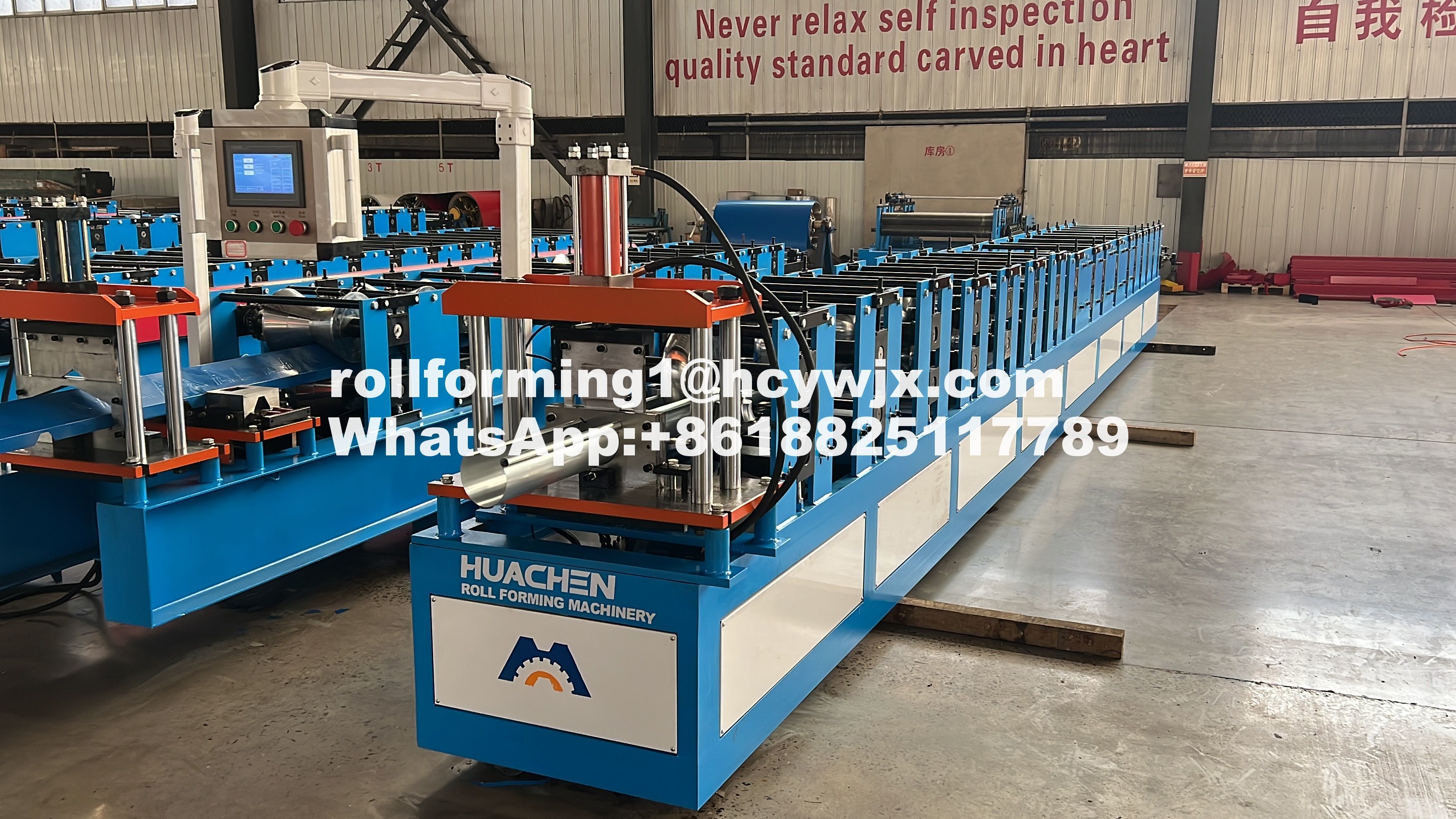

    half round gutter Roll Forming Machine

    Ask Lasest Price
    Brand Name : HC
    Certification : ISO
    Model Number : HC333
    Price :
    Delivery Time : 30days
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    • Product Details
    • Company Profile

    half round gutter Roll Forming Machine

    Main Parameters of water gutter cold roll forming equipment:

    No.main parameter of gutter roll forming machine
    1Suitable to processColor steel plate, galvanized sheet, aluminum coils and etc.
    2Width of the feeding materialAccording to the profile
    3Rollers station19rows
    4Thickness of feeding material0.3-0.6mm
    5Power4+4kw
    6Size8500*800*1500mm
    7Productivity15m/min
    8Diameter of shaft70mm
    9WeightAbout 4.8 T
    10Voltage380V 50Hz 3phases
    11Rolling materialCarbon Steel 45#
    12Material of the cutting plateCr12
    13Wall thickness of main forming machine16mm steel plate
    14Main structure of the machine300 H steel

    The advantage of seamless rain gutter cold roll forming machine

    seamless rain gutter cold roll forming machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.

    seamless rain gutter cold roll forming machine is composed of uncoiler, the feed leading table, the main machine, the formation cutting device, hydraulic system, control system and the product bracket.

    Description:

    Gutter Roll Forming Machine Main parameter

    No.

    Main parameter of Gutter Roll Forming Machine

    1

    Suitable to process

    Color steel plate

    2

    Width of the plate

    333 mm

    3

    Rollers

    18 rows

    4

    Dimensions

    8.6*1.15*1.51m

    5

    Power

    4+4kw

    6

    Rolling material

    45# steel(plated chrome on surface)

    6

    Thickness of the plate

    0.3-0.6mm

    7

    Productivity

    15m/min

    8

    Diameter of the roller

    Φ70 mm

    9

    Voltage

    380V 50Hz 3pha ses

    10

    Material of the cutting plate

    Cr12

    11

    Hydraulic

    40#

    12

    Processing precision

    Within 1.00mm

    13

    Control system

    PLC control

    Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

    Application

    This product is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product. It has advantage of pretty appearance, durable using and so on.

    Competitive Advantage

    1. use for villa roofing sculpt

    2. beautiful, durable

    3. customer customization

    4. CE certification

    5. professional manufacturer

    half round gutter Roll Forming Machinehalf round gutter Roll Forming Machine
