    Color Steel Plate Floor Deck Roof Panel Roll Forming Machine 1500mm PLC Control

    Ask Lasest Price
    Brand Name : HC
    Certification : ISO
    Model Number : HC137
    Price :
    Delivery Time : 30days
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    • Product Details
    • Company Profile

    Color Steel Plate Floor Deck Roof Panel Roll Forming Machine 1500mm PLC Control

    Floor Deck Roof Panel Roll Forming Machine Features

    We do high standard roll forming machine for export about 10 years.
    We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
    We have machines at more than 90 cuntries and regions,and keep good business relationship.
    we offer one year free warranty and free service for whole life of any machine.

    Certifications
    Color Steel Plate Floor Deck Roof Panel Roll Forming Machine 1500mm PLC ControlColor Steel Plate Floor Deck Roof Panel Roll Forming Machine 1500mm PLC ControlColor Steel Plate Floor Deck Roof Panel Roll Forming Machine 1500mm PLC Control

    Floor Deck Roof Panel Roll Forming Machine​ Parts

    Detailed Images

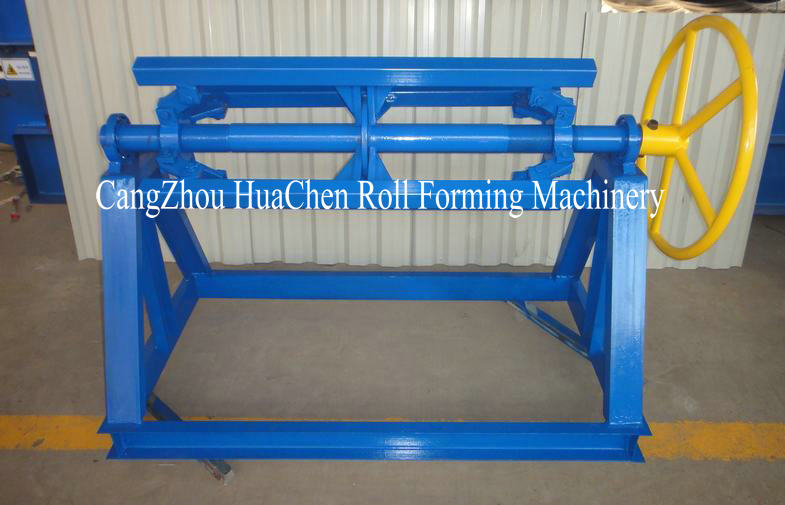

    5T Manual decoiler

    Dimensions: 1700*1000*800
    Width: 1250mm
    Inner Diameter: 450-508mm
    Capacity: 5T
    Quality: 1 set

    We also have Hydraulic type for 5T to 10 T .

    Feeding Device

    Width: 1250 mm Adjustable
    It helps to keep products neat, parallel and everything is uniformity. Please refer to the equipment instruction to know the function of locate angle iron.

    Color Steel Plate Floor Deck Roof Panel Roll Forming Machine 1500mm PLC Control

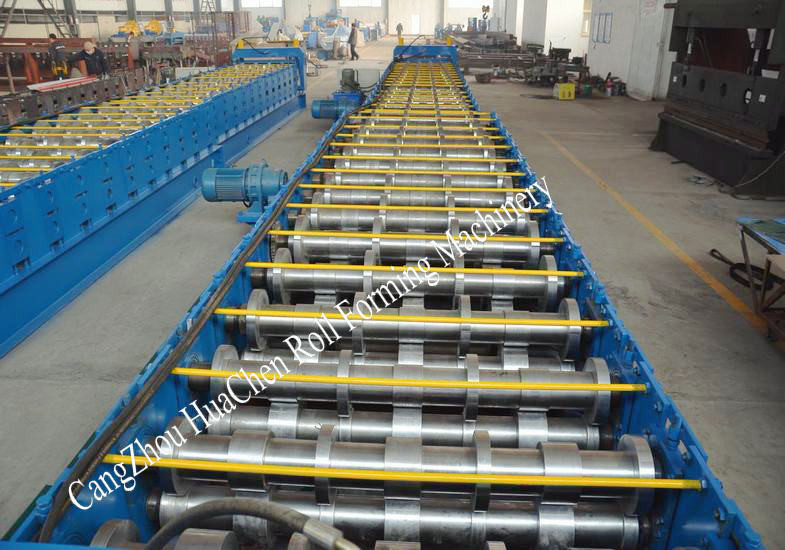

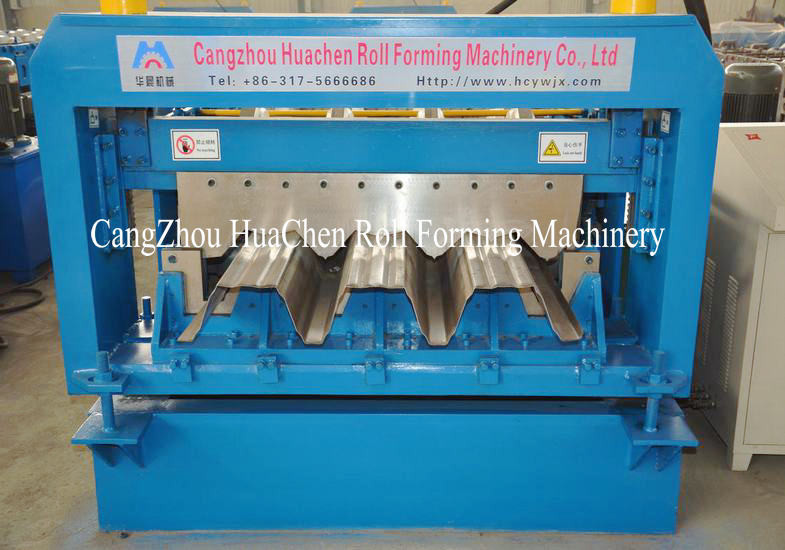

    Main Roll Former

    We have experieced workers to design the rollers as customized profile drawing , and adopts welded steel frame sturcture, AC frequency conversion motor reducer drive, chain transmission , to get strong machine for good finish products .

    Hydraulic Pump Station

    Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
    PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

    PLC control system

    PLC Brand : EURA or Customized
    Language: English and Chinese
    Control panel: Button or Touch Sreen
    Frequency converter : EURA or customized
    HMI : Easy to operate

    Hydraulic Cutting

    Forming and Cutting: Cut the sheet after roll forming to required length
    Material of blade: Cr12, 58-62 HRC hardness
    Hydraulic power : 4KW
    Length measuring : Automatic encoder length measuring
    Tolerance of length : +/- 1.5mm for each piece

    Color Steel Plate Floor Deck Roof Panel Roll Forming Machine 1500mm PLC Control

    Out Put Table

    Size: 1500*1300*700mm
    Quantity: 2 sets

    We also have Auto stacker for automatic production line .


    Our Service


    Pre-Sales Service

    * Inquiry and consulting support.
    * Sample testing support.
    * View our Factory.

    After-Sales Service

    * Training how to instal the machine, training how to operate the machine.
    * Engineers available to service machinery overseas.


    Packing & Delivery

    Size: 11500 (L) * 1500 (W) * 1510 (H)
    Weight: 28T
    1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
    2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
    3.One set of machine needs a 40' container to shipping.


    Color Steel Plate Floor Deck Roof Panel Roll Forming Machine 1500mm PLC Control
