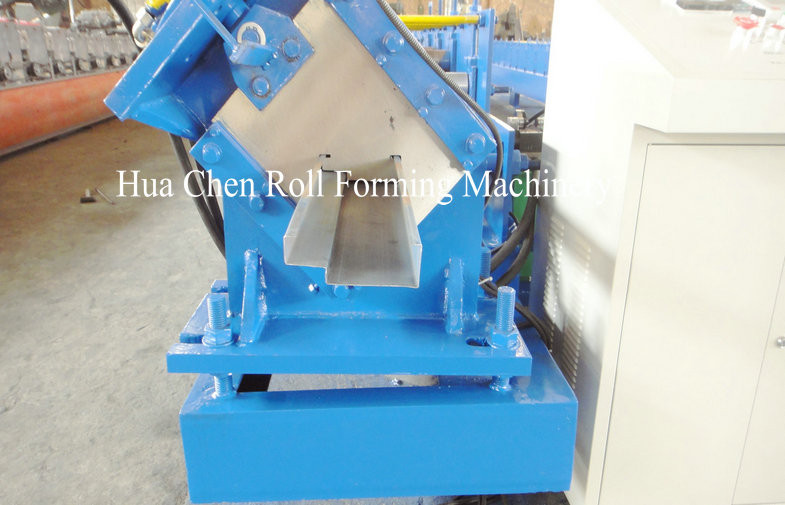

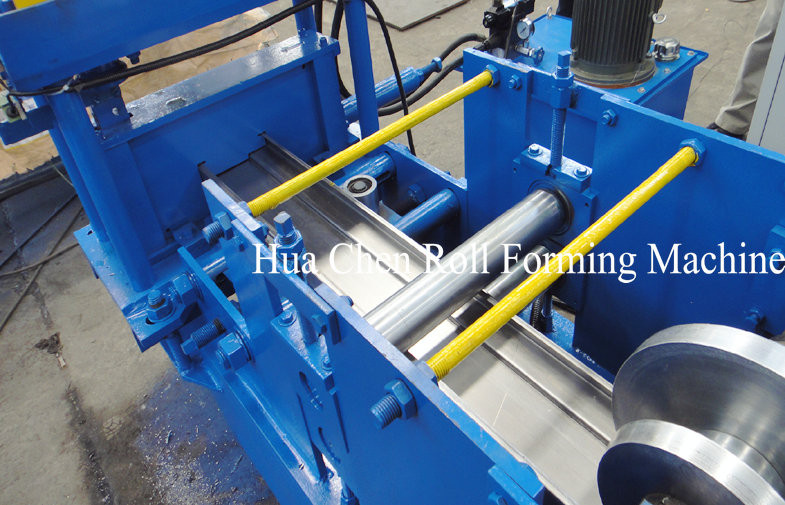

    Durable 1.5-2mm Galvanized Steel Door Frame Roll Forming Machine with CE 380V

    Ask Lasest Price
    Brand Name : HC
    Certification : ISO
    Model Number : HC146/196
    Price : 12000-29000USD
    Delivery Time : 30days
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    • Product Details
    • Company Profile

    Durable 1.5-2mm Galvanized Steel Door Frame Roll Forming Machine with CE 380V

    Durable 1.5-2mm Galvanized Steel Door Frame Roll Forming Machine with CE 380V

    Durable 1.5-2mm Galvanized Steel Door Frame Roll Forming Machine with CE 380VDurable 1.5-2mm Galvanized Steel Door Frame Roll Forming Machine with CE 380VDurable 1.5-2mm Galvanized Steel Door Frame Roll Forming Machine with CE 380V

    Description:
    Door Frame Roll Forming Machine Main parameter

    No.

    Main parameter of Door Frame Roll Forming Machine

    1

    Suitable to process

    Color steel plate

    2

    Width of the plate

    260/310mm

    3

    Rollers

    17 rows

    4

    Dimensions

    8200*1350*1510mm

    5

    Power

    5.5+4kw

    6

    Rolling material

    shaft bearing steel(quenching)

    6

    Thickness of the plate

    0.6-1mm

    7

    Productivity

    8-10m/min

    8

    Diameter of the roller

    Φ80mm

    9

    Voltage

    380V 50Hz 3phases

    10

    Material of the cutting plate

    Cr12

    11

    Hydraulic

    40#

    12

    Processing precision

    Within 1.00mm

    13

    Control system

    PLC control


    Equipment components: Man-made uncoiler-leveling-roll forming machine-computer control system-hydraulic control system- cutting

    Application
    It can be used in the gate,inside door,window frame;nice appearance, durable

    Competitive Advantage
    1. CE certification
    2. hydraulic motor drive
    3. Exported to more than 70 countries
    4. suitable for various kinds of steel plate
    5. voltage according to customer request
    Why choose Huachen ?
    1.Q: Do you have after sales support?
    A: Yes, we are happy to give advice on machine operating and maintenance. we also have skilled technicians available abroad to help you.We need your machines running in order to keep your business running.
    2.Q: How do your machines compare with other big companies in this market?
    A: We are up to date with the latest technology and improve our machines accordingly .We need to make gress to move forward.
    3.Q: How does your factory do regarding quality control?
    A: Quality is priority.To all Huachen people,the concept "Control every process and perfect all products" is curved in mind. Every product will be fully assembled and carefully tested before it's packed for shipment.
    4.Q: Do you sell only standard machines?
    A: No, most of our machines are designed according to customers specifications,we offer OEM service.
    5.Q: Will you deliver the right goods as ordered? How can I trust you?
    A: Yes, we will. welcome to come and check your machine after finished, or we will show you machine working video for confirm. Then delivery.
