    Cr12 Color Steel Frame Roll Forming Machine For Garage / Security Door

    Ask Lasest Price
    Brand Name : HC
    Certification : ISO
    Model Number : HC90
    Price :
    Delivery Time : 30days
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    • Product Details
    • Company Profile

    Cr12 Color Steel Frame Roll Forming Machine For Garage / Security Door

    Cr12 Color Steel Frame Roll Forming Machine For Garage / Security Door

    Quick Detail:

    1. Suitable to process: Color steel plate

    2. Width of the plate: 165mm

    3. Rollers: 12rows

    4. Dimensions: 3.5*1.15*1.51m

    5. Power: 3+3kw

    6. Rolling material: 45# steel(plated chrome on surface)

    7. Thickness of the plate:0.3-0.6mm

    8. Voltage: 380V 50Hz 3phases

    9. Material of the cutting plate: Cr12

    10. Hydraulic: 40#

    11. Processing precision: Within 1.00mm

    12. Control system: PLC control

    Description:

    Rolling Shutter Door Roll Forming Machine Main parameter

    No.

    Main parameter of Rolling Shutter Door Roll Forming Machine

    1

    Suitable to process

    Color steel plate

    2

    Width of the plate

    165mm

    3

    Rollers

    12 rows

    4

    Dimensions

    3500*1150*1510mm

    5

    Power

    3+3kw

    6

    Rolling material

    45# steel(plated chrome on surface)

    6

    Thickness of the plate

    0.6mm

    7

    Productivity

    15m/min

    8

    Diameter of the roller

    Φ36 mm

    9

    Voltage

    380V 50Hz 3phases

    10

    Material of the cutting plate

    Cr12

    11

    Hydraulic

    40#

    12

    Processing precision

    Within 1.00mm

    13

    Control system

    PLC control

    Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

    Application

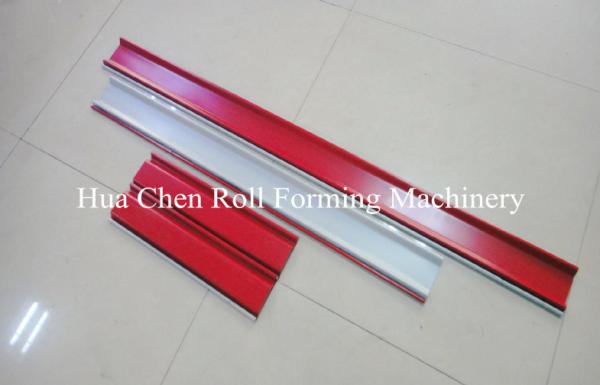

    This type of sheet can be widely used as the door of garage, storage and supermarket.

    Competitive Advantage

    1. operations safety

    2. nice appearance, high quality

    3. reasonable price

    4. CE certification

    5. ISO certification
