    high quality Steel Rolling Shutter Door Roll Forming Machine for garage door

    Ask Lasest Price
    Brand Name : HC
    Certification : ISO
    Model Number : HC830
    Price : 5000-19000USD
    Delivery Time : 30days
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    • Product Details
    • Company Profile

    high quality Steel Rolling Shutter Door Roll Forming Machine for garage door


    Shutter Door Forming Machine


    Quick Detail:


    1. Suitable to process: Color steel plate

    2. Width of the plate: 1000mm

    3. Rollers: 18rows

    4. Dimensions: 8.6*1.45*1.51m

    5. Power: 3+3kw

    6. Rolling material: 45# steel(plated chrome on surface)

    7. Thickness of the plate:0.3-0.6mm

    8. Voltage: 380V 50Hz 3phases

    9. Material of the cutting plate: Cr12

    10. Hydraulic: 40#

    11. Processing precision: Within 1.00mm

    12. Control system: PLC control

    Product Description

    The chart of process flow

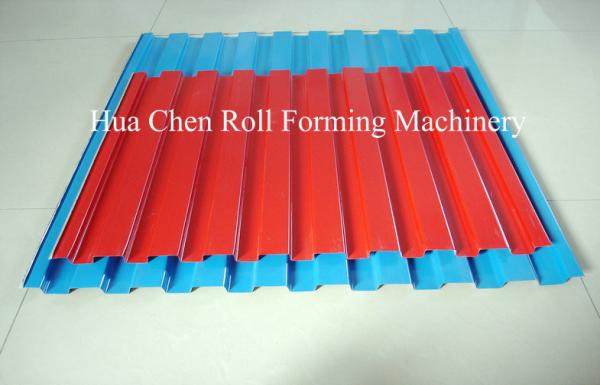

    roll shutter door roll forming machine/roller shutter/rolling slats

    Decoiling—active feeding (put the coil strip into the first feeding roller)—leveling —roll forming —

    computer control system—hydraulic cutting—product to stand

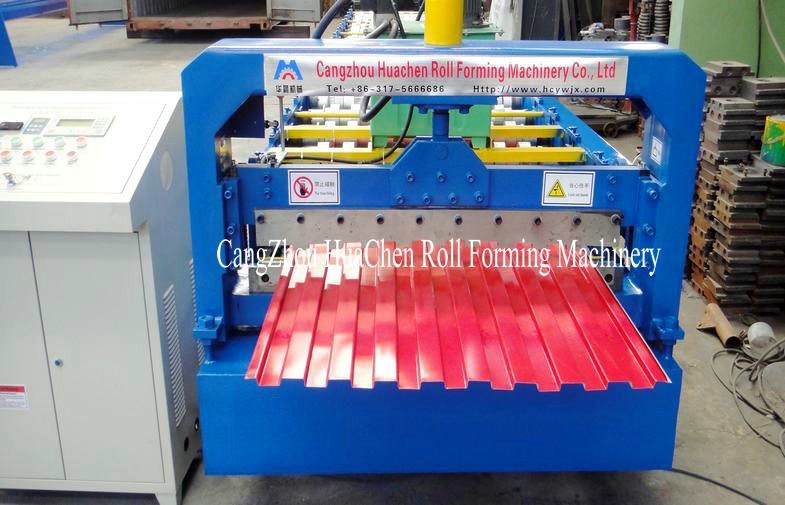

    Equipment technical parameters

    Molding hostModelSB-roll forming machine
    Forming size5000mm×800mm×1000mm
    weight3T
    Host big frame structureFrame welded
    Roll station14rows
    Axial material45# steel
    Out diameter of shaftΦ70mm
    Roller materials45# steel hard chromium plating
    DriveBy chain
    Sprocket chain1 inch
    Main power:4kw
    Working speed8-10 m/min
    Material thickness0.3-0.8mm
    Made board16mm

    Hydraulic shearing


    Material of bladeCr12,heat treatment 60-62°C
    Shearing system

    It is controlled by gear wheel oil pump. After

    filling the hydraulic oil into the hydraulic oil tank,

    the pumps drive the cutter machine to begin the

    cutting job.

    The system includes a set of hydraulic tank, a

    set of hydraulic oil pump, two hydraulic pipes.

    And two sets of electromagnetism valves.

    Power of the oil pump: 3kw

    Hydraulic oil :40#


    Electrical system


    Main computer control cabinet

    It adopts industrial computer to control. The target piece’s

    length is adjustable and digit of it can be adjusted. Computer

    mode has two modes: automatic and manual one. The system

    is easy to operate and use.

    Processing precision : within 1.00mm

    It contains liquid crystal screen, programmer, transformer

    for the electronic machines and kits of every part.

    Transducer brand is EURA.

    The seller will provide Chinese and English language screen.

    high quality Steel Rolling Shutter Door Roll Forming Machine for garage doorhigh quality Steel Rolling Shutter Door Roll Forming Machine for garage doorhigh quality Steel Rolling Shutter Door Roll Forming Machine for garage doorhigh quality Steel Rolling Shutter Door Roll Forming Machine for garage door


    Application

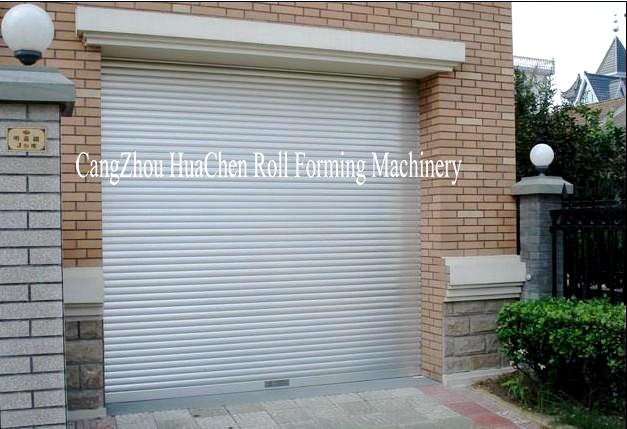

    This type of sheet can be widely used as the door of garage, storage and supermarket.


    1. Warranty :One year,and we will provide technical support for whole life of the equipment.
    2. Delivery time: Within 30 days after deposit receipt your payment
    3. Guarantee period: 18months free service/ pay service all the machine life
    4. Installation and training If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.Without visiting,we will send you user manual and video to teach you to install and operate.If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
