    Metal Roof Sheet Ridge Cap Roll Forming Machine

    Ask Lasest Price
    Brand Name : HC
    Certification : ISO
    Model Number : HC343
    Price : 8000-19000USD
    Delivery Time : 30days
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    • Product Details
    • Company Profile

    Metal Roof Sheet Ridge Cap Roll Forming Machine

    Metal Roof Sheet Ridge Cap Roll Forming Machine


    Quick Detail:


    1. Suitable to process: Color steel plate

    2. Width of the plate: 400mm

    3. Rollers: 11 rows

    4. Dimensions: 5.4*1.15*1.51m

    5. Power: 3+3kw

    6. Rolling material: 45# steel(plated chrome on surface)

    7. Thickness of the plate:0.3-0.6mm

    8. Voltage: 380V 50Hz 3phases

    9. Material of the cutting plate: Cr12

    10. Hydraulic: 40#

    11. Processing precision: Within 1.00mm

    12. Control system: PLC control

    Our Metal Ridge Cap Machine Advantage

    1.Good quality: We have a professional designer and experienced engineer team.And

    the raw material and accessories we use are good.

    2.Good service: we provide the technical support for whole life of our machines.

    3.Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.

    4.Easy operation:All machine cotrolling by PLC computer controlling systerm.

    5.Elegant apperance:Protect the machine from rust and the painted colour can be customized

    6.Reasonable price:We offer the best price in our industry.

    Our Metal Ridge Cap Machine Technical Parameter

    No.Itemparameter
    1Machine size6500*900*1700mm
    2Machine weight4500kg
    3Machine power4kw
    4Hydraulic engine2.2kw
    5Roll speed14M/Min Max
    6Roll stations12
    7Roller materialGCr15
    8Effective width252mm
    9Feeding width333mm
    10Voltage380V 50Hz 3PH/Customized
    11Material thickness0.3-0.6mm/Customized
    12Control SystemSchneider/Delta/Customized

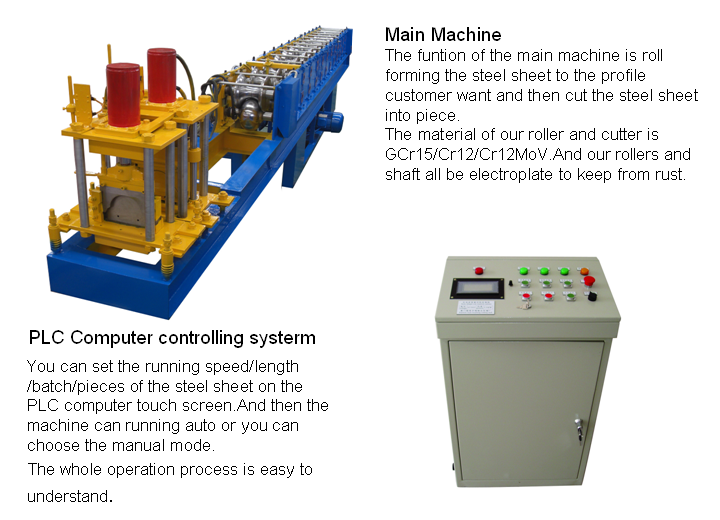

    Our Metal Ridge Cap Machine Main Accesories

    Metal Roof Sheet Ridge Cap Roll Forming MachineMetal Roof Sheet Ridge Cap Roll Forming Machine YX79-252


    Description:


    Ridge Cap Roll Forming Machine Main parameter

    No.

    Main parameter of Ridge Cap Roll Forming Machine

    1

    Suitable to process

    Color steel plate

    2

    Width of the plate

    400mm

    3

    Rollers

    11rows

    4

    Dimensions

    5300*1150*1510mm

    5

    Power

    3+3kw

    6

    Rolling material

    45# steel(plated chrome on surface)

    6

    Thickness of the plate

    0.3-0.6mm

    7

    Productivity

    8-10m/min

    8

    Diameter of the roller

    Φ66 mm

    9

    Voltage

    380V 50Hz 3phases

    10

    Material of the cutting plate

    Cr12

    11

    Hydraulic

    40#

    12

    Processing precision

    Within 1.00mm

    13

    Control system

    PLC control

    Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-press form-cutting


    Metal Roof Sheet Ridge Cap Roll Forming MachineMetal Roof Sheet Ridge Cap Roll Forming MachineMetal Roof Sheet Ridge Cap Roll Forming Machine

    Application


    This product is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product. It has advantage of pretty appearance, durable using and so on.


    Competitive Advantage


    1. save space

    2. easy install

    3. perfect service

    4. excellent quality

    5. save freight
