    W Shaped Highway Guardrail Forming Machine with pre punch 3mm thickness

    Ask Lasest Price
    Brand Name : HC
    Certification : CE
    Model Number : HC330
    Price : 48000USD
    Delivery Time : 60days after receive agreed deposit.
    Payment Terms : 30% deposit by TT in advance, the balance to be paid before delivery.
    Supply Ability : 20Set/Month
    • Product Details
    • Company Profile

    W Shaped Highway Guardrail Forming Machine with pre punch 3mm thickness

    Highway Guardrail Roll Forming Machine


    Quick Detail:

    1. Suitable to process: Color steel plate

    2. Width of the plate: 550mm

    3. Rollers: 24 rows

    4. Dimensions: 11.6*1.35*1.51m

    5. Power: 22+7.5kw

    6. Rolling material: shaft bearing steel(quenching)

    7. Thickness of the plate:2.5-3mm

    8. Voltage: 380V 50Hz 3phases

    9. Material of the cutting plate: Cr12

    10. Hydraulic: 40#

    11. Processing precision: Within 1.00mm

    12. Control system: PLC control

    Hydraulic Decoiler

    1. inner diameter: 450-550mm

    2. outer diameter: 1500mm

    3. coil width:1250mm

    4. capacity: 5T

    Feeding&Flatting Device

    1. upper leveling roller: 3 station

    2. lower leveling roller: 4 station

    3. shaft: 45#steel

    4. roller: 45#steel ang outer diameter 80mm

    Forming Mchine

    1. shaft: 45#steel and outer diameter 80mm

    2. roller material: Cr15

    3. gear box transmission

    4. forming station:18 stations

    5. forming speed: 8-12m/min

    6. motor: 11kw

    7. voltage: 220v 50hz 3phase

    Hydraulic punching

    1. punching type: hydraulic punching

    2. punching material: Cr12

    3. punching die: Cr12

    Cutting

    1. cutting type: hydraulic cutting

    2. cutting material: Cr12&Cr12mov

    3. oil pump: 18.5kw

    Control System

    1. PLC Brand:Delta

    2. Screen: touch screen

    3. automatic length and quantity measurement

    4. control forming speed

    5. error is easy to adjust

    6. scram stop button

    Runout Tablelength of runout table is according to client requirement

    W Shaped Highway Guardrail Forming Machine with pre punch 3mm thickness

    5,Description:


    Highway Guardrail R Forming Machine Main parameter

    No.

    Main parameter of Highway Guardrail R Forming Machine

    1

    Suitable to process

    Color steel plate

    2

    Width of the plate

    550mm

    3

    Rollers

    24 rows

    4

    Dimensions

    110600*1350*1510mm

    5

    Power

    33+7.5kw

    6

    Rolling material

    shaft bearing steel(quenching)

    6

    Thickness of the plate

    2.5-3mm

    7

    Productivity

    8-10m/min

    8

    Diameter of the roller

    Φ100mm

    9

    Voltage

    380V 50Hz 3phases

    10

    Material of the cutting plate

    Cr12

    11

    Hydraulic

    40#

    12

    Processing precision

    Within 1.00mm

    13

    Control system

    PLC control

    Equipment components: Man-made uncoiler-leveling-roll forming machine-computer control system-hydraulic control system-punching-cutting

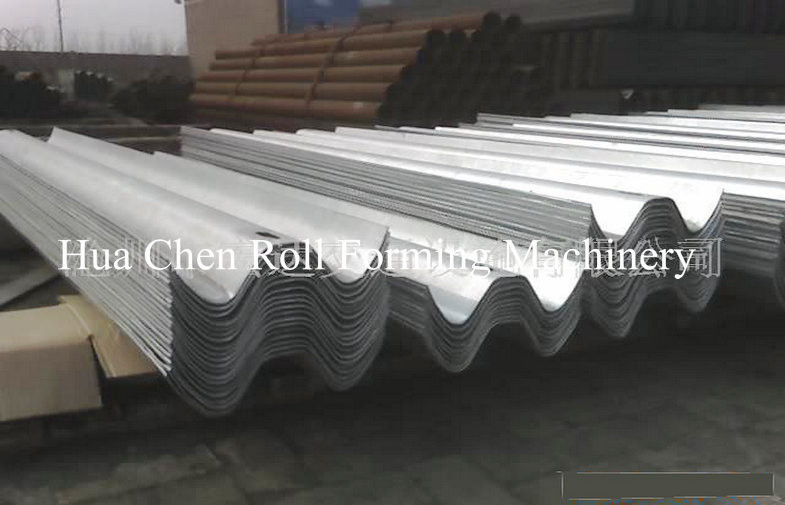

    W Shaped Highway Guardrail Forming Machine with pre punch 3mm thicknessW Shaped Highway Guardrail Forming Machine with pre punch 3mm thicknessW Shaped Highway Guardrail Forming Machine with pre punch 3mm thickness

    Competitive Advantage


    1. ISO certification

    2. CE certification

    3. PLC Panasonic

    4. One year free warranty

    5. Low loss, easy operate
