    Width Adjustable Steel L Profile Cold Roll Forming Equipment With Yellow Safe Cover

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC170
    Certification : ISO
    Price : 12000-38000
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Width Adjustable Steel L Profile Cold Roll Forming Equipment With Yellow Safe Cover

    Width adjustable steel L profile cold roll forming machine with yellow safe cover


    Product Description

    Machine DescriptionQuantityDelivery timeContainer Type
    light weight steel frame automatic c channel roll forming machine1 SET

    45 working days

    after receiving deposit

    One 20GP

    light weight steel frame automatic c channel roll forming machine Process Flow:

    Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving


    Product namelight weight steel frame automatic c channel roll forming machine
    NO.ItemsParametersRemark
    1

    Suitable

    Material

    TypeGI/PPGI/AL
    Thickness1-2mm
    2

    Product

    Specifications

    LengthAny length
    Length Tolerance±2mm/6m
    3Working Speed10 m/minStandard machine
    4Control SystemMitsubishi/Siemens PLC& transducerCustom
    5Total Power6KW
    6Total WeightAbout 3TUp to final design

    Components of ceiling c channel forming machine :

    No.NameUnitQty
    1Manual decoilerset1
    2Main forming machineset1
    3PLC control systemset1
    4Hydraulic pump stationset1

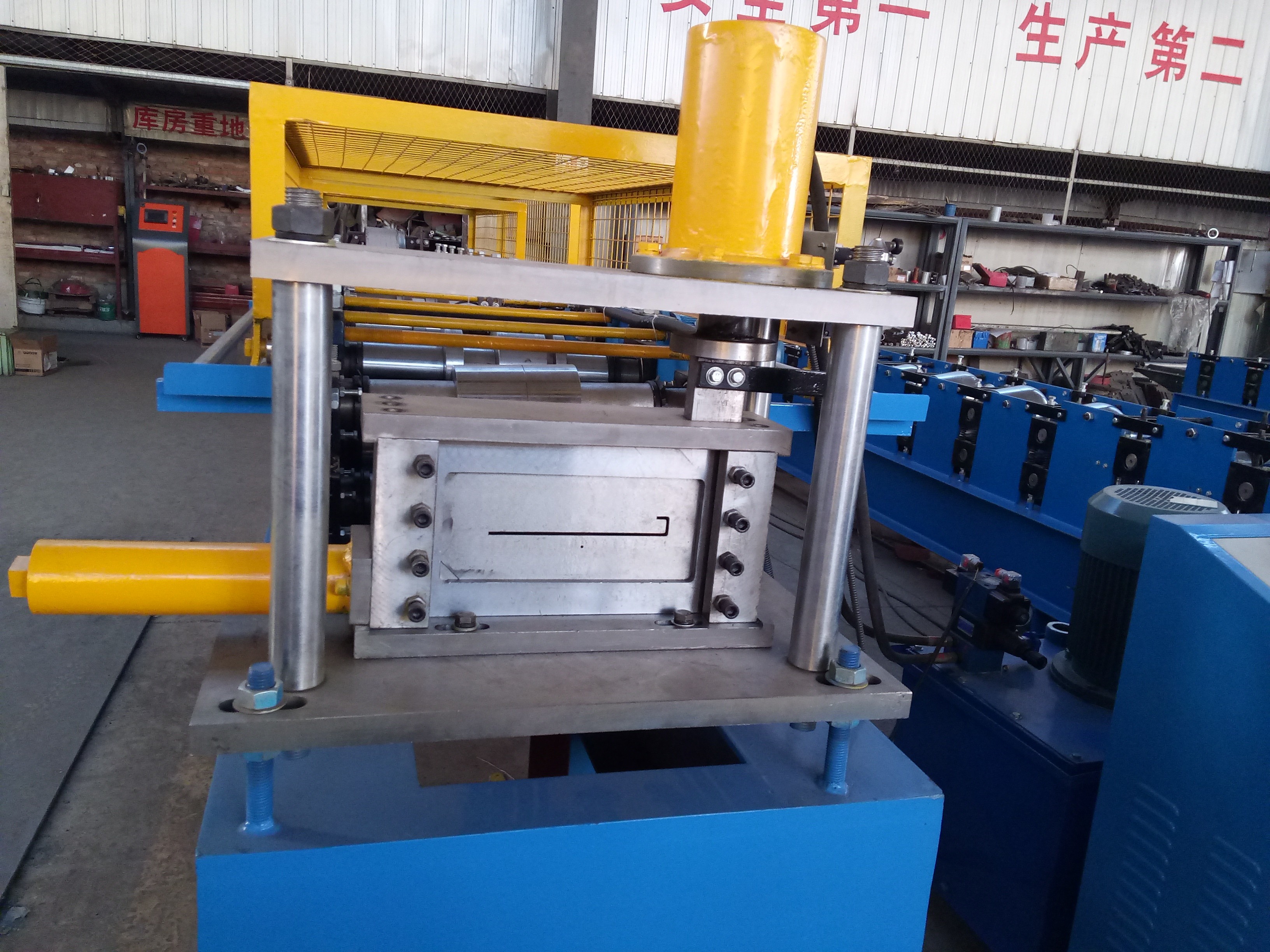

    5Post cutset1
    6Electric motorset1
    7Output tableset1


    Width Adjustable Steel L Profile Cold Roll Forming Equipment With Yellow Safe CoverWidth Adjustable Steel L Profile Cold Roll Forming Equipment With Yellow Safe CoverWidth Adjustable Steel L Profile Cold Roll Forming Equipment With Yellow Safe Cover

    Forming device

    Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain

    transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when

    it is working

    Feature : Ensure stability , precision and lifetime.


    No.Main parameter of ceiling c channel forming machine
    1Length of the main part3000*800*1400mm
    2Weight of main partAbout 3 t
    3Voltage380V/50HZ3Phase (as customer’s request)
    4Roller fixerGuide column
    5Frame

    Middle plate welded

    Memorial arch frame type

    6Frame thickness25mm
    7Drive modeGear or chain
    8Material of rollers45# steel with tempering
    9Material of shafts45# steel with tempering
    10Diameter of shaftsφ80mm
    11Number of rollers15 rollers
    Our Services

    1. Installation and training:
    a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also tr

    ain your workers/technician face to face.
    b.Without visiting, we will send you user manual and video to teach you to install and operate.
    C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary th

    ings.

    2. After Service

    a.One year guarantee for whole machine.

    b.24 hours technical support by email or calling

    c.If there is any problem found of the machine, we will repair it for free in one year.
