Thickness 0.3 - 0.6mm Metal Glazed Tile Cold Roll Forming Machine With CE Safe Cover

    Buy cheap Thickness 0.3 - 0.6mm Metal Glazed Tile Cold Roll Forming Machine With CE Safe Cover from wholesalers

    Buy cheap Thickness 0.3 - 0.6mm Metal Glazed Tile Cold Roll Forming Machine With CE Safe Cover from wholesalers
    • Buy cheap Thickness 0.3 - 0.6mm Metal Glazed Tile Cold Roll Forming Machine With CE Safe Cover from wholesalers

    Thickness 0.3 - 0.6mm Metal Glazed Tile Cold Roll Forming Machine With CE Safe Cover

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC28-200-1000
    Certification : ISO
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Thickness 0.3 - 0.6mm Metal Glazed Tile Cold Roll Forming Machine With CE Safe Cover

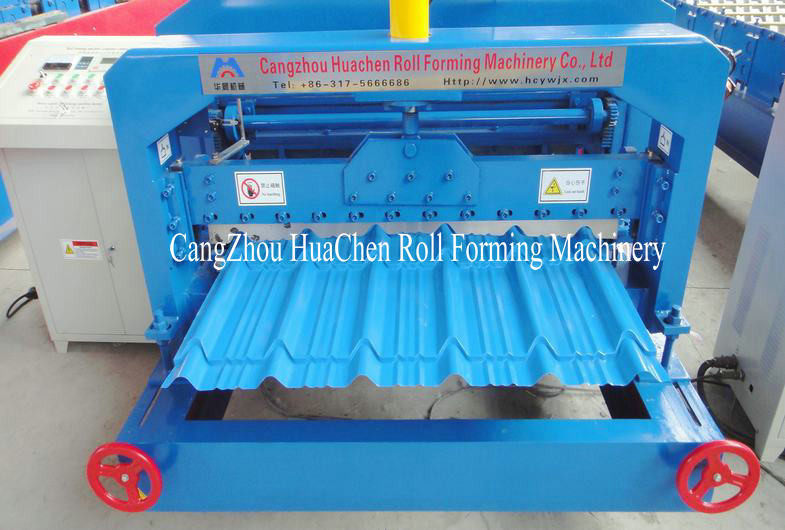

    Product Show:

    Thickness 0.3 - 0.6mm Metal Glazed Tile Cold Roll Forming Machine With CE Safe CoverThickness 0.3 - 0.6mm Metal Glazed Tile Cold Roll Forming Machine With CE Safe Cover

    Thickness 0.3 - 0.6mm Metal Glazed Tile Cold Roll Forming Machine With CE Safe CoverThickness 0.3 - 0.6mm Metal Glazed Tile Cold Roll Forming Machine With CE Safe CoverThickness 0.3 - 0.6mm Metal Glazed Tile Cold Roll Forming Machine With CE Safe Cover

    Note:

    ♦If the plate with a coating,the coating should be consistent with coating inspection standards of the relevant color-coated,should not have skin off,so as not to effect quality of roll forming.

    ♦If the material is galvanized steel,the galvanized should be consistent with the relevant testing standards of the galvanized steel,should not have zinc layer off,so as not to effect the quality of roll forming.

    Working Flow& Layout


    Good Price Metal Glazed Tile Roll Forming Machine

    Supplying components of complete machine


    NO.DescriptionQuantity (set)Remark
    15Tmanual decoiler1
    2Guiding device1One complete unit as main machine
    3Pre-cutter1
    4Forming system1
    5Transmission system1
    6Hydraulic guillotine2
    7Support table2
    8Hydraulic station1
    9Control box1
    Spare parts and tools1As attaching list

    General parameters

    NoItemParameterNote
    1Forming SpeedMax2.5 m/minExcludes cutting
    2Forming stationAround 16 groups
    3Total PowerAbout 7 KW
    4Total WeightAbout 4380KGS
    5Voltage380v,60hz,3p
    6Diameter of shaft70mm
    5Installation Size13 * 1.4 M*1.4

    Main parts material

    NoItemParameterNote
    1Forming Shaft45# steel with grinding process
    2Forming Roller45# steel with hard chrome coating
    3Cutting BladeCr12MoV with hard treatment
    4Control SystemDELTA PLC& transducer, others are Chint etc.
    5Electrical motorChina quality brand
    6BearingChina quality brand
    7ChainChina quality brand
    8Hydraulic partsChina quality brand

    Line Components and Characteristic

    Good Price Metal Glazed Tile Roll Forming MachineGood Price Metal Glazed Tile Roll Forming MachineGood Price Metal Glazed Tile Roll Forming Machine

    Spare parts(for free)


    No.NameQuantityCountry
    1RelySeveralChina
    2Encoder1pcsChina
    3Fuses2pcsChina
    4Normal Button2pcsChina
    5Switch button2pcsChina
    6Forming station bearing1pcsChina
    7Sensor4pcs

    China

    After-Sales Service

    1. we can produce the special machine,send your drawing to us,we can design for you.


    2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.


    3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.


    The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US100.


    4. engineers available to service machinery overseas.


    5. if you come to visit our factory,we can book the room for you, car pick up to send.


    Thanks for visiting our products, if you have interest, pls leave your message, or you can contact us, speical design is avaliable!


    The real data, the most professinal foreign trade team, your best trustable partner.
