    Metal Roof Glazed Tile Cold Roll Forming Machine With 5T Manual Decoiler

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC38-250-750-1000
    Certification : ISO/CE
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 Sets/Month
    Delivery Time : 30Days
    • Product Details
    • Company Profile

    Metal Roof Glazed Tile Cold Roll Forming Machine With 5T Manual Decoiler

    Leading manufacturer in North Of China

    specialized manufacturer of roll forming machine with 15 years experience

    exported to more than 30 countries,such as USA,COLOMBIA,BRAZIL,PERU,JAMACIA,INDONESIA,INDIA,VIETNAM,PHILLIPPINES,BURMA,KENYA,NIGERIA,SOUTH AFRICA,MALAWIS etc.


    Metal Roof Glazed Tile Cold Roll Forming Machine With 5T Manual DecoilerMetal Roof Glazed Tile Cold Roll Forming Machine With 5T Manual DecoilerMetal Roof Glazed Tile Cold Roll Forming Machine With 5T Manual Decoiler

    Details of machine

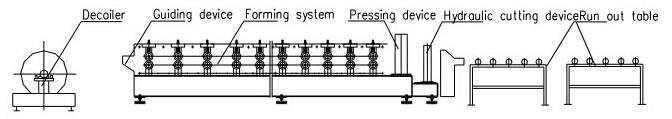

    1.Working Flow & Layout

    Metal Roof Glazed Tile Cold Roll Forming Machine With 5T Manual Decoiler

    2.Supplying components of complete machine

    NO.
    Description
    Quantity (set)
    Remark
    1
    5T manual decoiler
    1
    As one complete part
    2
    Guiding device
    1
    3
    Pre-cutter
    1
    4
    Forming system
    1
    5
    Transmission system
    1
    6
    Hydraulic guillotine
    2
    7
    Support table
    2
    8
    Hydraulic station
    1
    9
    Control box
    1
    10
    Spare parts and tools
    1
    As attaching list

    3.General parameters


    No
    Item
    Parameter
    Note
    1
    Forming Speed
    Max 2.5m/min
    Excludes Cutting
    2
    Forming Station
    Around 16Groups
    3
    Total Power
    About 7KW
    4
    Total Weight
    About 5.5T
    5
    Voltage
    380V 60HZ 3P
    Quality Metal Roof Glazed Tile Cold Roll Forming Machine With 5T Manual Decoiler for sale
