    Electrical 1250MM Width Double Deck Roll Forming Machine

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC 31 - 18
    Certification : ISO
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

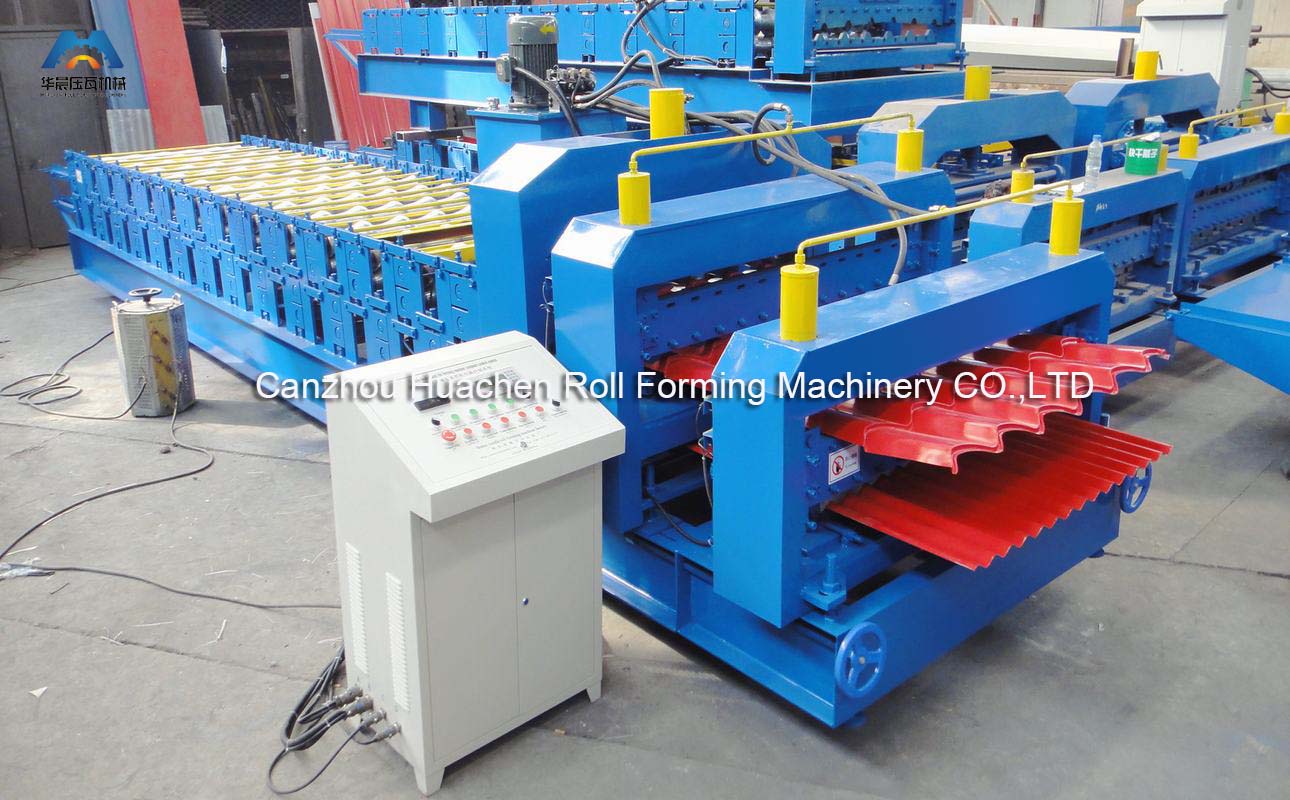

    Electrical 1250MM Width Double Deck Roll Forming Machine

    Electrical 4 + 4 kW Double Layer Roll Forming Machine Wholesale


    Machine details


    No

    1


    Suitable Materialq235

    2


    The width of the raw material750/1200mm
    3Rows of rollers

    Upper level: 11Rows

    Down-level: 12 Rows

    4Appearance size7200*1550*1910mm
    5

    Total power


    4 + 4 KW
    6The thickness of the raw material0.3-0.6mm
    7Productivity

    Upper level: 1-3 m/min

    Down-level:15-20m/min

    8Diameter of shaft¢70mm

    9


    Voltage380V 50Hz 3phases


    Machine Roller


    1. This machine is made up of roll forming machine, molding press, cutting machine, PLC computer control and hydraulic system
    2. This machine is applied to roof fortification
    3. The machine is stable, no noise and no shake.
    4. the cutting machine is characterized by stable driving, easy operation
    5. Controlling by computer, PLC display, the operation is easy and running is steady and reliable, endurable, maintenance-free
    6. Hydraulic system use the CDF-10 hydraulic pump, long operating life, no noise

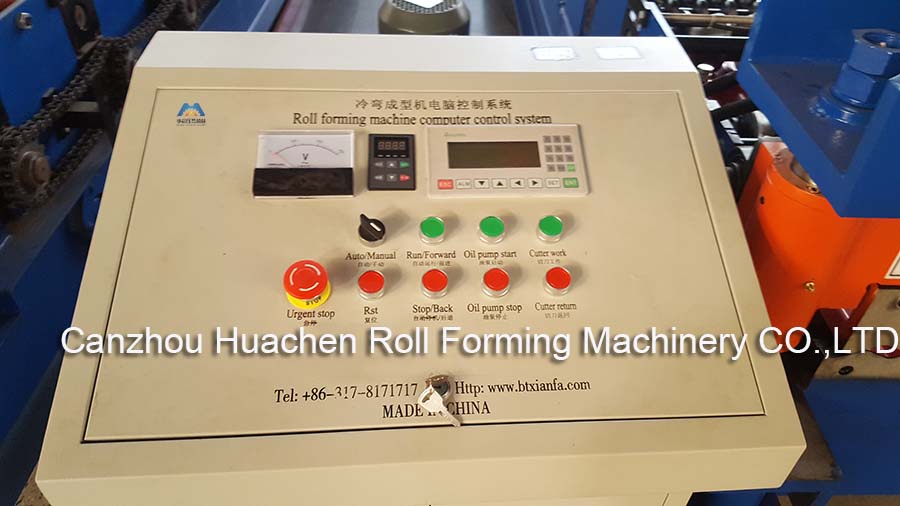

    Control


    1. Manually put colored steel coil into the feeding table.

    2, manually press the forward button on the top of the control box, this is the start of the operation of the equipment, until the plate out of the cutting knife part, stop pressing the forward button, press the cutting knife down, cut out the exposed part.

    3. Set the number of meters and sheets to be processed on the display screen, adjust the control to the automatic upper part, press the start button, and the device will automatically press the plate

    4. After each plate is cut off, manually remove the plate from the cutting edge
