    Toching Screen Roofing Sheet Making Machine Aluminium Roll Forming Machine 5.5Kw

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC30
    Certification : ISO
    Price : 8000-29000USD
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

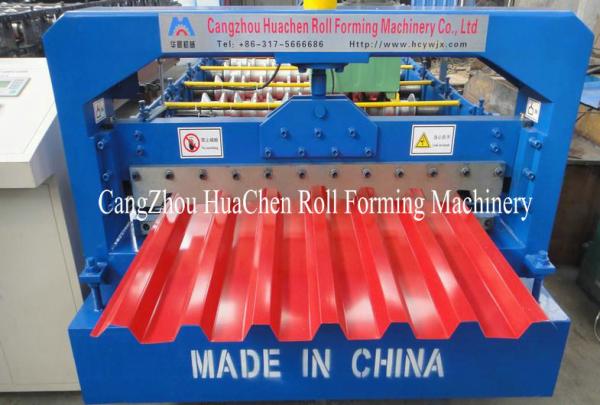

    Toching Screen Roofing Sheet Making Machine Aluminium Roll Forming Machine 5.5Kw

    Roofing Sheet Making Machine Aluminium Roll Forming Machine Application

    1. Specification of the material

    Suitable Material: Colored Steel plate, Galvanized steel

    Width of the raw material :1250mm

    Thickness :0.3-0.8mm

    2. Machine Detailed Parameters

    Roll Forming MachineHC30
    Machine structureGuide pillar structure
    Total power

    Motor power-5.5kw

    Hydraulic power-4kw

    Roller stationsAbout 13 stations
    Productivity0-15m/min
    Drive systemBy chain
    Diameter of shaft¢70mm solid shaft

    Voltage


    380V 50Hz 3phases (Customized)
    Color Of The MachineYellow and blue

    Container need


    40GP container
    Deliver Time70 days
    Terms Of Payment30%T/T 70% pay before shipment

    4. The Chart of Process Flow


    Manual Uncoiler—Pre-cutting—Roll Forming—Cutting—out table5.5KW Automatically Roof Sheet Roll Forming Machine 40GP Container


    5. Specification of Components

    (1) 5T Manual Un-coiler

    • Width of feeding: 1250mm
    • Capability: 5 Ton
    • Inter diameter: 500-590mm
    • Maximal out diameter: 1500mm
    • Mode of expand &fight: inner expand &fight by manual
    • Way of feeding: manual

    (2)Pre-cutting

    • Pre-cutting install after feeding for customer change coil only
    • Cutting type: manual
    • Function:for coil replacement
    • Quantity: 1

    (3) Main Roll Forming Machine

    • Roller material:ASTM1045 chrome plated surface with chrome
    • Shaft diameter: ¢70mm material: SAE1045 with quenching and tempering
    • Main frame by 350H beam welding
    • Machine structure: guide pillar

    (4) Mobile Protective mesh

    • ​To avoid accidents, the machine will be covered with the mobile protective mesh

    (5) Hydraulic cutting system

    • Cutting after forming: Cut the sheet after roll forming to required length
    • Uses two hydraulic cylinders for operation.
    • Material of blade:Cr12, 58-62 HRC hardness
    • Cutting power by hydraulic,4KW
    • Working pressure: 12Mpa adjustable
    • Length measuring: Automatic encoder length measuring
    • Tolerance of length: +/- 1.5mm for each piece end product

    (6) Computer Control Cabinet

    • Programmable setting of profile length and quantity
    • Operating system language: English and Chinese
    • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
    • PLC: Panasonic or customerization
    Toching Screen Roofing Sheet Making Machine Aluminium Roll Forming Machine 5.5KwToching Screen Roofing Sheet Making Machine Aluminium Roll Forming Machine 5.5KwToching Screen Roofing Sheet Making Machine Aluminium Roll Forming Machine 5.5Kw
