    Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC27-32
    Certification : ISO
    Price : 15000-29000USD
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment,
    Supply Ability : 20 sets/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness

    Automatic Roof Panel Roll Forming Machine Application

    Our Automatic Roof Panel Roll Forming Machine can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

    SPECIFICATIONS FOR Automatic Roof Panel Roll Forming Machine
    Main Roll Forming Machine
    Roller station12+15 rows
    Material of rollerHigh grade 45# forged steel plated with hard chrome plating
    Material of cutterCr12 mould steel with quenched treatment
    Material
    TypePPGI GI AL
    Material widthcustomized
    Material thickness0.3-0.6mm
    Others
    Speed20m/min
    PLC systemEURA or customized
    Weight5.6T

    Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness

    Automatic Roof Panel Roll Forming Machine Features

    We do high standard roll forming machine for export about 10 years.
    We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
    We have machines at more than 90 cuntries and regions,and keep good business relationship.
    we offer one year free warranty and free service for whole life of any machine.


    Certifications
    Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thicknessAutomatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thicknessAutomatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness

    Trapezoidal Roof Wall Panel Cold Roll Former​​ Parts

    Detailed Images

    5T Manual decoiler

    Dimensions: 1700*1000*800
    Width: 1250mm
    Inner Diameter: 450-508mm
    Capacity: 5T
    Quality: 1 set
    We also have Hydraulic type for 5T to 10 T .

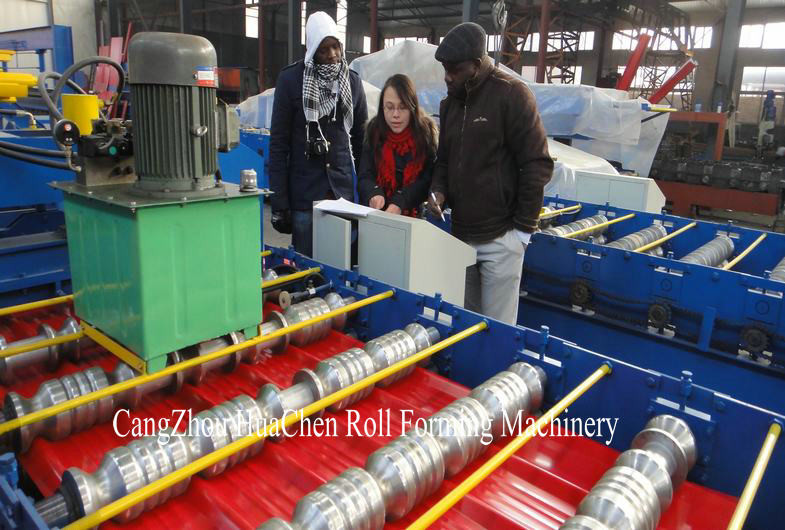

    Main Roll Former

    We have experieced workers to design the rollers as customized profile drawing , and adopts welded steel frame sturcture, AC frequency conversion motor reducer drive, chain transmission , to get strong machine for good finish products .

    Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness

    Hydraulic Pump Station

    Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
    PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

    PLC control system

    PLC Brand : EURA or Customized
    Language: English and Chinese
    Control panel: Button or Touch Sreen
    Frequency converter : EURA or customized
    HMI : Easy to operate

    Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness

    Hydraulic Cutting

    Forming and Cutting: Cut the sheet after roll forming to required length
    Material of blade: Cr12, 58-62 HRC hardness
    Hydraulic power : 4KW
    Length measuring : Automatic encoder length measuring
    Tolerance of length : +/- 1.5mm for each piece

    Out Put Table

    Size: 1500*1300*700mm
    Quantity: 2 sets
    We also have Auto stacker for automatic production line .


    Our Service


    Pre-Sales Service

    * Inquiry and consulting support.
    * Sample testing support.
    * View our Factory.

    After-Sales Service

    * Training how to instal the machine, training how to operate the machine.
    * Engineers available to service machinery overseas.


    Packing & Delivery

    Size: 11500 (L) * 1500 (W) * 1510 (H)
    Weight: 28T
    1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
    2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
    3.One set of machine needs a 40' container to shipping.


    Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness
