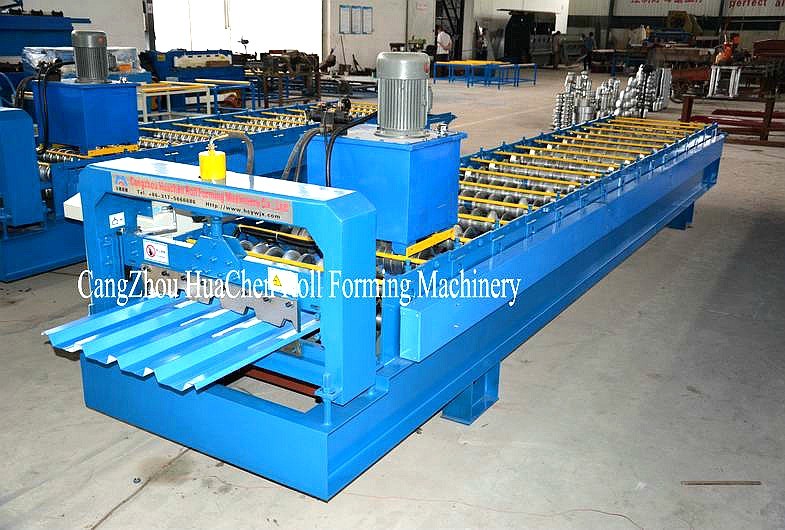

    Standard 686mm IBR Roofing Sheet Roll Forming Machine With PLC Control System

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC686
    Certification : ISO
    Price : 8000-29000USD
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Standard 686mm IBR Roofing Sheet Roll Forming Machine With PLC Control System

    Standard 686mm IBR Sheet Roll Forming Machine Application
    Machine Series

    1) wall & roof forming machine

    2) step tile. Ridge cap roll forming machine

    3) EPS/PU sandwich panel line

    4) C&Z purlin machine

    5) metal decking forming machine

    6) shutter door roll forming machine

    7) rain spout forming machine

    8) slitting line

    9) cut to length line

    10) guardrail roll forming machine


    Usage Of Roof Panel :

    The roofing panel machines can produce various of steel roof and wall panel, it is a new building materials,the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium,exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short buildi-ng period , beauty, light weight but high strength.


    Technical parameter


    Suitable materialcolor steel sheet;0.3-07mm,
    Working speedabout10-25m/min
    stress235MPa,345MPa,550MPa.
    PowerMain motor power: 5.5 Kw(Depend on final design)
    Hydraulic station power: 4Kw(Depend on final design)
    Material of forming rollersNo.45 steel, plated with chrome on surface.
    Material of cutter,pressing dieCr12 mould steel with quench treatment, HRC58-60
    Material of shaftHigh quality 45# steel, Roller grinder milling.
    Shaft diameter72mm
    Controlling systemMitsubishi PLC & converter
    Total weight of machineAbout 9500KGS
    Machine’s sizeabout 18m×1.8m× 1.5m (Depend on final design)

    Layout drawing of machine


    Customized Metal Roofing Roll Forming Machine Color Coated Surface Treatment

    Standard 686mm IBR Roofing Sheet Roll Forming Machine With PLC Control SystemStandard 686mm IBR Roofing Sheet Roll Forming Machine With PLC Control SystemStandard 686mm IBR Roofing Sheet Roll Forming Machine With PLC Control System
