    1250 mm Galvanized Sheet Metal Roll Forming Machines 5.5kw Power

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC17
    Certification : ISO
    Price : 8000-29000USD
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

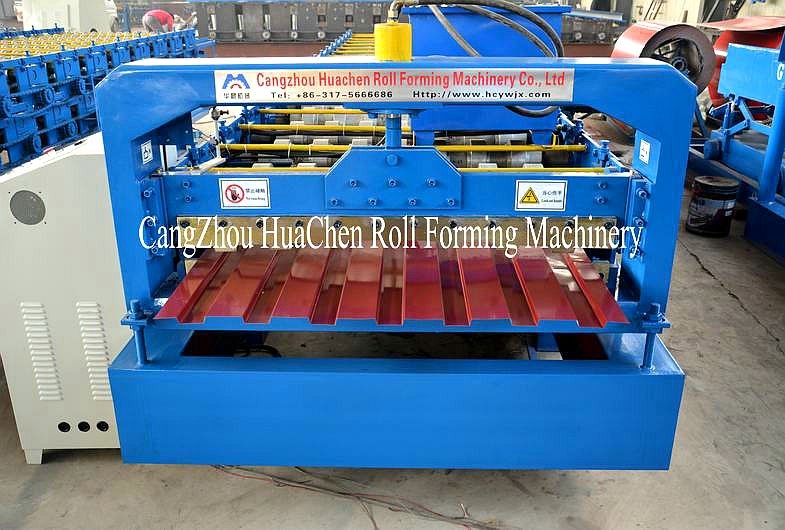

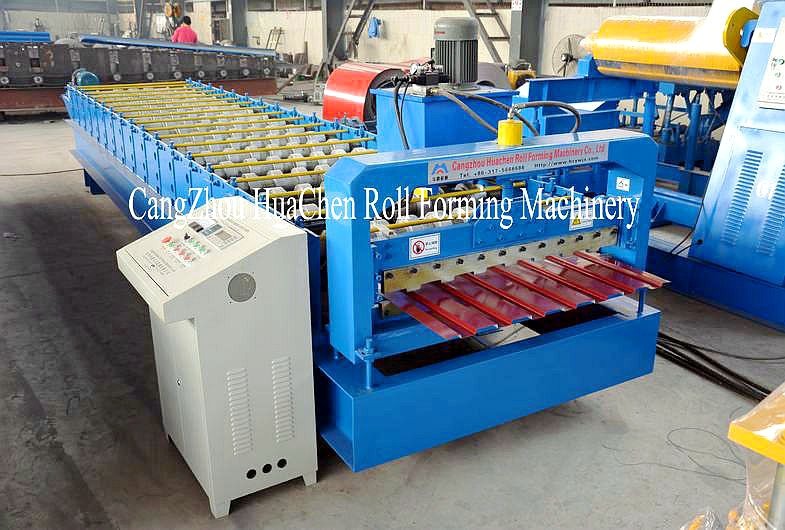

    1250 mm Galvanized Sheet Metal Roll Forming Machines 5.5kw Power

    1250 mm Galvanized Sheet Metal Roll Forming Machines 5.5kw Power

    Introduction


    This cameroon aluminium zinc roof sheets roll forming machine adopts Mitsubishi PLC control system, so the operator can set parameters like sheet quantity, sheet length into the touching screen, then this machine will produce corrugated galvalume roof sheets automatically. The corrugated zinc steel roofing sheets manufactured by this roll forming machine is to give a strong and reliable ability that can perform in serious outdoor conditions. With a different thickness, these sheets are best suited for domestic roofing and walling, and are available in a range of lengths to suit roofer's needs. The versatile corrugated profile can reflect both modern and traditional architecture depending on the application.

    Corrugated profile
    Suitable for roofing and walling
    762mm coverage width after overlap
    High quality Steel construction
    Available in a range of lengths


    Technical Specifications Cameroun Alu-zinc Roof Sheet Corrugating Machine

    Technical ItemsDetails
    Raw MaterialTypeAluminium & Steel Coils, PPGI, GI, PPGL
    Width1200 mm
    Thickness0.15-0.30 mm or 0.30-0.70mm
    Yield Strength235-345 MPa or specially designed for 550 MPa
    Finished ProductsCover width1050 mm
    LengthAdjustable
    Required PowerVoltage220V/380V/415V/440V
    Driving Motor5.5 KW
    Cutting Motor2.2 KW
    Production Speed900-1200 meters per hour
    Coil DecoilerTypeUn-powered or Powered
    Capacity5 tons
    Rolling Stations15 sets
    Rolling Shaft Diameter72 mm
    Cutting TypePost-cutting
    Operation SystemMitsubishi PLC, transducer and touching screen
    Supporting Tables2 sets
    Machine SizeAround 8.5 x 1.6 x 1.5 meters
    Machine WeightAround 7.8 tons


    Main Components Cameroun Alu-zinc Roof Sheet Corrugating Machine

    No.ItemsQuantity
    1Coil Decoiler1 set
    2Roll Former MachineDirection Guilder1 set
    Rolling System1 set
    Post-cutting Device1 set
    3Supporting Tables for Finished Products2 sets
    4Hydraulic Station for Cutting Device1 set
    5PLC Control Cabinet1 set
    6Tools Box with Spare Parts1 set

    Applications:


    With the timeless appeal of a corrugated profile, cladding is a strong and versatile roofing, walling and fencing material. It complements both contemporary and traditional architecture. It is available in long lengths and a range of thicknesses.
