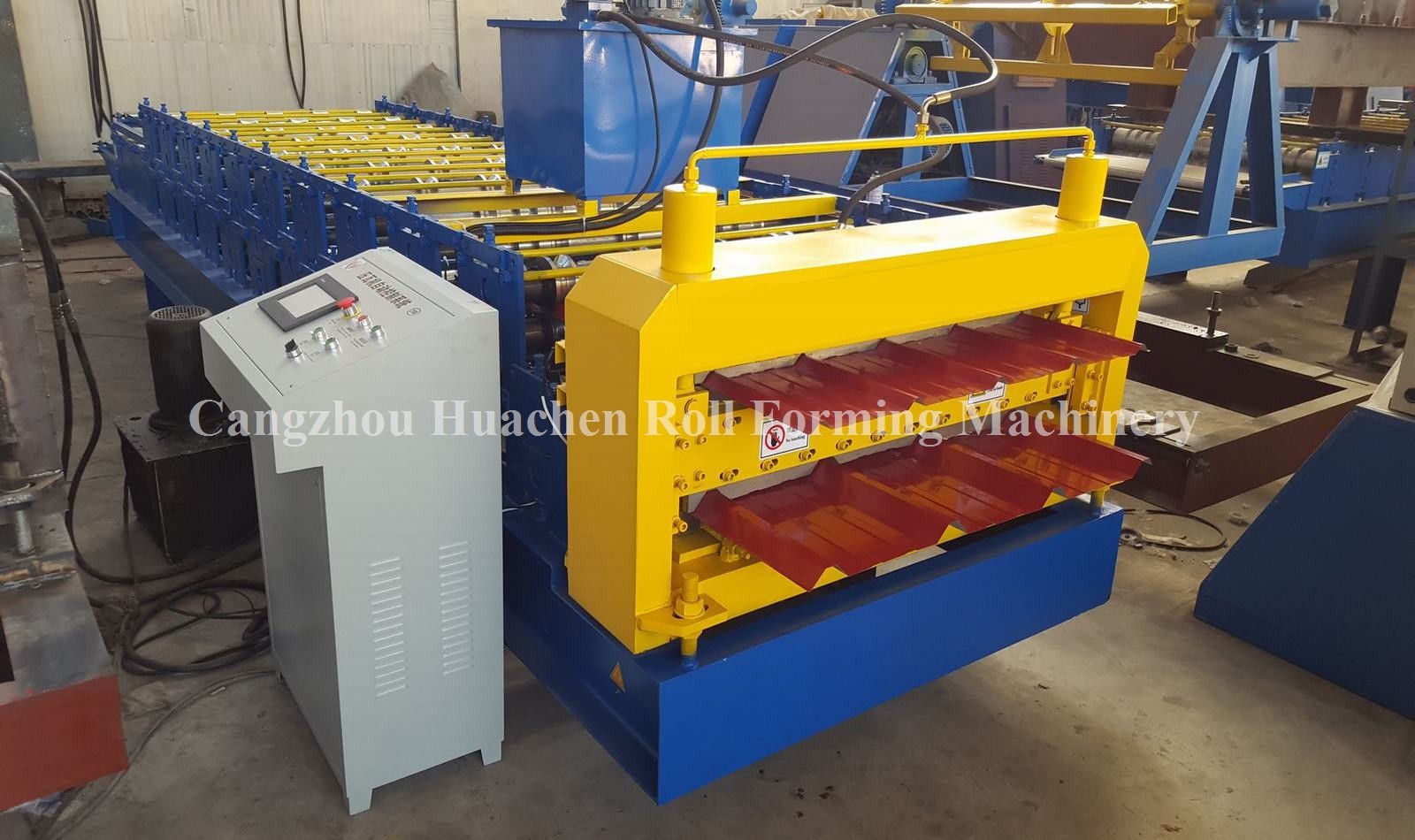

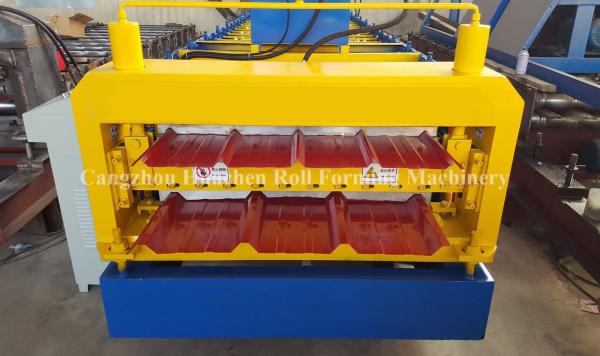

    18 Forming Stations Double Layer Roll Forming Machine For Metal Roof Wall Panels

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC19-30
    Certification : ISO/CE
    Price : 15000-39000USD
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    18 Forming Stations Double Layer Roll Forming Machine For Metal Roof Wall Panels


    18 Forming Stations Double Layer Roll Forming Machine For Metal Roof Wall Panels

    Quick details:


    1. Warranty: 12 months, After-sales Service Provided: Engineers available to service machinery overseas

    2. The color of machine: depend on your required

    3. Feeding Material: color steel coils, Payment terms: T/T L/C


    Description


    This kind of machine has the best quality and the best price. It has accurate measurement and easy operating. We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.


    Characteristic of Double Layer Roll Forming Machine

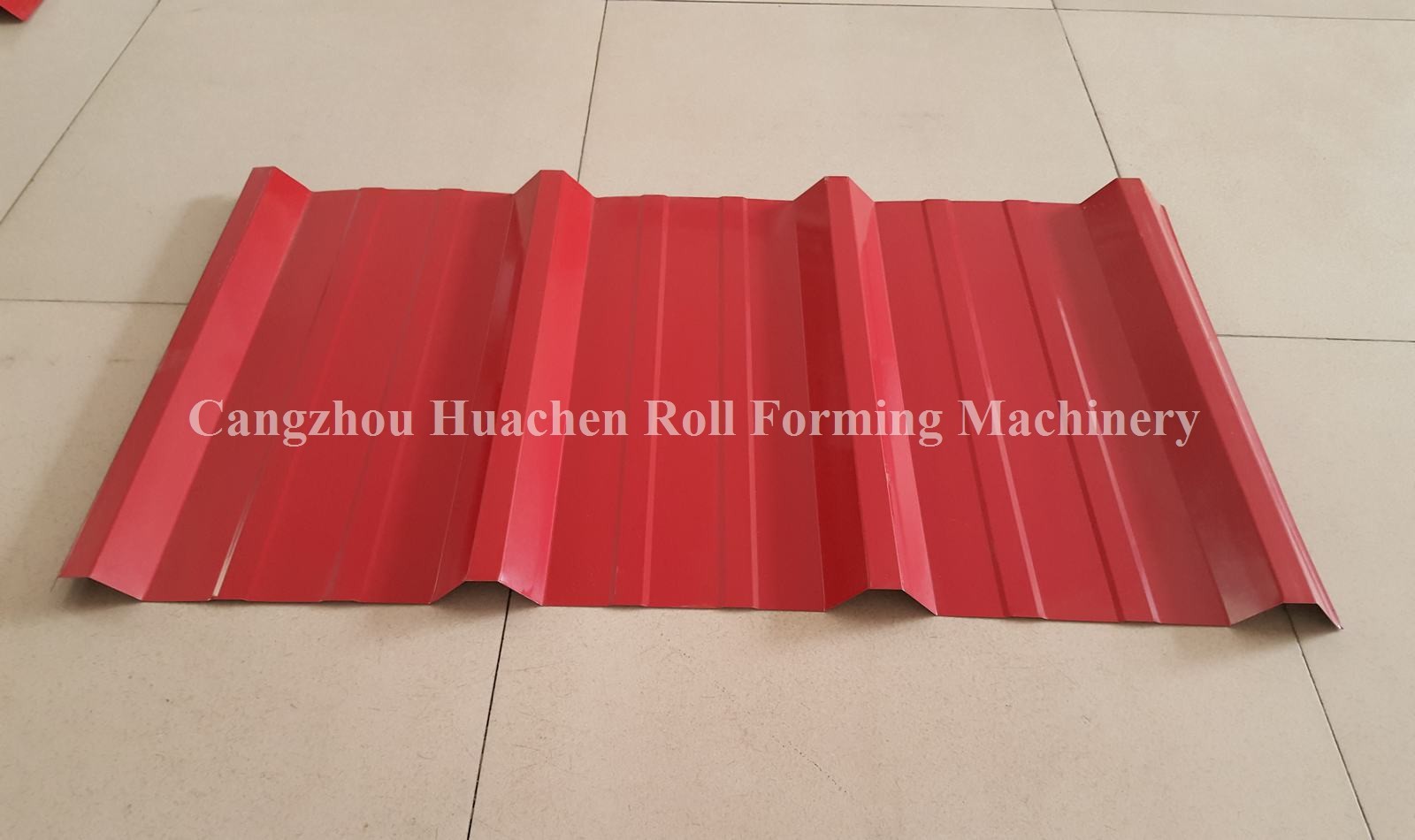

    1.This Joint Hidden Double Layer Roll Forming Machine can roll form metal roof panels. After roll formed by this Double Layer forming machine, the surface of metal roofing is very smooth and beautiful without any scratch on the surface of roofing.

    2.The Double Layer Roll Forming Machine is with fully automatic control system with PLC.

    3.Easy operation: Key in the length and quantity on the control panel.

    4.We also can do a custom roll forming machine, we can design machine according to your specifications and profile drawings.

    18 Forming Stations Double Layer Roll Forming Machine For Metal Roof Wall Panels18 Forming Stations Double Layer Roll Forming Machine For Metal Roof Wall Panels18 Forming Stations Double Layer Roll Forming Machine For Metal Roof Wall Panels

    Specifications


    ItemDouble Layer Roll Forming Machine
    Cutting SystemCutting typeHydraulic cutting
    Cutting Die MaterialCr12Mov steel, HRC58-62
    Cutting power3KW
    CuttingTolerance10m+/-1.5mm
    EncoderOMRON Brand
    Electrical Control BoxPLCPANASONIC Brand
    InverterYASKAWA Brand
    Touch screenPANASONICE
    Operation typeTouch screen & Button
    Hydraulic StationHydraulic stationFamous Chinese brand
    Support TablesTable typeSimple nonpower type
    FunctionTo support the finished panels

    Main Components


    Decoiler / Uncoiler1 Unit
    Feeding Guide1 Unit
    Double Layer Roll Forming Machine1 Unit
    Hydraulic Cutting Device1 Unit
    Hydraulic Station1 Unit
    PLC Computer Control Board1 Unit
    Runout Tables2 Units

    Working Flow


    Decoiler ---> Fedding Guide ---> Roll Forming ---> Cut-to-length ---> Run out table


    Application


    Construction, Store Fixture, Metal roof wall cladding, roof wall panel, Metal Roof sheet, trapezoidal roof metal, trapezoidal roofing, trapezoidal panel, corrugated roofing, corrugated panel, metal roof; steel roof.


    Advantages


    1. We can make and design all kinds of roll forming machine according to customer’s requests.

    2. This is a very perfect and durable equipment. We have more than 13 years experiences.

    3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
