    High Speed Roof Sheet / Wall Panel Roll Forming Machine With Chain Drive PLC Control

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC12
    Certification : ISO
    Price : 8000-29000USD
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    High Speed Roof Sheet / Wall Panel Roll Forming Machine With Chain Drive PLC Control

    High Speed Roof Sheet / Wall Panel Roll Forming Machine With Chain Drive PLC Control


    Quick Detail:

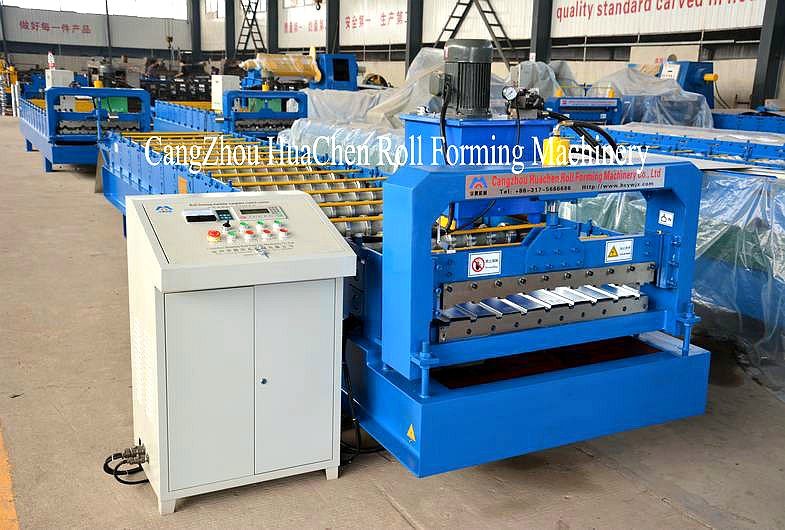

    Composition


    This wall panel roll forming machine consists of several parts, as listed below.

    1. 5T decoiler
    2. roll forming machine
    3. Hydraulic shear
    4. Hydraulic station
    5. PLC control cabinet
    6. run out table


    Working process:

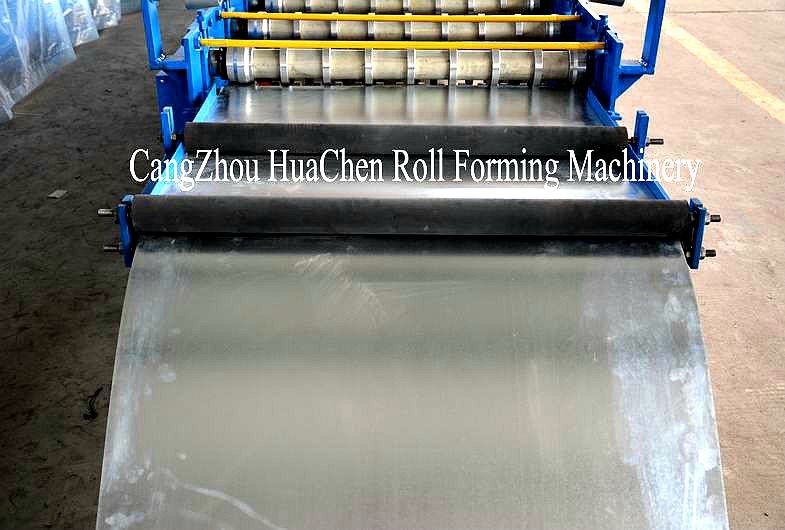

    Passive decoiling → guided material feeding → roll forming → cut-to-length → run out


    Description:


    The wall panel roll forming machine is designed to make favored wall panels that are used to build walls of many industrial and civilian constructions around the world, including workshop, warehouse, hangar, gymnasium, theatre, exhibition hall, engine house, etc.


    Applications:

    1. workshop
    2. warehouse
    3. hangar
    4. gymnasium
    5. theatre
    6. exhibition hall
    7. engine house
    8. industrial buiding
    9. civilian buiding

    Specifications


    ModelNote
    Applicable materialColor plate, galvanized sheet, galvalume plate and aluminum sheetThis machine is customizable upon each customer's requirements and the characteristics of processed material.
    Feeding width1000mm
    Processing thickness0.4mm - 0.8mm
    Roller material45# steel coated with hard chrome
    Main motor power / hydraulic station power5.5kW / 3kWThese parameters can be set according to the required production capacity.
    Forming passes16
    Forming speed5-15m/minute
    Machine dimensions7.6×1.3×1.2m
    Machine weight3.8T

    High Speed Roof Sheet / Wall Panel Roll Forming Machine With Chain Drive PLC ControlHigh Speed Roof Sheet / Wall Panel Roll Forming Machine With Chain Drive PLC ControlHigh Speed Roof Sheet / Wall Panel Roll Forming Machine With Chain Drive PLC ControlHigh Speed Roof Sheet / Wall Panel Roll Forming Machine With Chain Drive PLC Control

    Competitive Advantage:


    1. The finished panel has small depth and large pitch. Thus, it is relatively easier to manufacture this machine, and the price is moderate.

    2. The wall panel itself has reinforcing rib, and corrugation is not generated during production. Its mechanical strength makes it suitable for general use.

    3. There is no need to redesign the wall panel roll forming machine, so the production cycle is reduced greatly. In addition, customized products are also available if relevant drawings and requirements are provided.
