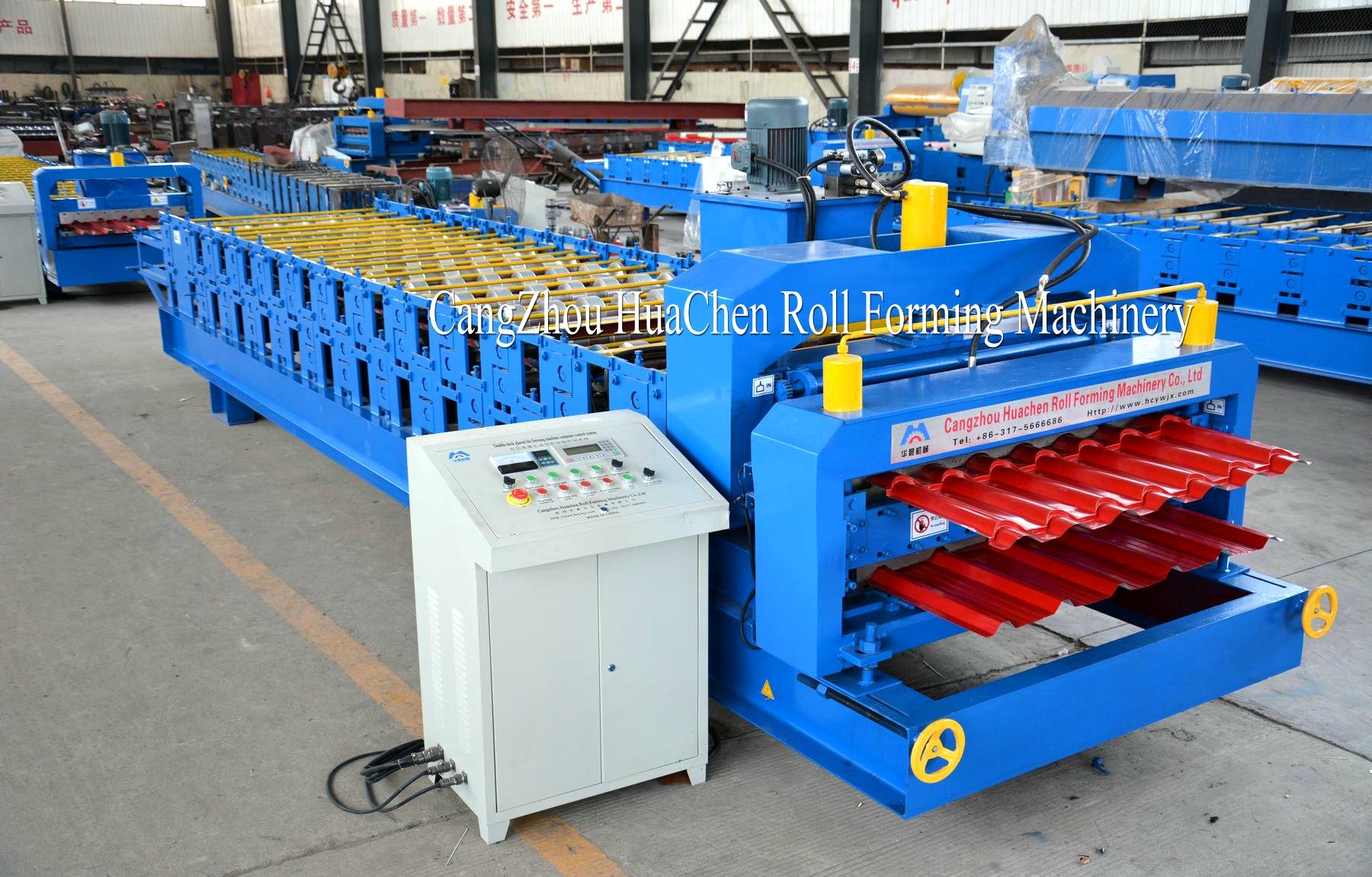

    Corrugated Iron cold roll forming equipment , Concrete Roof Tile making Machine

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC26-25
    Certification : ISO/CE
    Price : 15000-39000USD
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Corrugated Iron cold roll forming equipment , Concrete Roof Tile making Machine

    Corrugated Iron cold roll forming equipment , Concrete Roof Tile making Machine


    Product Description

    1.. corrugated Iron roof making machine double layer roll forming machine roof tile making machine Processing technique and deployment

    corrugated Iron roof making machine double layer roll forming machine roof tile making machine by the uncoiling,feeding, leveling,roll forming,shearing, production, Production of color plate appearance of smooth beautiful paint pattern uniform, high strength, durable, widely used in industrial and civil buildings, such as factories, warehouses, stadiums, exhibition halls, theaters and other room surfaces and walls.

    User parameters: the number of sheets, the length of the first section, distal, pitch, number of sections, pre-press section, and so on.


    2. corrugated Iron roof making machine double layer roll forming machine roof tile making machineComponents of line:

    No.NameUnitQty
    1Decoilerset1
    2Main Machine for roll formingset1
    3Control System(PLC)set1
    4Pressing Systemset1
    5Cutting Systemset1
    6Output Tableset1

    3. corrugated Iron roof making machine double layer roll forming machine roof tile making machine parameters

    corrugated Iron roof making machine double layer roll forming machine roof tile making machine DescriptionIntroduction
    Working efficiency

    8-12m/min


    Thickness of Material

    0.3--0.8mm

    (can be changed according to customers need)


    Width of material

    914mm;940mm;1000mm;1200mm;1220mm;1250mm

    According to customers need


    Control system

    PLC(The brand can be choose)


    Uncoiler system

    5Ton Manual Operation(1250mm width)


    Forming by rolling

    13 rows

    (According to the machine design)


    Roller material

    GCR15 Aluminium processing after quenchin HRC58-62°C,Chrome plated


    Shaft and the diameter of axle

    45#Aluminium-processing ,diameter of axle=80mm


    Main part power

    5.5kw


    Hydraulic motor power

    4kw


    Hydraulic pressure

    12Mpa


    Scissor material

    Cr12Mov, herd steel HRC 58-62°C


    length tolerance

    ±1.5mm


    voltage

    380V, 50HZ,3 phase

    (adjustable by customer needs)


    Frame form

    Middle plate


    Driving Method

    Chain


    Color

    Yellow and blue(adjustable)


    Size

    length*Width*Height - 8.2*1.65*1.5m


    weight

    about 5.0T


    Package

    Nude package in 1*20GP container


    Delivery date

    30 working days


    Payment Method

    30% T/T in advance and balance

    70% after inspection confirmation before shipment.


    If you have your own drawing, please send it to us,

    we can design the machine, depend on your drawing.



    Corrugated Iron cold roll forming equipment , Concrete Roof Tile making MachineCorrugated Iron cold roll forming equipment , Concrete Roof Tile making Machine
