CE Approvals Double Layer Roll Forming Machine For Metal Deck And Steel Tile

    Buy cheap CE Approvals Double Layer Roll Forming Machine For Metal Deck And Steel Tile from wholesalers

    Buy cheap CE Approvals Double Layer Roll Forming Machine For Metal Deck And Steel Tile from wholesalers
    • Buy cheap CE Approvals Double Layer Roll Forming Machine For Metal Deck And Steel Tile from wholesalers

    CE Approvals Double Layer Roll Forming Machine For Metal Deck And Steel Tile

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC28-13
    Certification : CE/ISO9001
    Price : 15000-39000USD
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    CE Approvals Double Layer Roll Forming Machine For Metal Deck And Steel Tile


    CE Approvals Double Layer Roll Forming Machine For Metal Deck And Steel Tile

    Machine’s Feature: One machine can make two kinds of profile. Client’s profile available.


    Technical data of double layer roll forming machine

    Suitable materialQ235 color steel sheet;0.3-0.7mm,
    Forming speedabout 20m/min
    Power RequirementMain motor power: 7.5 Kw(Depend on final design)
    Hydraulic station power: 2.2Kw(Depend on final design)
    Material of forming rollersNo.45 steel, plated with chrome on sureface.
    Material of cutterCr12 mould steel with quench treatment, HRC58-60
    Material of shaft

    High quality 45# steel with heat treatment.

    Roller grinder milling.

    Shaft diameter72mm
    Controlling systemMitsubishi PLC & converter
    Total weight of machineAbout 6500KGS
    Machine’s sizeabout 7.5m×1.8m× 1.5m (Depend on final design)
    Shipping1x40GP can load one machine

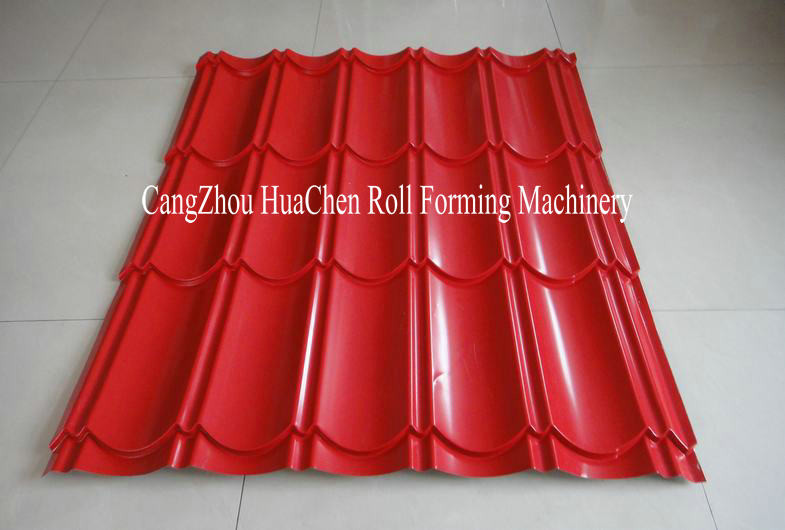

    Product application of double layer roll forming machine:

    The product from this roll forming machine are widely used roof or wall of fabrication building, such as the roof of garden, factory, hotel, exhibition center and villa,etc.

    CE Approvals Double Layer Roll Forming Machine For Metal Deck And Steel Tile

    CE Approvals Double Layer Roll Forming Machine For Metal Deck And Steel TileCE Approvals Double Layer Roll Forming Machine For Metal Deck And Steel Tile


    Our Metal Double layer Roll Forming Machine’s advantages


    1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .


    2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.


    3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.


    4. High precision: shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.


    5. People originate: introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.


    6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.


    7. All-in-house source: We are "All-in-house source" factory to ensure quality and delivery of your machines.


    8. Long life: Ensure you our produce machine’s lifetime more than 15 years.


    Certificate: ISO 9001, CE,
