Hi Rib Trapezoidal Wall Panel Roll Forming Machine , roof sheet forming machine

    Buy cheap Hi Rib Trapezoidal Wall Panel Roll Forming Machine , roof sheet forming machine from wholesalers

    Buy cheap Hi Rib Trapezoidal Wall Panel Roll Forming Machine , roof sheet forming machine from wholesalers
    • Buy cheap Hi Rib Trapezoidal Wall Panel Roll Forming Machine , roof sheet forming machine from wholesalers

    Hi Rib Trapezoidal Wall Panel Roll Forming Machine , roof sheet forming machine

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC8
    Certification : ISO
    Price : 8000-19000USD
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Hi Rib Trapezoidal Wall Panel Roll Forming Machine , roof sheet forming machine


    Hi Rib Trapezoidal Wall Panel Roll Forming Machine , roof sheet forming machine


    Technical Specifications of Trapezoidal Roof Wall Panel Roll Forming Machine


    ItemTrapezoidal Roof Wall Panel Roll Forming Machine
    Coil MaterialThickness0.3-0.8mm
    Coil widthCustom-made, 1000mm or 1200mm or 1250mm
    Yield Strength250-350 Mpa
    MaterialPPGI, Color Steel, GI.
    Decoiler / UncoilerDecoiler TypeManual or Hydraulic or Auto Type
    Coil WidthMax. 1250mm
    I.D508-610mm
    O.DMax. 1500mm
    Trapezoidal Roof Roll Forming MachineForming Stations18 Stations ( Depend on Profiles )
    Roller material45# steel, surface coated with 0.05mm hard chrome
    Diameter of shaft76mm
    Shaft materialHigh grade 45# steel
    Drive typeChain transmission
    Forming speed0-15m/min, adjustable
    Main power5.5KW
    CuttingCutting typeHydraulic cutting
    Cutting Die MaterialCr12Mov steel, HRC58-62
    Cutting power3KW
    CuttingTolerance10m+/-1.5mm
    EncoderOMRON Brand
    Electrical controlPLCPANASONIC Brand
    InverterYASKAWA Brand
    Touch screenPANASONICE
    Operation typeTouch screen & Button
    Hydraulic StationHydraulic stationFamous Chinese brand
    Runout TableTable typeSimple nonpower type
    FunctionTo support the finished panels

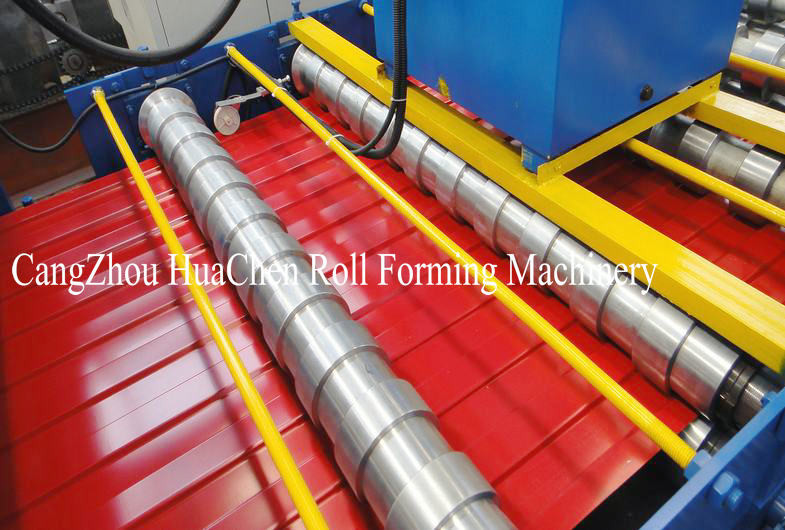

    Hi Rib Trapezoidal Wall Panel Roll Forming Machine , roof sheet forming machineHi Rib Trapezoidal Wall Panel Roll Forming Machine , roof sheet forming machineHi Rib Trapezoidal Wall Panel Roll Forming Machine , roof sheet forming machine

    Main Components of Trapezoidal Roof Wall Panel Roll Forming Machine


    Decoiler / Uncoiler1 Unit
    Feeding Guide1 Unit
    Main Trapezoidal Roof Roll Forming Machine1 Unit
    Hydraulic Cutting Device1 Unit
    Hydraulic Station1 Unit
    PLC Computer Control Board1 Unit
    Runout Table2 Units

    Applications


    Trapezoidal Roof Panel, Roof Wall Panel, Hi-rib Roof Panel, Metal roof wall cladding, roof wall panel, Metal Roof sheet, trapezoidal roof metal, trapezoidal roofing, metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding


    HUACHEN Advantage


    • High Quality
    • Reasonable Price
    • Good after Service
    • 1 Year Warranty
    • More Than 10 Years Experience
