High speed 0.4 - 0.8mm Thickness Wall Panel Roll Forming Machine For Garden , Hotel

    Buy cheap High speed 0.4 - 0.8mm Thickness Wall Panel Roll Forming Machine For Garden , Hotel from wholesalers

    Buy cheap High speed 0.4 - 0.8mm Thickness Wall Panel Roll Forming Machine For Garden , Hotel from wholesalers
    • Buy cheap High speed 0.4 - 0.8mm Thickness Wall Panel Roll Forming Machine For Garden , Hotel from wholesalers

    High speed 0.4 - 0.8mm Thickness Wall Panel Roll Forming Machine For Garden , Hotel

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC18
    Certification : ISO
    Price : 8000-19000USD
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    High speed 0.4 - 0.8mm Thickness Wall Panel Roll Forming Machine For Garden , Hotel


    High speed 0.4 - 0.8mm Thickness Wall Panel Roll Forming Machine For Garden , Hotel

    Features


    The wall panel forming machine features high speed, high production, good performance, low labor and is economical. This roll former is the best choice for producing the metal sheet cold roll forming products.

    Application


    Our wall panel roll forming machine produces different kinds of wall panels. The roll formed panels are primarily used in temporary building sites, steel structure workshops, and other public buildings and feature fast construction speed. Our wall panels are durable, have an attractive appearance, etc.


    Flow Chart


    Decoiling the sheet---Guiding the sheet---Roll forming---Measuring the length---Cutting the sheet---on the output table


    Machine Placement and Operator


    The wall panel forming machine should be placed on an even cement floor and lifted with a lifting device with a lifting capacity not less than five tons. The machine requires space for storing materials and laying the machine and enough room for it to operate. The roll forming machine requires one operator and one porter.


    Components of Wall Panel Roll Forming Machine


    Guiding Table1 set
    Manual Decoiler1 set
    Main Forming Machine1 set
    PLC Control System1 set
    Hydraulic Cutting Station1 set
    Output Table1 set

    Parameters of wall panel roll forming machine


    ItemDescription
    Material Width1000mm
    Material Thickness0.3mm-0.8mm
    MaterialPPGI GI
    Yield Stress235Mpa
    Material of Roller45# steel plated hard chromium 0.05mm
    Diameter of Shaft70mm
    VoltageAC380v/50hz or per customer's requirement
    Motor Power4kw
    Hydraulic Power3kw
    Stand13
    Control SystemMitsubishi PLC frequency conversion
    Hydraulic Cutting MaterialCr12 heat treatment
    Speed8-15m/min
    Decoiler5 tons manual or hydraulic

    C18

    ItemDescription
    Material Width1250mm
    Material Thickness0.3mm-0.8mm
    MaterialPPGI GI
    Yield Stress235Mpa
    Material of Roller45# steel plated hard chromium 0.05mm
    Diameter of Shaft70mm
    VoltageAC380v/50hz or per customer's requirement
    Motor Power4kw
    Hydraulic Power3kw
    Precision10m±2mm
    Control SystemMitsubishi PLC frequency conversion
    Hydraulic Cutting MaterialCr12 heat treatment
    Speed8-15m/min
    Decoiler5 tons manual or hydraulic

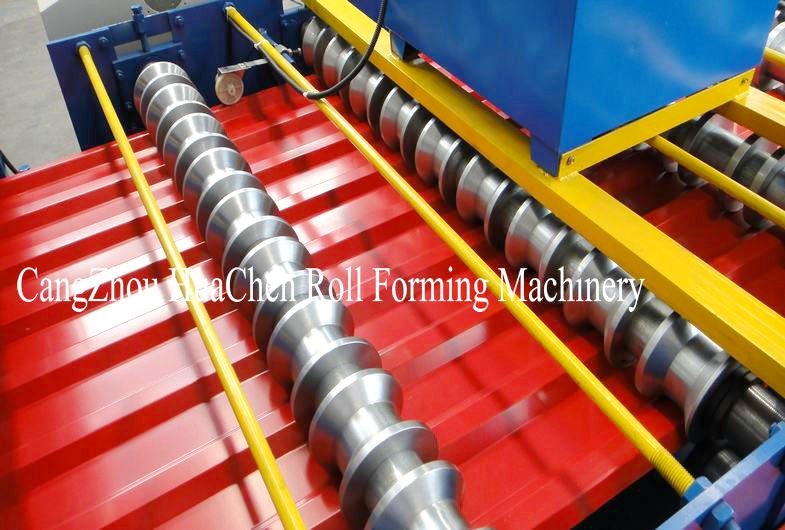

    High speed 0.4 - 0.8mm Thickness Wall Panel Roll Forming Machine For Garden , HotelHigh speed 0.4 - 0.8mm Thickness Wall Panel Roll Forming Machine For Garden , Hotel


    Our advantage


    We are a China-based wall panel forming machine manufacturer and supplier. Through our years of experience and continued efforts of our dedicated staff, we offer customers a great variety of roll forming machines, like double layer forming machines, tile forming machines, wall panel forming machines, sandwich panel production lines, and others. Our location in Wuxi City gives us easy access to convenient air, land and sea transportation. This keeps our costs down, and reduces transportation costs for our customers.
    If you have a need for any of our products, please feel free to contact us at We . We look forward to working with you.
