    Aluminium Metcopo Step Tile Roof Sheet roll forming line , Rollform Equipment


    Aluminium Metcopo Step Tile Roof Sheet roll forming line , Rollform Equipment


    General Introduction


    The aluminum metcoppo steptiles roof sheets made by this aluminium corrugating machine is a new tile model compared with the normal step tile roof sheets. The whole aluminum metcopo stepped tile roofing sheets production line consists of 5 tons automatic electric decoiler, sheet guilder, corrugation machine, hydraulic cutter, supporting tables and Mitsubishi PLC controller. With this rolling machine, the operator can produce metcopo steptiles with any length.


    Application

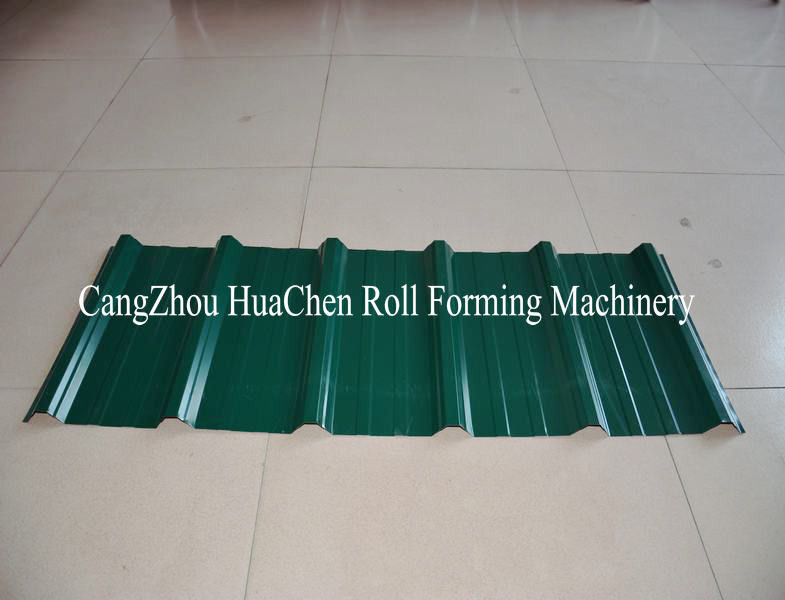

    Aluminium Metcopo Step Tile Roof Sheet Forming Machine Rollform Equipment


    Technical Parameters of Alluminium Metcopo Step Tile Corrugating Machine


    (1) processing material: Aluzinc/galvanized steel/colored steel coil
    (2) material thickness: 0.4-0.6mm
    (3) effective width: 930mm
    (4) feeding width: 1200mm
    (5) main motor power: 5.5 kw
    (6) pump power: 5.5 kw
    (7) shaft diameter: 72 mm
    (8) forming steps: 18 steps
    (9) roller material: 45# forged steel with hard chrome plating

    (10) cutting blades material: Cr12 mould steel
    (11) main frame: H steel beams
    (12) wall plate thickness: 16mm
    (13) control system: Mitsubishi PLC computer control with inverter
    (14) power supply: 380v/3 phase/50hz or designed according to customers' requirement


    Main Components of Metcopo Step Tiles Corrugating Machine:

    • Uncoiler
    • Coil Sheet Guiding and Adjusting Equipment
    • Film Covered Device
    • Main Corrugation System
    • Post-Cutting Device
    • Hydraulic Station for Cutting and Step Pressing
    • PLC Control System
    • Support Tables

    Working Flow of Metcopo Steptile Corrugation Machine


    Decoiling Sheet---Guiding Sheet---Covering Film---Roll Forming---Measuring The Length---Cutting Sheet---Runout Tables
