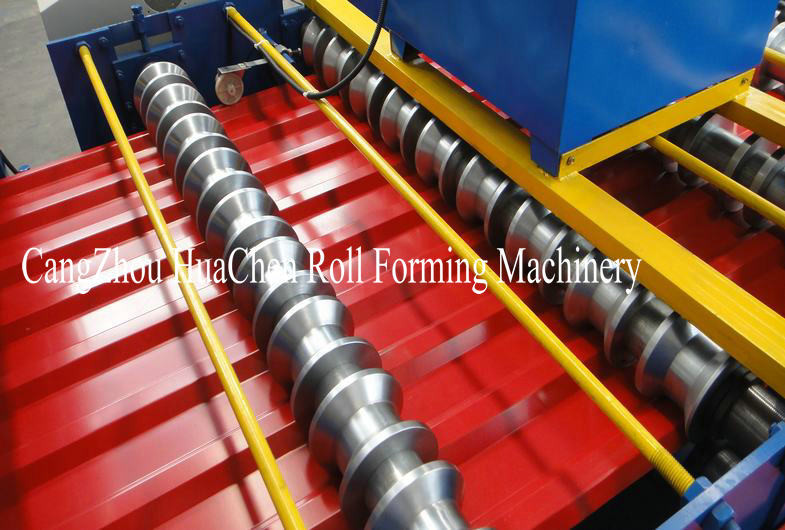

    Colors Metal Tile Roofing Sheet Roll Forming Machine For Building Wall And Roof

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC12
    Certification : ISO
    Price : 8000-29000USD
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Colors Metal Tile Roofing Sheet Roll Forming Machine For Building Wall And Roof

    Colors Metal Tile Roofing Sheet Roll Forming Machine For Building Wall And Roof


    Technical data of steel corrgated roll forming machine

    Suitable materialcolor steel sheet;0.3-07mm,
    Working speedabout10-25m/min
    stress235MPa,345MPa,550MPa.
    PowerMain motor power: 5.5 Kw(Depend on final design)
    Hydraulic station power: 4Kw(Depend on final design)
    Material of forming rollersNo.45 steel, plated with chrome on surface.
    Material of cutter,pressing dieCr12 mould steel with quench treatment, HRC58-60
    Material of shaftHigh quality 45# steel, Roller grinder milling.
    Shaft diameter72mm
    Controlling systemMitsubishi PLC & converter
    Total weight of machineAbout 9500KGS
    Machine’s sizeabout 18m×1.8m× 1.5m (Depend on final design)

    Colors Metal Tile Roofing Sheet Roll Forming Machine For Building Wall And RoofColors Metal Tile Roofing Sheet Roll Forming Machine For Building Wall And Roof

    Layout drawing of machine


    Colors Metal Sheet Roof Tile Roll Forming Machine For Building Wall And Roof


    Our Roll Forming Machine’s advantages


    1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong


    2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.


    3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.


    4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.


    5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.


    6. powerful driving system: big inch train,or gear box driving system.


    6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.


    producing process:


    We can also customize the products according to customer ' s requirements
