5.5kw Cold Roll Forming Machine For Light Steel / Metal Stud / Keel Framing

    Buy cheap 5.5kw Cold Roll Forming Machine For Light Steel / Metal Stud / Keel Framing from wholesalers

    Buy cheap 5.5kw Cold Roll Forming Machine For Light Steel / Metal Stud / Keel Framing from wholesalers
    • Buy cheap 5.5kw Cold Roll Forming Machine For Light Steel / Metal Stud / Keel Framing from wholesalers

    5.5kw Cold Roll Forming Machine For Light Steel / Metal Stud / Keel Framing

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC-Stud
    Certification : ISO
    Price :
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    5.5kw Cold Roll Forming Machine For Light Steel / Metal Stud / Keel Framing

    5.5Kw Cold Roll Forming Machine For Light Steel / Metal Stud / Keel Framing

    NOTE: The C Stud and U Track can make on one machine. The quotation I offer is the high speed type, the speed can reach 60m/min.

    5.5kw Cold Roll Forming Machine For Light Steel / Metal Stud / Keel Framing5.5kw Cold Roll Forming Machine For Light Steel / Metal Stud / Keel Framing5.5kw Cold Roll Forming Machine For Light Steel / Metal Stud / Keel Framing


    A Technical specification

    Control SystemPLC Colored Touch Screen
    Main Frame18mm steel welding
    Main Power5.5kw
    Power Supply380V, 3-Phase,50Hz or any
    Forming Speed60m/min
    Roll Station10 stands
    Shaft Diameter42 mm
    Feeding Thickness0.3-0.8mm
    Cutter StandardGCr12
    Roller Standard45# Plating Cr

    Light steel metal stud keel framing machine roll forming machine


    c channel roll forming machine


    2. Technical parameters:


    Technical parameters:
    1Name of commodity & specificationc stud roll forming machine
    2Main motor power3kw, 3 phase
    3Hydraulic motor power3kw
    4Hydraulic Pressure10-12MPa
    5Voltage380V /3phase/ 50 HZ (or as your requirement)
    6Control SystemPLC Delta Inverter
    7Main Frame300mm H-Beam
    8Backboard Thickness14mm
    9Chain Size20mm
    10Feeding Materialcolor steel coils
    11Feeding Thickness0.3-1.2mm
    12Productivity8-12m/min
    13Roll Station11
    14Roller Diameter70mm
    15Roller material45# steel
    16Cutter materialCr12 , quenched
    17Cr-Plating Size0.05mm
    18Overall Size3000×800×1000mm
    19Total Weight2T
    20ComponentsManual Uncoiler-------------------1 set
    Guiding Platform------------------1 set
    Coil Strip Leveler------------------1 set
    Main Machine of Roll Forming------1 set
    Electric-Motor---------------------1 set
    Cutting Device--------------------1 set
    Hydraulic Station------------------1 set
    PLC Control-----------------------1 set
    Supporter Table-------------------1 set

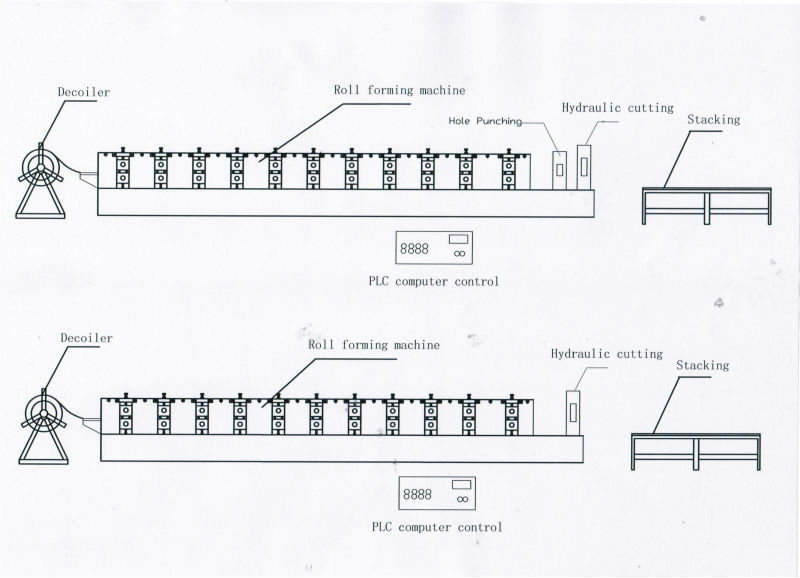

    21WorkflowManual decoiling----feeding and guiding----roll forming----cut to length----run out table
    22Packagenude in the container
    23Minimum order quantity1 set
    24Payment termsT/T(30% T/T pay in advance, the remaining 70% pay before ship)
    25Delivery time30 working days later after receiving the deposit
    All technical parameters can be changed, according to user's need.
