    Royal Roman Longtile Roll Forming Machine

    Ask Lasest Price
    Brand Name : HC
    Model Number : Roll Forming Machine
    Certification : ISO/CE
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

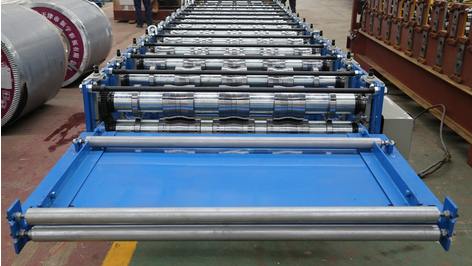

    Royal Roman Longtile Roll Forming Machine

    Royal Roman Longtile Roll Forming Machine

    Profile drawing

    Royal Roman Longtile Roll Forming Machine

    1. Details of Roof tile Roll Forming Machine

    Material
    Material Thickness(&):0.4 - 0.8mm
    Applicable material:Galvanized Steel Coils, Hot Rolled Coils,Cold Rolled Coils,yield strength 245Mpa or 550Mpa
    Machine Components
    1)7Ton*1250mm Hydraulic un-coiler: one set

    Coil inner–diameter=508±30mm;
    Coil width = Max.1250mm

    Capacity: Max. 7TonRoyal Roman Longtile Roll Forming Machine
    2) Cold Rolling Mills:
    With feeding material guide, body frame made from H350# type steel by welding;
    Side wall thcikness: 16 mm

    Rollers manufactured from bearing steel GCr15,precision machined,hard

    Chrome Coated with thickness 0.04mm(for longer life and anti-rust);

    Roof Tile Roll Forming Machine
    Shafts manufactured from 45#,Main Shaft Diameter=φ75mm,precision machined

    Motor Driving,Gear chain transmission, 16 forming stations and 7 rollers(3 upper rollers and 4
    down rollers)for straightening and levelling)

    Main Motor=5.5KW , Frequency speed control
    Forming speed approx.3-4m/min
    hydraulic motor: 5.5KW, Hydraulic pressure range: 0-12Mpa
    Cutting tool material: Cr12Mov, Heat treatment
    3)PLC Control System(Touch screen brand:Taiwan WEINVIEW,Inverter brand:Finland VOCAN/Denmark Danfoss ,Encoder brand: Japan Koyo)
    Just input the required model/size on the touch screen
    rollers or spacers or cutters like traditional old style machine which takes over 45minutes for each production size changing).
    Control the quantity and pressing,cutting length automatically
    Combined with: PLC, Inverter, Touch Screen, Encoder, etc
    Cut-to-length tolerance≤±1mm
    Control Voltage 24V
    4) Exit Rack Un-powered, three units
    Roof Tile Roll Forming Machine

    2. Main Features of Glazed Tile Roof Roll Forming Machine

    The advantages of metal roof tile making forming machine are as follows:
    1. Easy operation, short construction period
    2.low maintenance cost
    3.Infinite sizing(any size within machine range),help to save materials


    3. Flow Diagram Royal Roman Longtile Roll Forming Machine

    Machine Parts

    Name: Feeding Device

    Brand: BMS

    Original: China

    make the steel materials move more smoothly.

    Royal Roman Longtile Roll Forming Machine

    Machine Parts

    Name: Glazed tile forming machine cutter
    Brand: BMS
    Original: China
    made by high quality mold steel Cr12 with heat treatment

    Royal Roman Longtile Roll Forming Machine

    Machine Parts

    Name: rollers
    Brand: BMS
    Original: China
    Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.With black treatment or Hard-Chrome Coating for options.

    Roof Tile Roll Forming Machine

    Machine Parts

    Name: PLC control system
    Brand: SIEMENS/SCHNEIDER ELECTRIC
    Original: Germany/France
    Combined with: PLC, Inverter, Touch Screen, Encoder, etc
    Encoder: KOYO/Omron (Japan brand)
