Floor Panel Metal Roll Forming Machine / Roofing Sheet Making Machine 1050 Type

    Buy cheap Floor Panel Metal Roll Forming Machine / Roofing Sheet Making Machine 1050 Type from wholesalers

    Buy cheap Floor Panel Metal Roll Forming Machine / Roofing Sheet Making Machine 1050 Type from wholesalers
    • Buy cheap Floor Panel Metal Roll Forming Machine / Roofing Sheet Making Machine 1050 Type from wholesalers

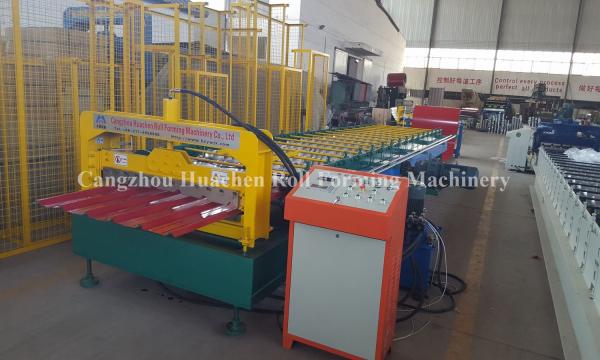

    Floor Panel Metal Roll Forming Machine / Roofing Sheet Making Machine 1050 Type

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC25
    Certification : ISO CE
    Price : USD8000-15000
    Payment Terms : D/A, Western Union, L/C, T/T
    Supply Ability : 20 sets per month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Floor Panel Metal Roll Forming Machine / Roofing Sheet Making Machine 1050 Type


    Floor Panel Metal Roll Forming Machine / Roofing Sheet Making Machine 1050 Type


    Main Parameters:


    NO.TypeSpecificationRemarks

    1.


    Raw material

    TypeGI
    Thickness0.8-1.2mm
    Yield strength235Mpa TO 350Mpa

    2.


    Decoiler

    OperationManual
    Weight apacity6tons

    3.


    Main body

    Roller station28 stations
    Diameter of shaft90mm
    Material of rollers45# steel with chrome 0.05mm
    Material of shaft45# steel with chrome 0.05mm
    Frame350mm H-Beam
    Chain1.5 inches

    4.


    Cutter

    OperateAutomatic hydraulic type
    Blade MaterialCG12
    NumberOne hydraulic cutter

    5.


    Power

    Pump motor for cutter5.5kw
    Main motor15kw
    Voltage380V 50HZ

    6.


    Control

    system

    Electric Box

    PLC control system, Inverter,

    encoder

    LanguageEnglish
    9.Speed8-12m/min


    Floor Panel Metal Roll Forming Machine / Roofing Sheet Making Machine 1050 TypeFloor Panel Metal Roll Forming Machine / Roofing Sheet Making Machine 1050 TypeFloor Panel Metal Roll Forming Machine / Roofing Sheet Making Machine 1050 Type

    Our Services

    1). Packing method: Nude, with waterproof cloth and stow-wood. The computer controlled cabinet is packed with waterproof cloth and box. The seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

    2). Payment Term: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery. After finished production, we will inspect the machine and inform the buyer, the buyer send person to inspect goods, then payoff the whole payment before shipping out the goods.


    3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 30 working days after receipt of deposit from the buyer.


    4). Service: We could send the technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 100~120 per day.


    5). Warranty: 12 months

    During the warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee. We will also send one set CD and specification(Chinese and English) to you with the machine, they can teach you how to operate the machines.


    6). Package: One complete equipment needs a 20 feet container to hold.

    Quality Floor Panel Metal Roll Forming Machine / Roofing Sheet Making Machine 1050 Type for sale
