CostPro panel lines
Today the Chinese manufactured panel roll formers are making most
world’s steel fabricators dreams come true, it is no longer a
non-affordable business by using many panel roll formers in
workshop to produce in large quantity and a variety of different
profiles.
However, the quality of Chinese panel roll formers are always on
the a huge debate, and hundreds of different online offers make a
decision even more difficult, as you may need to visit lots of
different factories to find out the real quality they are making.
Now you don’t have to be worried that we offer you a balanced
solution with decent quality make you business to another level,
meanwhile a customized configuration make the price more
transparent and affordable.
What we can offer is a versatility and meanwhile quality assurance
for any panel machines from economic basic production speed to fast
panel lines up to 50m/min:
We offer a range different panel roll formers for wall, roof, steel
decks, step tiles &standing seam profiles

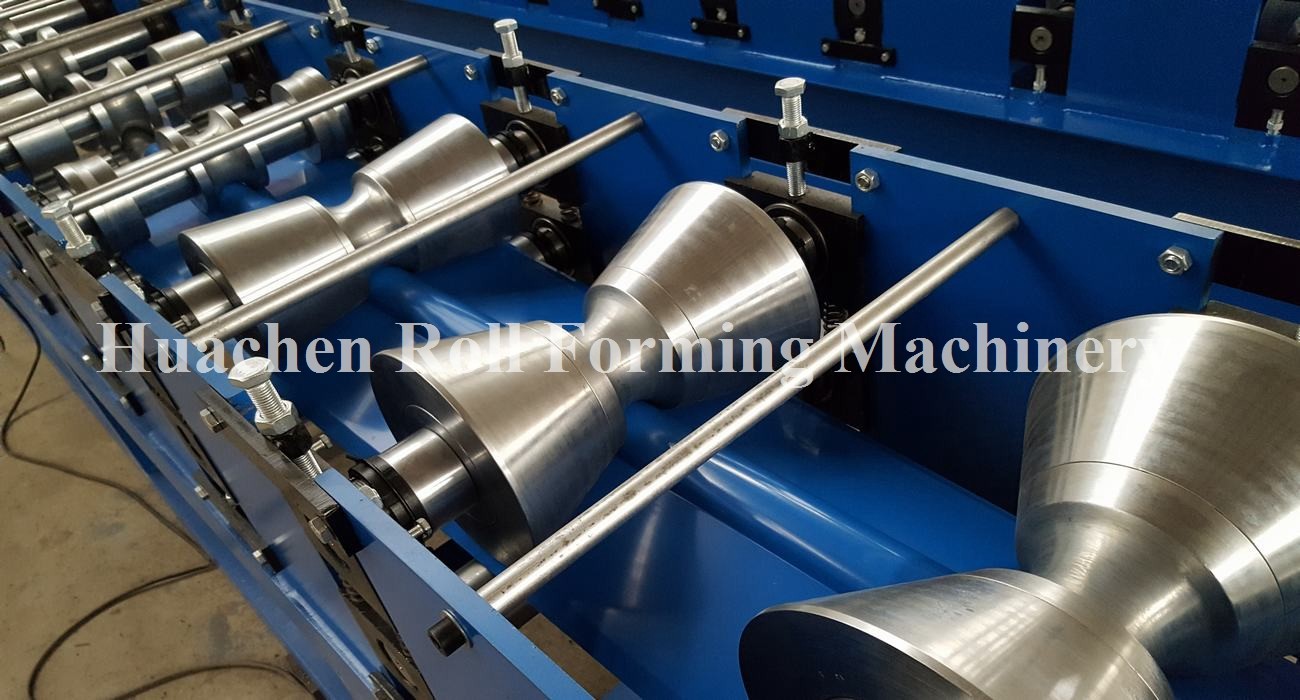

This tile forming machine is the roll forming machine for steel
sheet cold-form industries. It continuously forms the steel sheet
according to customer’s requirement with automatic press and cut to
length.
Machine has high forming speed, low noise, stable transmission and
easy operation.
| Item | Parameter |
Suitable material | Type | Pre-painted sheet |
| Thickness(mm) | 0.5-0.8 |
| Yield stress (Mpa) | 235-350 |
| Width (mm) | 1250 |
| Working speed (m/min) | About 5 |
| Main machine motor (Kw) | 4 |
| Decoiler motor power (Kw) | 2.2 |
| Decoiler hydraulic station motor power (Kw) | 3 |
| Hydraulic station power (Kw) | 7.5 |
| Total power (Kw) | 16.7 |
| Power | AC380V, 50HZ, 3P |
| Control system | PLC - Touch screen and button |
| External dimensions (L×W×H, m) | 15 × 3× 2 |
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled
technicians available, We need your machines running in order to
keep your business running.
Q: Once we've bought a machine from you, are you able to supply us
with material?
A: We can assist you in finding the appropriate materials to suit
your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers
specifications, using top brand name components
Q: What size decoiler can you supply us with?
A: From 5-ton decoiler to a 25-ton motorised hydraulic decoiler
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A: Terms mutually agreed on and we do accept Letter of Credit by
pre arrangement.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts,
civil requirements, and machine drawings
Q: Once a machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission
and install your machine, with training for your staff if required
at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery,
and it is recommended that you use a reputable rigging company.
Q: My current machine rollers need to be replaced. Would you be able
to assist me?
A: Yes. Send us your profile and specifications then we will
manufacture the rollers for you
Q: What kind of controls do you use on your machines?
A: AMS, Delta, Schneider, Siemens, and Mitsubishi
Q: What is your delivery time?
A: Depending on the type of machine, duration of 25 days to 185
days from date of order.
Q: Do we receive any updates while machine is in the manufacturing
process?
A: Yes.Regular updates on progress will be sent to you.
