    Steel Profile C Z Purlin Roll Forming Machine With Hydraulic Motor , 80mm - 300mm Width

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC90*40
    Certification : ISO
    Price :
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Steel Profile C Z Purlin Roll Forming Machine With Hydraulic Motor , 80mm - 300mm Width

    Steel Profile C Z Purlin Roll Forming Machine with Hydraulic Motor , 80mm - 300mm Width

    Material: GI,Carbon steel

    Material thickness: 2-3.0mm

    Machine diameter: about 8500*1000*1300(L*W*H)Weight of machine: about 5 Ton

    Decoiler: Manual or hydraulic (customer can choos)

    Weight capacity of decoiler: 5 Ton

    Forming station: 13

    Principle: 80mm diameterForming speed: 0-10m/min

    Drive type: 1.5' chain transmission

    Roller material: CGr 15 steel,quenched and heated process

    Main power: 11Kw

    Hydraulic power: 4Kw

    Punching: Hydraulic punching

    Electrical control: PLC control system with touch screen

    PLC: PANASONIC Brand

    Enconder: PANASONIC Brand
    Transducer: PANASONIC Brand

    We can also design Roll Forming Machine according to your specific profile drawing.

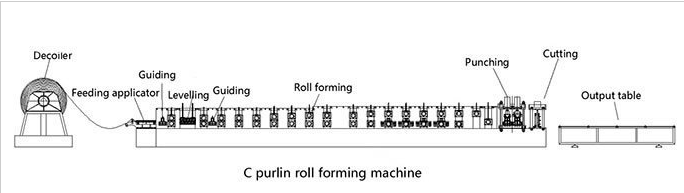

    The chart of process flow

    C shape channel steel structure purlin roll forming machine

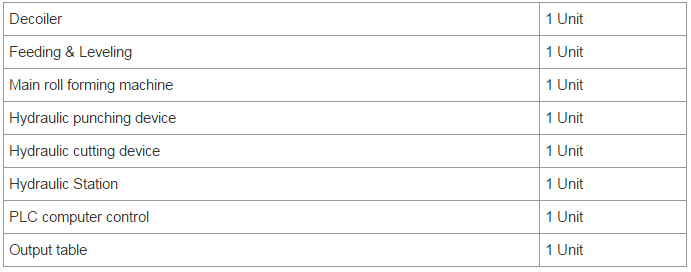

    The equiipments includes

    C shape channel steel structure purlin roll forming machine


    C shape channel steel structure purlin roll forming machine
