Colored Steel trapezoid Roll Forming Machine For Roofing Sheet , low noise

    Buy cheap Colored Steel trapezoid Roll Forming Machine For Roofing Sheet , low noise from wholesalers

    Buy cheap Colored Steel trapezoid Roll Forming Machine For Roofing Sheet , low noise from wholesalers
    • Buy cheap Colored Steel trapezoid Roll Forming Machine For Roofing Sheet , low noise from wholesalers

    Colored Steel trapezoid Roll Forming Machine For Roofing Sheet , low noise

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC25
    Certification : CE/ISO9001
    Price : 8000-29000USD
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Colored Steel trapezoid Roll Forming Machine For Roofing Sheet , low noise

    Colored Steel trapezoid Roll Forming Machine For Roofing Sheet , low noise
    Product Description

    Parameters:


    No.Spc.
    1suitable materialColor Steel plate, galvanized sheet
    2Feeding width1000mm
    3Rows of rollers13 rows
    4Main power5.5kw
    5Hydraulic power4kw
    6Main frame300 H steel
    7Thickness of raw material0.3-0.8mm
    8Transportation systemChain transportation
    9Thickness of chain1.0inches
    10Productivity8-10m/min
    11Out diameter of shaft70mm (solid shaft)
    12Material of shaftMaterial of shaft
    13Roller material45# steel polished and coated with chrome HRC55-60°
    14Shear mouldGr12
    15Voltage380V 50Hz 3phases
    16Control system

    PLC Frequency Control System with touch screen

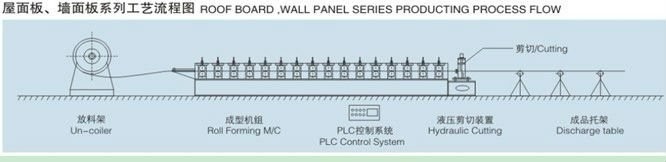

    Working flow:

    Decoiling the sheet — Sheet guiding — Roll forming — Measure

    length Cutting the panel— panels to the supporter

    Colored Steel trapezoid Roof Sheet Roll Forming Machine


    Components of machine:


    Decoiler1set (3MT capacity)
    Feeding & guiding device1set
    Main roll forming machine1set
    Hydraulic cutting system1set
    Controlling system1set
    Run out table1set

    Colored Steel trapezoid Roll Forming Machine For Roofing Sheet , low noiseColored Steel trapezoid Roll Forming Machine For Roofing Sheet , low noise
