    PLC Computer Control Shutter Door Automatic Roll Forming Equipment 8 - 10 m / Min

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC110
    Certification : ISO/CE
    Price : 5000-19000USD
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    PLC Computer Control Shutter Door Automatic Roll Forming Equipment 8 - 10 m / Min

    2.Machine parameters

    1. Rack: Using 300H steel welding
    2. Forming Machine-driven feeding frame forms: lateral slide-style
    3. Forming Machine Type: wall-type chain drive. Wall thickness of 14 mm.
    4. Shaft Diameter: 45 mm
    5. Chains: 1 inch single-row
    6. Forming Motor Power: 4KW
    7. Forming Machine speed: 8-10m/min
    8. Forming Machine Road Number: 12 stations
    9. Roll Material: high quality 45 # steel Duan playing pieces
    10. Hydraulic station motor: 4kw
    11. Rolling thickness :0.8-1 .0 MM
    12. Materials Expand Width: 100mm
    13. The computer use of PLC, Taiwan and Taiwan reached
    14. The machine weighs about 2.5 tons, length of 4 meters wide and 0.88 meters, 0.88 meters high.
    . The forming rollers are the key of roll forming machine. We use CAD to design and manufacture the rollers. After CNC lathe, the forming rollers will be harden by vacuum heat treatment and finished the profiles again. These processes make the more accurate forming rollers, avoid the deformation during heat treatment and ensure the rollers preciseness and wear-resisting ability.

    3.Components of the processing line

    Manual Decoiler------------------------------1 set(free)

    Roll Forming Main Station----------------1 set(customer designed)

    Oil Pump----------------------------------------1 set(customer designed)

    Control Box-------------------------------------1 set(Panasonic PLC or customer designed)

    Simple Receiving Table--------------------2 sets(free)

    4.Working Process

    Aluminum shutter door slat Guide roll forming machine steel roller shutter making machine

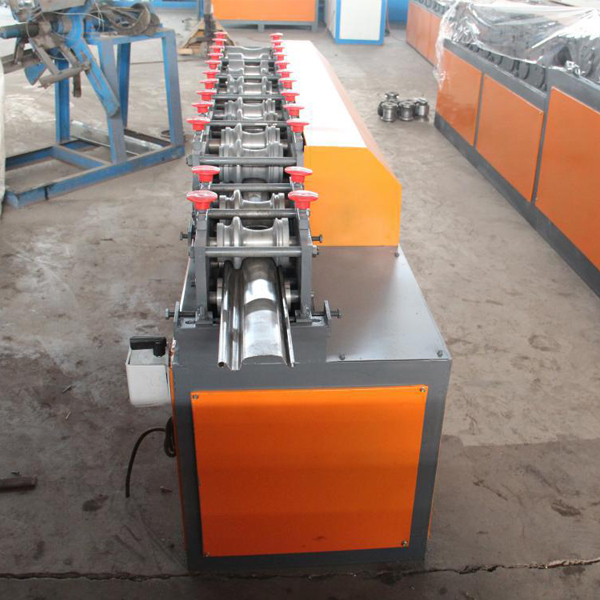

    5.Pictures Show

    Aluminum shutter door slat Guide roll forming machine steel roller shutter making machineAluminum shutter door slat Guide roll forming machine steel roller shutter making machine
