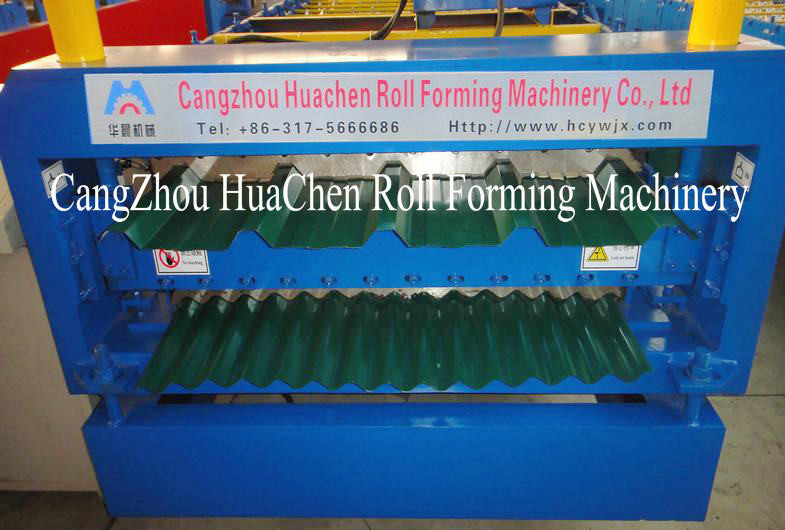

Metal roofing sheet double layer roll forming machine

1. Number of forming groups: 12/14

2. The machine material: welding comprise of 300 H-steel

3. The wallboard: processing compose of 22mm steel plate

4. The mold: The mold is made of 45#steel, processed after rough turning, finish turning, finish grinding, hard chrome

plating to ensure that the mold no deformation, glabrous, wearable and accurate.

5. The shaft: The shaft is made of 45#steel, diameter of 77mm, finish turning, finish grinding after heat treatment,

quenching and high temperature tempering.

6. The bearing: Harbin type 6209

7. The roll material: 0.3-0.5mm color steel sheet, galvanized steel sheet , It can be customized according to the provided size .

8. Motor:4kw * 2sets (380v)

9. Transmission: 1.0 inch chain

10. Discharge rack: 2 sets

11. Machine feature: PLC NC frequency electrical boxes, touch screen`s display, the encoder counting,

the length and quantity of the material is controllable, accuracy with in 1.0mm, automatic hydraulic cut.

12. Machine Length: 7.5m * 1.5 m * 1.5 m

13. Machine Weight: 5.8tons

14. Production time: 30 days

15. One year warranty
