    Building Material Iron Sheet Roof Corrugated Roll Forming Machine For Exhibition Halls

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC25-205-1030
    Certification : ISO CE
    Price : USD8000-15000
    Payment Terms : D/A, Western Union, L/C, T/T
    Supply Ability : 20 sets per month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Building Material Iron Sheet Roof Corrugated Roll Forming Machine For Exhibition Halls

    Product Description

    1. The Product Description of forming machine


    (1). Brief Introduction
    The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color.
    They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,
    ancient architectures and modern villas.

    (2). Working Flow of Roll Forming Machine
    Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter

    Building Material Iron Sheet Roof Corrugated Roll Forming Machine

    (3).Technical Detail

    A. General

    Suitable MaterialQ235 or equivalent
    Material Thickness0.25-0.8 mm
    Material Width914, 1000, 1200, 1220 or 1250, as per the drawing
    DimensionAbout 7.9*1.3*1.1m(L*W*H) , as per the drawing
    Working SpaceAbout 17.9*2.8m(L*W) , as per the drawing

    Length of
    the Sheet

    You can set the length according to your need.
    It is controlled by PLC
    which can ensure the accuracy of ±1mm.

    Cutting

    Automatically stop and cutting when it comes to the set
    length.


    B. Components Details

    Roller MaterialHigh grade 45# steel. Hard chrome plating, 0.05mm.
    Main Frame350# steel. More stable and no shaking.
    Middle Plate

    16mm. We use thicker plates to ensure stability
    of our products.

    Forming Steps11-16, according to the drawing.
    Shaft MaterialΦ70 mm, high grade 45# steel.

    Treating process: tempering- finish turning,
    high rigidity, hard to deform.

    Cutting
    Blade Material

    Cr12, hardness HRC60-62.
    Treating process: heat treatment- plane abrasion- wire electrode cutting.


    C. Electric Components

    Suitable Power380V, 50 Hz, 3 phase or according to your need.
    Screen5.7 inch touch screen, easy to operate.
    PLCDelta DVP 14ES

    well-adapted to various conditions, such as moisture,
    electromagnetic disturbance.

    Frequency Converter

    DeltaVFD-M. It has the advantage of slowing down before cutting,
    to ensure the length accuracy (±1mm,
    far better than industrial standard ±3mm).

    Length
    Measurement Device

    Omron, made in Japan.
    It features with high accuracy and stability.

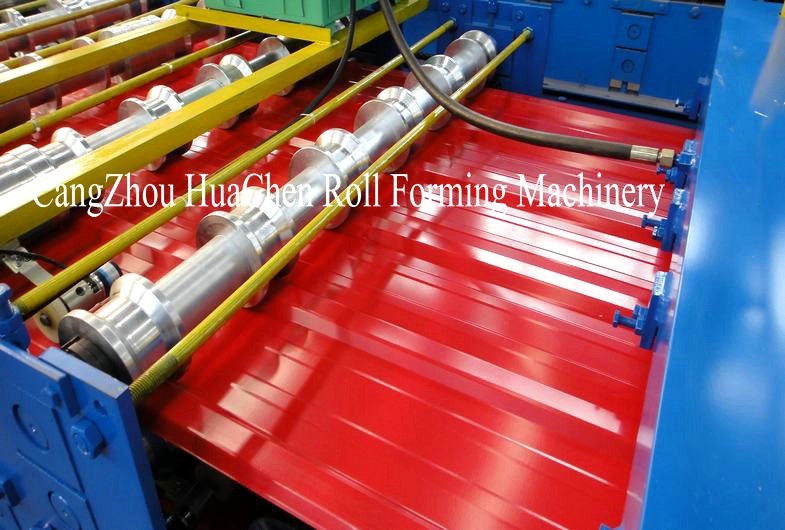

    2. More Pictures of forming machine

    Building Material Iron Sheet Roof Corrugated Roll Forming Machine For Exhibition HallsBuilding Material Iron Sheet Roof Corrugated Roll Forming Machine For Exhibition Halls

    3. The Application of forming machine


    This type of glazed tile has advantage inclouding beautiful, classical appearance and grace taste.
    It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.


    4. Other Products for Choosing


    Toppo Machinery Co.,Ltd. is a professional supplier for roll forming machine.

    We provide an extensive line of products, including: roof and wall panel machine, tile roof machine, purline forming machine,
    shutter door machine, floor decking machine and other associated equipment.

    Our roll forming machines are equipped with PLC control to ensure high accuracy and easy operation.
