    Galvanized Aluminum Steel Cold Roll Forming Equipment , Metal Forming Machines Long Lifespan

    Strong Ridge Cap Forming Machine,roll forming machine

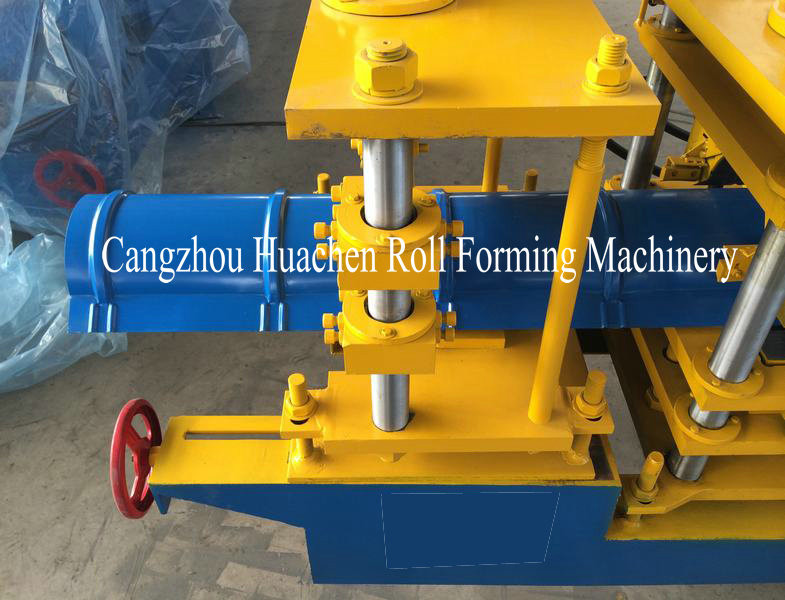

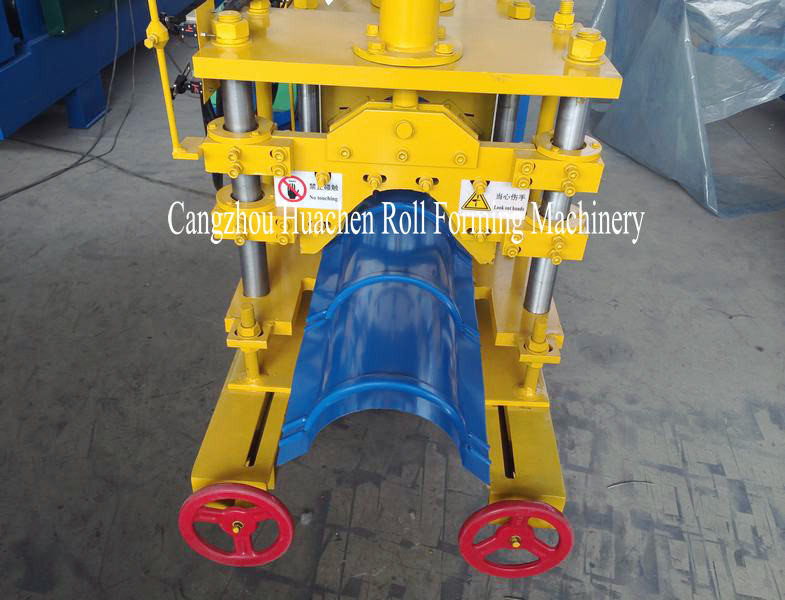

    The ridge cap roll forming machine can roll formed metal ridge which is mostly used with colorful roofing tile sheets. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface. We can design the machine according to your specification and profile drawing. This product is widely used in many kinds of industrial factory and civilian buildings. It has advantages of its pretty appearance and durability.


    Machine Configuration:

    Decoiler, Feeding Applicator, Roll Forming Machine, Computer Control System, Hydraulic Cutting,Output Table


    Working Flow:

    Decoiler—Feeding Applicator—Roll Forming Machine—Computer Contol System— Hydraulic Cutting—Output Table

    color coated steel sheet ridge cap roll forming machine/ tile press for ridge cap


    Product Description

    Specification:

    Item NODescriptionOffered specification
    1.0Roll forming machineRoof sheet
    1.1Rolling speed15-20m/min
    1.2Rolling thickness0.25-0.8mm
    1.3Raw materialGalvanized steel sheet & pre-painted steel sheet up to 550mpa
    1.4Control systemPLC & Transducer(Mitsubishi )
    1.6dimension7000×1500×1500(mm)
    1.7The material width6000mm
    1.8Effective width312/415mm
    1.9Roller stations25 stations
    1.10Roller material45#forge steel, coated with chrome
    1.11Shaft diameterφ75mm ,material is 45# forge steel
    1.12TransmissionBy chain
    1.13Material of chain45# forged steel with frequency quenching, 16A
    1.14Main motor power7.5kw
    1.15Hydraulic station power3.0kw
    1.16Hydraulic pressure12Mpa
    1.17Material of cuttingCr12Mov with quench HRC58-62°
    1.18Tolerance10m+-2mm
    1.19Electric source415 volts, 3 phase and 50 Hz or at buyer’s request
    1.20Frame350mmX175mm H type steel
    1.21Color of the machineAccording customer’s requirements dark green
    1.22Container need

    1 x40 feet( machine will be fixed by string in the container)

    Galvanized Aluminum Steel Cold Roll Forming Equipment , Metal Forming Machines Long LifespanGalvanized Aluminum Steel Cold Roll Forming Equipment , Metal Forming Machines Long LifespanGalvanized Aluminum Steel Cold Roll Forming Equipment , Metal Forming Machines Long LifespanGalvanized Aluminum Steel Cold Roll Forming Equipment , Metal Forming Machines Long LifespanGalvanized Aluminum Steel Cold Roll Forming Equipment , Metal Forming Machines Long Lifespan

    FAQ
    Training and Installation :
    1 We offer installation service local in paid, reasonable charge.
    2 QT test is welcome and professional.
    3. manual and using guide is optional if no visiting and no installation.

    Certification and after service:
    1. Match the technology standard, ISO producing certification
    2. CE certification
    3. 12 months warranty since the delivery. Board.

    Our advantage:
    1. Short delivery period.
    2. Effective communication
    3. Interface customized.
