PPGI Colored Glazed Tile Roll Forming Machine 380V 50HZ 3phase

    Buy cheap PPGI Colored Glazed Tile Roll Forming Machine 380V 50HZ 3phase from wholesalers

    Buy cheap PPGI Colored Glazed Tile Roll Forming Machine 380V 50HZ 3phase from wholesalers
    • Buy cheap PPGI Colored Glazed Tile Roll Forming Machine 380V 50HZ 3phase from wholesalers

    PPGI Colored Glazed Tile Roll Forming Machine 380V 50HZ 3phase

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC35
    Certification : ISO/CE
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    PPGI Colored Glazed Tile Roll Forming Machine 380V 50HZ 3phase

    Metal cold roll forming machine for roof use glazed tile roll forming machine

    Technique parameters of the processing line
    (1). Suitable material to process: colored armor plate with the bending intensity of 235-550MPA;
    (2). Thickness of the plate: 0.25-0.8mm;
    (3). width of the plate:1250mm
    (4). Effective area for use: 36";
    (5). Productivity: 3-5m/min;
    (6). Rollers: 15 rows;
    (7). Diameter of the roller:70mm;
    (8). Main motor power: 5.5KW;
    (9). Hydraulic system power: 4KW;
    (10). Dimensions of major structure: 7500mm*1400mm*1500mm (approximate).
    Processing technique and deployment

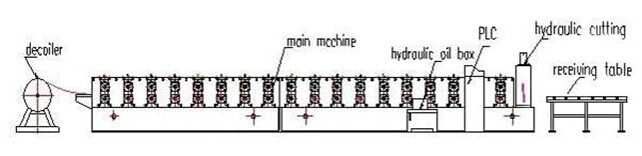

    Processes: Manual uncoiler—Roll forming machine—PLC system—Hydraulic system-Blade—Receiving table
    Metal Cold Roll Forming Machine For Roof / Glazed Tile Roll Forming Machine
    Components of line:

    No.NameUnitQty
    1Manual uncoilerset1
    2Main machine for roll formingset1
    3Control systemset1
    4Hydraulic systemset1
    5Bladeset1
    6Receiving tableset2

    PPGI Colored Glazed Tile Roll Forming Machine 380V 50HZ 3phasePPGI Colored Glazed Tile Roll Forming Machine 380V 50HZ 3phase

    FAQ

    1) Q: Are you manufacturer or trading company?
    A: We are manufacturer and trading company .

    2) Q: Do you provide installing and training overseas?
    A: Overseas machine install and worker training services are optional.

    3) Q: How is your after sales support?
    A: We provide technical support on line as well as overseas services by skillful technicians.

    4) Q: How does your factory do regarding quality control?
    A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

    5) How can I trust you that machines pasted testing running before shipping?
    A: 1) We record the testing video for your reference. Or,
    2) We welcome you visit us and test machine by yourself in our factory.

    6) Q: Do you sell only standard machines?
    A: No. Most machines are made to order.

    8) What should I provide if I`d love to customized my machine?
    A: To customize machine, we`d love to know:

    1. Profile drawing
    2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
    3. Voltage: designed per your requirement
    4. Configuration requirement: Hydraulic or manual decoiler/ stacker
    Have no idea about them?

    We will be glad to recommend machines ----Just let us know your country!
