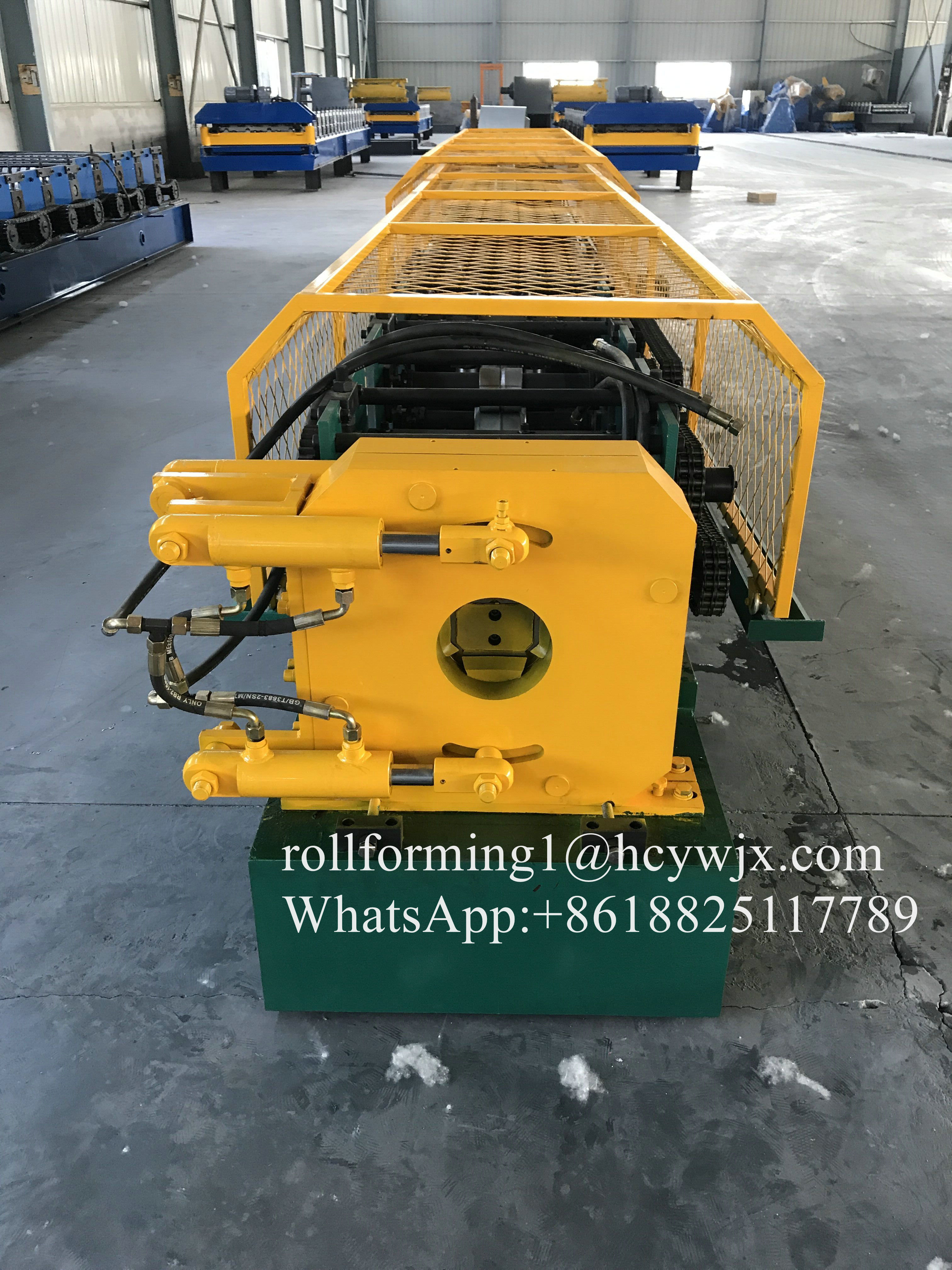

HC100 Round Water Pipe Down Pipe Roll Forming Machine with Tube Bending

    Buy cheap HC100 Round Water Pipe Down Pipe Roll Forming Machine with Tube Bending from wholesalers

    Buy cheap HC100 Round Water Pipe Down Pipe Roll Forming Machine with Tube Bending from wholesalers
    • Buy cheap HC100 Round Water Pipe Down Pipe Roll Forming Machine with Tube Bending from wholesalers
    • Buy cheap HC100 Round Water Pipe Down Pipe Roll Forming Machine with Tube Bending from wholesalers

    HC100 Round Water Pipe Down Pipe Roll Forming Machine with Tube Bending

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC100
    Certification : ISO/CE
    Price : 25000-49000USD
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection before shipment
    Supply Ability : 20 Sets/Month
    Delivery Time : 30Days
    • Product Details
    • Company Profile

    HC100 Round Water Pipe Down Pipe Roll Forming Machine with Tube Bending

    Round Water Pipe Down Pipe Roll Forming Machine with Tube Bending

    We have marked a distinct and dynamic position in the market by providing a high quality array of Downspout Roll Forming Machine that is fabricated under the guidance of our skilled professionals using latest technology in compliance with international quality standards. The components used for fabricating this machine are procured from our associated vendors. This Downspout Roll Forming Machine is widely used in production industry for making down pipe. Our offered Downspout Roll Forming Machine is praised among our clients for its attributes like high performance, excellent functionality, sturdy construction, low maintenance and reliability.



    Quick Detail

    1. Suitable to process: Color steel plate
    2. Width of the plate: 330mm
    3. Rollers: 15 rows
    4. Dimensions: 7.4*1.15*1.51m
    5. Power: 5.5+4kw
    6. Rolling material: high grade 45# steel(plated chrome on surface)
    7. Thickness of the plate:0.3-0.6 mm
    8. Voltage: 380V 50Hz 3phases
    9. Material of the cutting plate: Cr12
    10. Hydraulic: 40#
    11. Processing precision: Within 1.00mm
    12. Control system: PLC control

    Description

    No.

    Main parameter of Downspout Roll Forming Machine

    1

    Suitable to process

    Color steel plate

    2

    Width of the plate

    330mm

    3

    Rollers

    15rows

    4

    Dimensions

    7400*1150*1510mm

    5

    Power

    5.5+4kw

    6

    Rolling material

    high grade 45# steel

    6

    Thickness of the plate

    0.3-0.6mm

    7

    Productivity

    8-10m/min

    8

    Diameter of the roller

    Φ66mm

    9

    Voltage

    380V 50Hz 3phases

    10

    Material of the cutting plate

    Cr12

    11

    Hydraulic

    40#

    12

    Processing precision

    Within 1.00mm

    13

    Control system

    PLC control


    Components: decoiler - roll forming machine - computer control box - hydraulic control system - cutting - output table

    Application

    The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.
    It will make the project more integrate, and help enhancing the image of all project.
    Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.

    Competitive Advantage

    1. ISO/CE certification
    2. 20sets/month
    3. high-speed production
    4. easy operate, easy maintain
    5. One year free warranty
