    PBR / PBU Roofing Sheet Roll Forming Machine PLC Control Hydraulic Cutting

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC38
    Certification : ISO
    Price : 8000-29000USD
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    PBR / PBU Roofing Sheet Roll Forming Machine PLC Control Hydraulic Cutting

    PBR / PBU Roofing Sheet Roll Forming Machine PLC Control Hydraulic Cutting

    Trapezoidal Roof Roll Forming Machine..

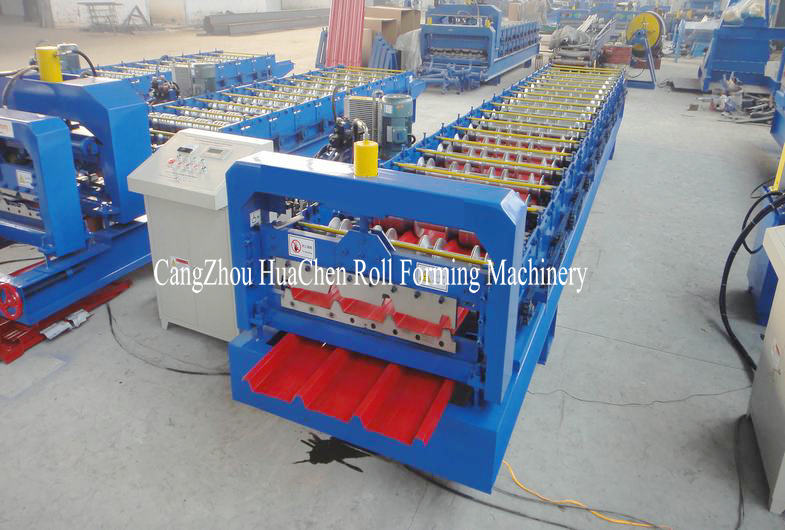

    This machine Trapezoidal roof roll forming machine features high forming speed, rational design, simple operation and durability. Roof roll forming machine includes hydraulic decoiler with breaking device, roll former with tooling, hydraulic cut­off machine, run out table and automatic stacking device, and more.It suits for forming PPGI coil and embossed aluminum coil material.

    Supply various roof/wall profiles
    Accept customized design
    Machine working life could be more than 10 years
    Supply technical support for all life
    The machine can work as fast as 40m/min with no stop cutting system

    Quick Detail:

    1. Suitable to process: Color steel plate
    2. Width of the plate:1000mm
    3. Rollers: 18 rows
    4. Dimensions: 9.1*1.45*1.51m
    5. Power: 7.5kw
    6. Rolling material: 45# steel(plated chrome on surface)
    7. Thickness of the plate:0.3-0.7mm
    8. Voltage: 380V 50Hz 3phases
    9. Material of the cutting plate: Cr12
    10. Hydraulic: 40#
    11. Processing precision: Within 1.00mm
    12. Control system: PLC control

    PBR / PBU Roofing Sheet Roll Forming Machine PLC Control Hydraulic CuttingPBR / PBU Roofing Sheet Roll Forming Machine PLC Control Hydraulic CuttingPBR / PBU Roofing Sheet Roll Forming Machine PLC Control Hydraulic CuttingPBR / PBU Roofing Sheet Roll Forming Machine PLC Control Hydraulic Cutting
    Description:

    Roof Panel Roll Forming Machine Main parameter

    No.

    Main parameter of Roof Panel Roll Forming Machine

    1

    Suitable to process

    Color steel plate

    2

    Width of the plate

    1000mm

    3

    Rollers

    19 rows

    4

    Dimensions

    9100*1450*1510mm

    5

    Power

    5.5kw

    6

    Rolling material

    45# steel(plated chrome on surface)

    7

    Thickness of the plate

    0.3-0.6mm

    8

    Productivity

    20m/min

    9

    Diameter of the roller

    Φ70mm

    10

    Voltage

    380V 50Hz 3phases

    11

    Material of the cutting plate

    Cr12

    12

    Hydraulic

    40#

    13

    Processing precision

    Within 1.00mm

    14

    Control system

    PLC control

    Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting




    Intruduction:
    Machine consisit of uncoiler and its base, coil sheet guilding equipment, roll forming system, cutting system, hydraulic station, controling system and supporter table.
    Application:
    This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site.
    Intruduction:
    Machine consisit of uncoiler and its base, coil sheet guilding equipment, roll forming system, cutting system, hydraulic station, controling system and supporter table.
    Application:
    This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site



    Competitive Advantage

    1. good service
    2. easy installation
    3. short delivery time
    4. professional design team
    5. easy to use

    At present, 90% of our machine have been exported. Our roll forming machine have been exported to the USA,
    Romania, Turkey, India, Malaysia, Russia, Kazakhstan, Congo, Algeria, Bolivia, Sri Lanka, Etc.
    Our Pursuit of "First rate quality, Reasonable Prices and Comprehensive after sales service"
