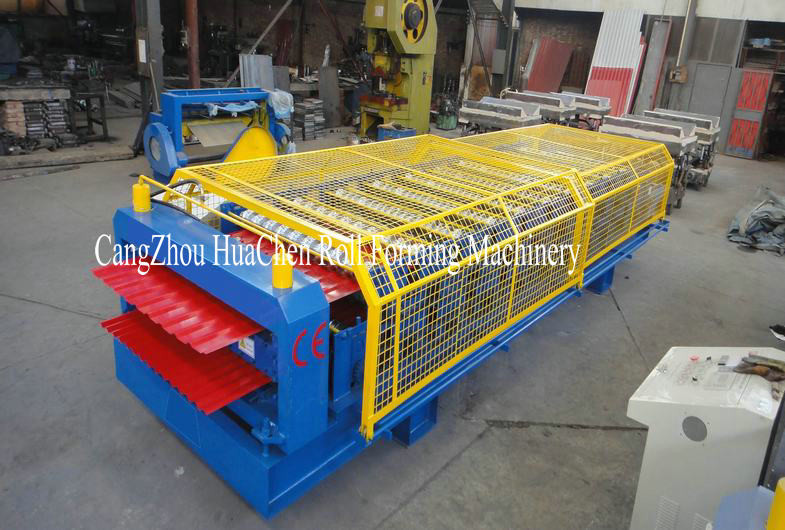

    High speed double layer building used metal roofing roll forming machine

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC23/35
    Certification : ISO
    Price : 15000-39000USD
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    High speed double layer building used metal roofing roll forming machine

    High speed double layer building used metal roofing roll forming machine

    (1). Brief Introduction

    The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color.

    They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,

    ancient architectures and modern villas.


    (2). Working Flow of Roll Forming Machine

    Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter


    High speed double layer building used metal roofing roll forming machine


    (3).Technical Detail


    A. General

    Suitable MaterialHRB60 or equivalent
    Material Thickness0.2-0.6 mm
    DimensionAbout 7.2*1.3*1.1m(L*W*H) , as per the drawing

    Length of

    the Sheet

    You can set the length according to your need.

    It is controlled by PLC

    which can ensure the accuracy of ±1mm.

    Cutting

    Automatically stop and cutting when it comes to the set

    length.


    B. Components Details

    Roller MaterialHigh grade 45# steel. Hard chrome plating, 0.05mm.
    Main Frame350# steel. More stable and no shaking.
    Middle Plate

    16mm. We use thicker plates to ensure stability

    of our products.

    Forming Steps11-16, according to the drawing.
    Shaft MaterialΦ70 mm, high grade 45# steel.

    Treating process: tempering- finish turning,

    high rigidity, hard to deform.

    Cutting

    Blade Material

    Cr12, hardness HRC60-62.
    Treating process: heat treatment- plane abrasion- wire electrode cutting.

    C. Electric Components

    Suitable Power380V, 50 Hz, 3 phase or according to your need.
    Screen7 inch touch screen, easy to operate.
    PLCDelta DVP14ES

    Well-adapted to various conditions, such as moisture,

    electromagnetic disturbance.

    Frequency Converter

    Delta VFD-M. It has the advantage of slowing down before cutting,

    to ensure the length accuracy (±1mm,

    far better than industrial standard ±3mm).

    Length

    Measurement Device

    Omron, made in Japan.
    It features with high accuracy and stability.

    High speed double layer building used metal roofing roll forming machineHigh speed double layer building used metal roofing roll forming machineHigh speed double layer building used metal roofing roll forming machineHigh speed double layer building used metal roofing roll forming machineHigh speed double layer building used metal roofing roll forming machine


    Quick Detail:

    1. Suitable to process: Color steel plate
    2. Width of the plate: 1250mm
    3. Rollers: 10/16 rows
    4. Dimensions: 9.2*1.55*1.91m
    5. Power: 4+4kw
    6. Rolling material: high grade 45# steel(plated chrome on surface)
    7. Thickness of the plate:0.3-0.6mm
    8. Voltage: 380V 50Hz 3phases
    9. Material of the cutting plate: Cr12
    10. Hydraulic: 40#
    11. Processing precision: Within 1.00mm
    12. Control system: PLC control


    Description:

    2 In 1 Double Roof Roll Forming Machine For Two Different Roof Profiles Main parameter

    No.

    Main parameter of Double layer roll forming machine

    1

    Suitable to process

    Color steel plate

    2

    Width of the plate

    1250mm

    3

    Rollers

    upper level :15 rows
    Down level :18 rows

    4

    Dimensions

    10200*1550*1910mm

    5

    Power

    4+4kw

    6

    Rolling material

    high grade 45# steel(plated chrome on surface)

    6

    Thickness of the plate

    0.3-0.6mm

    7

    Productivity

    15-20m/min

    8

    Diameter of the roller

    Φ70mm

    9

    Voltage

    380V 50Hz 3phases

    10

    Material of the cutting plate

    Cr12

    11

    Hydraulic

    40#

    12

    Processing precision

    Within 1.00mm

    13

    Control system

    PLC control

    Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting


    Application

    This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site


    Competitive Advantage


    1. CE certification
    2. noiseless
    3. easy operate
    4. high output
    5. easy maintain

    High speed double layer building used metal roofing roll forming machineHigh speed double layer building used metal roofing roll forming machine
