    Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC26
    Certification : ISO
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

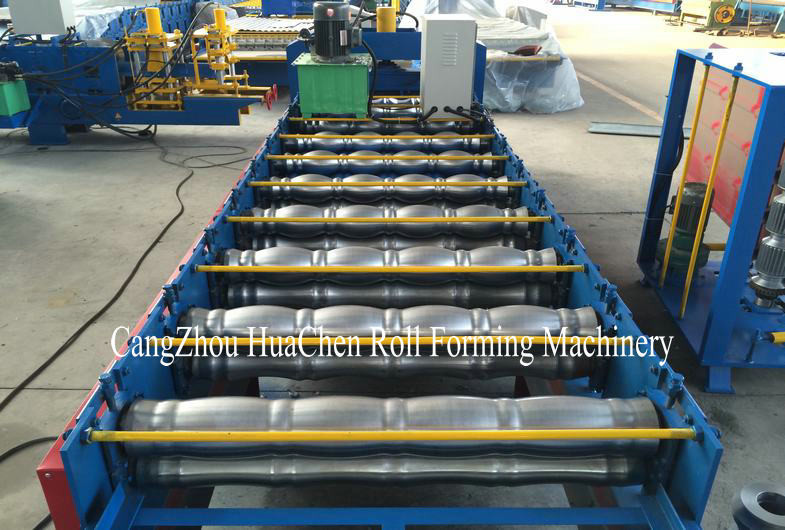

    Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station

    Double Press Glazed Step Tile Roll Forming Machine

    1. Working Flow:

    3 Phases Hydraulic Arc Sheet Metal Roll Forming Machines Color Steel Roll Form Equipment

    double tile pressing roof machine.jpg

    Manual Uncoiler- Roll Forming Machine - Computer Control System - Hydraulic Control System - Pressing Form - Cutting

    2 Application

    This type of glazed tile has advantage inclouding beautiful, classical appearance and grace taste. It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.

    Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station

    3 Parameters: 3 Phases Hydraulic Arc Sheet Metal Roll Forming Machines Color Steel Roll Form Equipment

    No.

    Main parameter of Glazed Tile Roll Forming Machine

    1

    Suitable to process

    Color steel plate

    2

    Width of the plate

    1000mm

    3

    Rollers

    12 rows

    4

    Dimensions

    7100*1450*1510mm

    5

    Power

    4+4kw

    6

    Rolling material

    45# steel(plated chrome on surface)

    6

    Thickness of the plate

    0.3-0.6mm

    7

    Productivity

    0-2m/min

    8

    Diameter of the roller

    Φ70mm

    9

    Voltage

    380V 50Hz 3phases

    10

    Material of the cutting plate

    Cr12

    11

    Hydraulic

    40#

    12

    Processing precision

    Within 1.00mm

    13

    Control system

    PLC control

    3 Phases Hydraulic Arc Sheet Metal Roll Forming Machines Color Steel Roll Form Equipment

    Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station

    Rolling Material: high grade 45# steel(plated chrome on surface)
    Equipment Components: Man-Made Uncoiler-Roll Forming Machine-Computer Control System-
    Hydraulic Control System-Press Form-Cutting

    3 Phases Hydraulic Arc Sheet Metal Roll Forming Machines Color Steel Roll Form Equipment

    Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station

    We have a professional design team
    Can also design and manufacture according to customer's requirement.

    Competitive Advantage

    1.elegant appearance

    2.high quality steel structure

    3.One year free guarantee

    4.lifelong maintain

    5.Panasonic PLC
