    Automatic Double Layer Roll Forming Machine Roofing Sheet PLC Frequency Control

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC9-23
    Certification : ISO
    Price : 15000-39000USD
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Automatic Double Layer Roll Forming Machine Roofing Sheet PLC Frequency Control

    Double Layer Roofing Sheet Roll Forming Machine


    New Type Double Deck Forming Machine

    Quick Detail:

    1. Suitable to process: Color steel plate
    2. Width of the plate: 1000mm
    3. Rollers: 10/11 rows
    4. Dimensions: 6.7*1.55*1.91m
    5. Power: 4+4kw
    6. Rolling material: high grade 45# steel(plated chrome on surface)
    7. Thickness of the plate:0.3-0.6mm
    8. Voltage: 380V 50Hz 3phases
    9. Material of the cutting plate: Cr12
    10. Hydraulic: 40#
    11. Processing precision: Within 1.00mm
    12. Control system: PLC control


    Description:

    Double layer roll forming machine Main parameter

    No.

    Main parameter of Double layer roll forming machine

    1

    Suitable to process

    Color steel plate

    2

    Width of the plate

    1000mm

    3

    Rollers

    upper level :9 rows
    Down level :11 rows

    4

    Dimensions

    6700*1550*1910mm

    5

    Power

    4+4kw

    6

    Rolling material

    high grade 45# steel(plated chrome on surface)

    6

    Thickness of the plate

    0.3-0.6mm

    7

    Productivity

    20m/min

    8

    Diameter of the roller

    Φ70mm

    9

    Voltage

    380V 50Hz 3phases

    10

    Material of the cutting plate

    Cr12

    11

    Hydraulic

    40#

    12

    Processing precision

    Within 1.00mm

    13

    Control system

    PLC control

    Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting

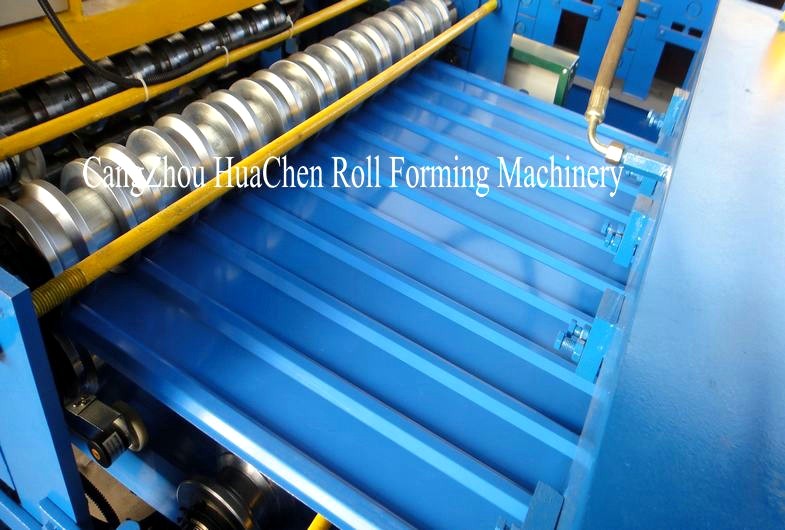

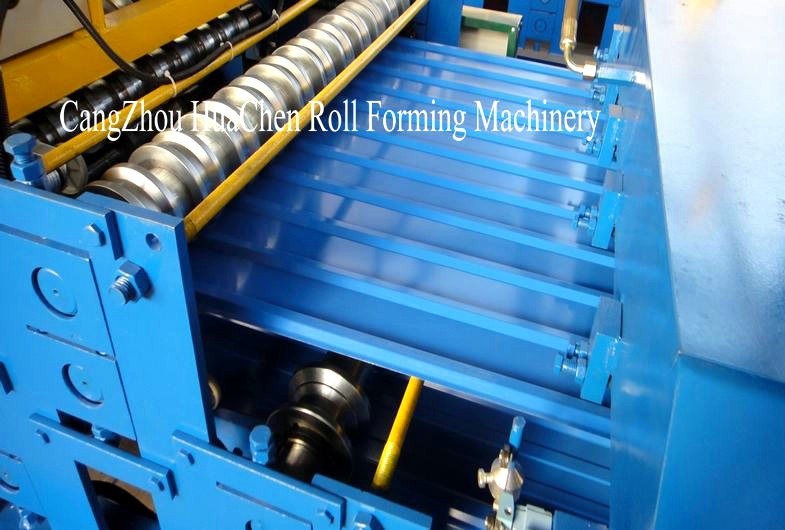

    Automatic Double Layer Roll Forming Machine Roofing Sheet PLC Frequency ControlAutomatic Double Layer Roll Forming Machine Roofing Sheet PLC Frequency ControlAutomatic Double Layer Roll Forming Machine Roofing Sheet PLC Frequency ControlAutomatic Double Layer Roll Forming Machine Roofing Sheet PLC Frequency Control

    Application

    This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site


    Competitive Advantage


    1. CE certification
    2 .ISO certification
    3. working life 20 years
    4. high quality steel
    5. High efficiency

    Quality Automatic Double Layer Roll Forming Machine Roofing Sheet PLC Frequency Control for sale
