Brand Name : | HC |
Model Number : | HC12/19 |
Certification : | ISO |
Price : | |
Payment Terms : | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |
Supply Ability : | 20 sets/month |
Delivery Time : | 30days |
Roof Sheet Roll Forming Machine
Being counted amongst the most prominent entities of the market, we
are engaged in offering a best quality range of Double Layer Roof Forming Machine which finds application in production of false ceiling section
profiles, cable trays and DIN rails. The offered roll forming
roofing product is valued for easy usage, high strength, corrosion
& thermal resistance and easy installation. This Double Layer Roof Forming Machine is manufactured at our state-of-the-art manufacturing unit using
high grade raw materials and cutting-edge technology in line with
global set industry norms.
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 1250mm
3. Rollers: 10/12 rows
4. Dimensions: 7.2*1.55*1.91m
5. Power: 4+4kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description:
Double layer roll forming machine Main parameter
No. | Main parameter of Double layer roll forming machine | |
1 | Suitable to process | Color steel plate |
2 | Width of the plate | 1250mm |
3 | Rollers | upper level :10 rows |
4 | Dimensions | 7.200*1550*1910mm |
5 | Power | 4+4kw |
6 | Rolling material | high grade 45# steel(plated chrome on surface) |
6 | Thickness of the plate | 0.3-0.6mm |
7 | Productivity | 20m/min |
8 | Diameter of the roller | Φ70mm |
9 | Voltage | 380V 50Hz 3phases |
10 | Material of the cutting plate | Cr12 |
11 | Hydraulic | 40# |
12 | Processing precision | Within 1.00mm |
13 | Control system | PLC control |
Equipment components: Man-made uncoiler-roll forming
machine-computer control system-hydraulic control system- cutting
Application

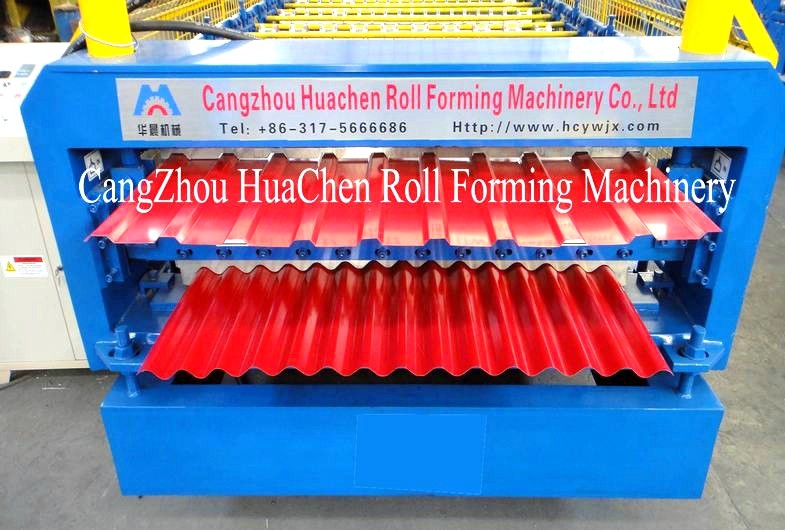

This kind of machine make two types of tile together perfectly, it
has reasonable structure, beautiful appearance, with advantage of
saving space, easy operate and especially welcomed by the customer
with limit area or site.
Competitive Advantage
1. CE certification
2. noiseless
3. easy operate
4. high output
5. easy maintain
![]() |
