    Double Roll Former Double Layer Roll Forming Machine Manual Hydraulic Decoiler

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC25/20
    Certification : ISO
    Price : 15000-39000USD
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Double Roll Former Double Layer Roll Forming Machine Manual Hydraulic Decoiler

    Double layer roll forming machine



    Being counted amongst the most prominent entities of the market, we are engaged in offering a best quality range of Double Layer Roof Forming Machine which finds application in production of false ceiling section profiles, cable trays and DIN rails. The offered roll forming roofing product is valued for easy usage, high strength, corrosion & thermal resistance and easy installation. This Double Layer Roof Forming Machine is manufactured at our state-of-the-art manufacturing unit using high grade raw materials and cutting-edge technology in line with global set industry norms.

    Quick Detail:

    1. Suitable to process: Color steel plate
    2. Width of the plate: 1250mm
    3. Rollers: 11/12 rows
    4. Dimensions: 7.2*1.55*1.91m
    5. Power: 4+4kw
    6. Rolling material: high grade 45# steel(plated chrome on surface)
    7. Thickness of the plate:0.3-0.6mm
    8. Voltage: 380V 50Hz 3phases
    9. Material of the cutting plate: Cr12
    10. Hydraulic: 40#
    11. Processing precision: Within 1.00mm
    12. Control system: PLC control


    Description:

    Double layer roll forming machine Main parameter

    No.

    Main parameter of Double layer roll forming machine

    1

    Suitable to process

    Color steel plate

    2

    Width of the plate

    1250mm

    3

    Rollers

    upper level :11 rows
    Down level :12 rows

    4

    Dimensions

    7200*1550*1910mm

    5

    Power

    4+4kw

    6

    Rolling material

    high grade 45# steel(plated chrome on surface)

    6

    Thickness of the plate

    0.3-0.6mm

    7

    Productivity

    20m/min

    8

    Diameter of the roller

    Φ70mm

    9

    Voltage

    380V 50Hz 3phases

    10

    Material of the cutting plate

    Cr12

    11

    Hydraulic

    40#

    12

    Processing precision

    Within 1.00mm

    13

    Control system

    PLC control

    Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting
    Double Roll Former Double Layer Roll Forming Machine Manual Hydraulic DecoilerDouble Roll Former Double Layer Roll Forming Machine Manual Hydraulic DecoilerDouble Roll Former Double Layer Roll Forming Machine Manual Hydraulic Decoiler

    Application

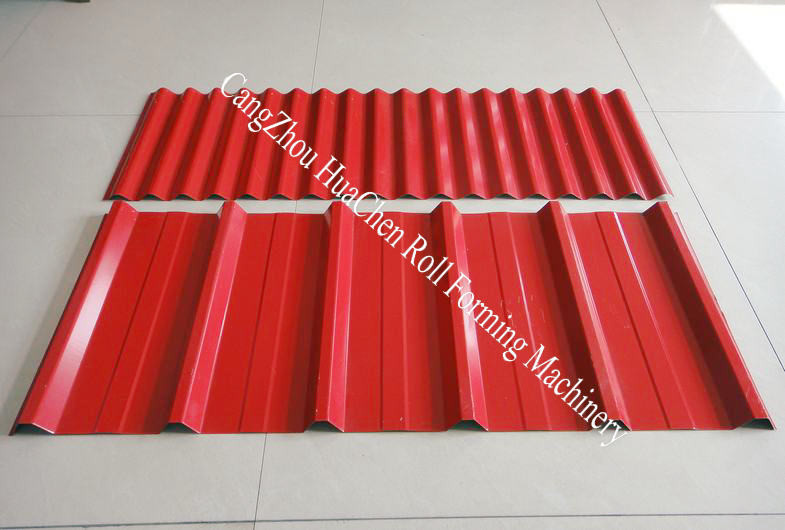

    This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site


    Competitive Advantage

    1. CE certification
    2. noiseless
    3. easy operate
    4. high output
    5. easy maintain

    Quality Double Roll Former Double Layer Roll Forming Machine Manual Hydraulic Decoiler for sale
