    Effective Metal Roof Glazed Tile Roll Forming Machine 4m / Min ISO

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC28-200-800
    Certification : ISO
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Effective Metal Roof Glazed Tile Roll Forming Machine 4m / Min ISO

    Cost Effective Metal Roof Glazed Tile Roll Forming Machine

    Effective Metal Roof Glazed Tile Roll Forming Machine 4m / Min ISOEffective Metal Roof Glazed Tile Roll Forming Machine 4m / Min ISO

    Quick Detail:


    1. Suitable to process: Color steel plate

    2. Width of the plate: 1000mm

    3. Rollers: 12 rows

    4. Dimensions: 7.2*1.45*1.51m

    5. Power: 4+4kw

    6. Rolling material: 45# steel(plated chrome on surface)

    7. Thickness of the plate:0.3-0.6mm

    8. Voltage: 380V 50Hz 3phases

    9. Material of the cutting plate: Cr12

    10. Hydraulic: 40#

    11. Processing precision: Within 1.00mm

    12. Control system: PLC control


    Description:

    Cost Effective Metal Roof Glazed Tile Roll Forming Machine Main parameter

    No.

    Main parameter of Cost Effective Metal Roof Glazed Tile Roll Forming Machine

    1

    Suitable to process

    Color steel plate

    2

    Width of the plate

    1000mm

    3

    Rollers

    12 rows

    4

    Dimensions

    7200*1450*1510m

    5

    Power

    4+4kw

    6

    Rolling material

    45# steel(plated chrome on surface)

    6

    Thickness of the plate

    0.3-0.6mm

    7

    Productivity

    4m/min

    8

    Diameter of the roller

    Φ70mm

    9

    Voltage

    380V 50Hz 3phases

    10

    Material of the cutting plate

    Cr12

    11

    Hydraulic

    40#

    12

    Processing precision

    Within 1.00mm

    13

    Control system

    PLC control

    Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-press form-cutting


    Application

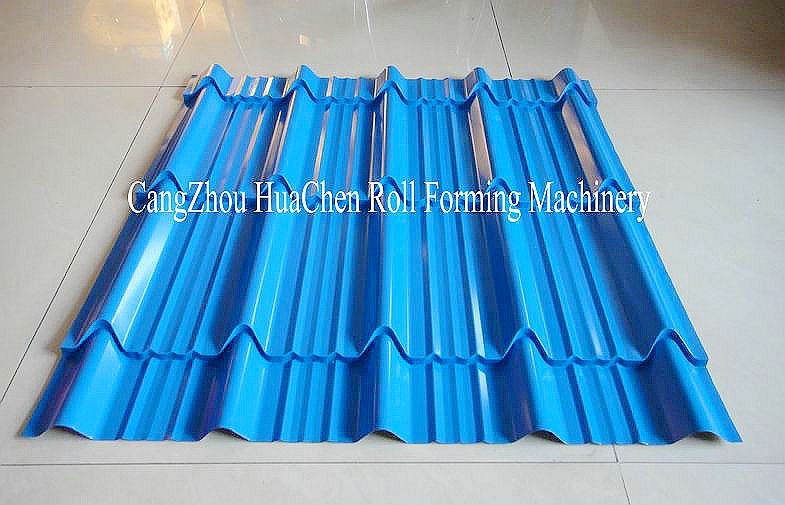

    This type of glazed tile has advantage inclouding beautiful, classical appearance and grace taste. It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.

    Competitive Advantage

    1. save space

    2. easy install

    3. perfect service

    4. excellent quality

    5. save freight
