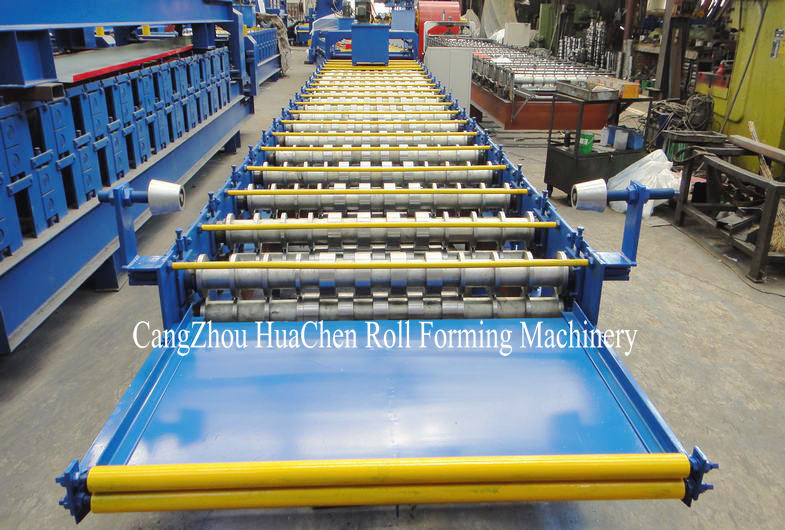

Mitsubishi PLC Corrugated Metal Wall Panel Roll Forming Machine

Quick Detail:

1. Suitable to process: Color steel plate

2. Width of the plate:1250mm

3. Rollers: 18 rows

4. Dimensions: 8.6*1.55*1.51m

5. Power: 4+4kw

6. Rolling material: 45# steel (plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control

Description:

Mitsubishi PLC Corrugated Metal Wall Panel Roll Forming Machine Main parameter

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

Application

This type of sheet can be widely used in plant, house, storage and simple wall. It has advantage of pretty appearance, durable using and so on.

Competitive Advantage

1.ISO certification

2. CE certification

3. PLC Panasonic

4. One year free warranty

5. Low loss, easy operate

Our factory was founded in 1998. We have been engaged in the roll forming machine manufacturing industry over 25 years.

Main products are color steel roll forming machine, classical glazed tile forming machine, C/Z purlin roll forming machine, gutter machine, ridge cap machine, keel roll forming machine for light steel structure building, floor deck forming machine, sandwich panel production line, guardrail roll forming line; and various kinds full-automatic cold roll forming line such as cable trey production line, double C bugging rack beam production line; and other roofing machine line, like stone caoted roofing sheet prodction line.

And our factory has more than 15 years of export experience. we already sold to more than 100 countries and regions in the world. We have a deep understanding of the profiles used in each country and provide high-quality suggestions for subsequent customers' purchases.

In the production of machines, from parts processing and welding to assembly, we have strict quality control in every step. We must be responsible to every customer.
we were and continue always keep: "not only complete a machine, but also perfect every detail".

We have approved certification of CE, the concept “control every process and perfect all products” is curved in everyone’s mind. Each machine will be via testing before leaving factory, problem machines will never be delivered to customer.
We have more than 15 years experience of export and know very well about the different needs of customers from both in developing countries and developed countries, and provide a large number of customers with satisfactory design plan. Now our products have been exported to more than100 countries and regions of the world, and established a long-term cooperative relationship with clients. We do firmly believe a true partnership never ends with the delivery of the goods and satisfactory after-sales service can make a great difference.
We are willing to promote the economic and technical exchanges with the world, and do positive work to enhance the friendship between people from different countries. We sincerely hope: you and I hand in hand, create the glorious future altogether!

Choose Cangzhou Huachen Roll Forming Machinery Co.,Ltd is worth your trust.
We manufacture high standard roll forming machine for export for nearly 15 years.

Our machines have been exported to more than 100 countries and regions around the world.
Maintained good cooperative relations with customers.
