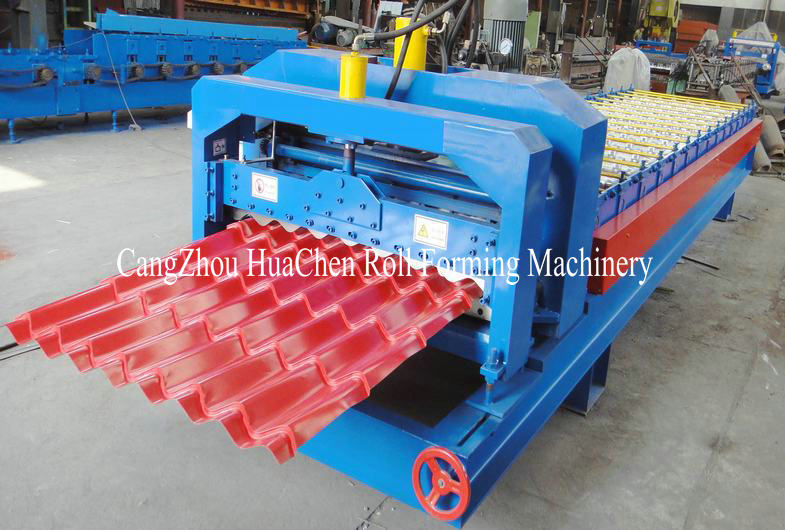

Metal Plate Rolling Glazed Tile Roll Forming Machine Equipments For Roof

    Buy cheap Metal Plate Rolling Glazed Tile Roll Forming Machine Equipments For Roof from wholesalers

    Buy cheap Metal Plate Rolling Glazed Tile Roll Forming Machine Equipments For Roof from wholesalers
    • Buy cheap Metal Plate Rolling Glazed Tile Roll Forming Machine Equipments For Roof from wholesalers
    • Buy cheap Metal Plate Rolling Glazed Tile Roll Forming Machine Equipments For Roof from wholesalers
    • Buy cheap Metal Plate Rolling Glazed Tile Roll Forming Machine Equipments For Roof from wholesalers
    • Buy cheap Metal Plate Rolling Glazed Tile Roll Forming Machine Equipments For Roof from wholesalers

    Metal Plate Rolling Glazed Tile Roll Forming Machine Equipments For Roof

    Ask Lasest Price
    Brand Name : HC
    Certification : ISO
    Model Number : HC30
    Delivery Time : 30days
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    • Product Details
    • Company Profile

    Metal Plate Rolling Glazed Tile Roll Forming Machine Equipments For Roof

    Can't find a reliable supplier for Glazed Tile Roll Forming Machine Equipments? Huachen is your best choise.
    Cangzhou huachen roll forming machinery Co., Ltd is the manufacturer specilized in metal roofing roll forming machine. We provide an extensive line of products, which includes roof and wall panel machine , roof tile machine, purline forming machine, floor decking machine,gutter forming machine,roller shutter machine etc.

    What's your machine application ?
    Our roll forming machines can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.


    Main Parameter

    Metal Plate Rolling Glazed Tile Roll Forming Machine Equipments For Roof

    No.

    Main parameter of Glazed Tile Roll Forming Machine

    1

    Suitable to process

    Color steel plate

    2

    Width of the plate

    1250mm

    3

    Rollers

    15 rows

    4

    Dimensions

    8200*1550*1510mm

    5

    Power

    4+4kw

    6

    Rolling material

    45# steel(plated chrome on surface)

    6

    Thickness of the plate

    0.3-0.6mm

    7

    Productivity

    4m/min

    8

    Diameter of the roller

    Φ70mm

    9

    Voltage

    380V 50Hz 3phases

    10

    Material of the cutting plate

    Cr12

    11

    Hydraulic

    40#

    12

    Processing precision

    Within 1.00mm

    13

    Control system

    PLC control

    Metal Plate Rolling Glazed Tile Roll Forming Machine Equipments For Roof

    Equipment components: Man-made Uncoiler-Roll Forming Machine-Computer Control System-

    Hydraulic Control System-Press Form-Cutting


    Metal Plate Rolling Glazed Tile Roll Forming Machine Equipments For Roof

    Production Sample


    We have a professional design team
    Can also design and manufacture according to customer's requirement.

    Competitive Advantage
    1.ISO certification
    2.CE certification
    3.PLC Panasonic
    4.One year free warranty
    5.Low loss, easy operate

    Why choose Huachen ?
    1.Q: Do you have after sales support?
    A: Yes, we are happy to give advice on machine operating and maintenance. we also have skilled technicians available abroad to help you.We need your machines running in order to keep your business running.

    2.Q: How do your machines compare with other big companies in this market?
    A: We are up to date with the latest technology and improve our machines accordingly .We need to make gress to move forward.

    3.Q: How does your factory do regarding quality control?
    A: Quality is priority.To all Huachen people,the concept "Control every process and perfect all products" is curved in mind. Every product will be fully assembled and carefully tested before it's packed for shipment.

    4.Q: Do you sell only standard machines?
    A: No, most of our machines are designed according to customers specifications,we offer OEM service.

    5.Q: Will you deliver the right goods as ordered? How can I trust you?
    A: Yes, we will. welcome to come and check your machine after finished, or we will show you machine working video for confirm. Then delivery.
