    Metal Roof Profile Ridge Cap Roll Forming Machine / Ridge Tile Machine 380V 50Hz

    Ask Lasest Price
    Brand Name : HC
    Certification : ISO
    Model Number : HC312
    Price : 13000-29000USD
    Delivery Time : 30days
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    • Product Details
    • Company Profile

    Metal Roof Profile Ridge Cap Roll Forming Machine / Ridge Tile Machine 380V 50Hz

    Metal Roof Profile Ridge Cap Roll Forming Machine / Ridge Tile Machine 380V 50Hz


    Our firm is engaged in offering a wide array of Roof Ridge Cap Roll Forming Machine that is widely used in construction industry for making the roof tile outside of building. The components used for its fabrication are procured from reliable sources of the market to deliver high performance and superior quality at users end. Our offered Roof Ridge Cap Roll Forming Machine is highly appreciated for its outstanding functionality, sturdy construction, optimum strength, easy usage and longer functional life. We offer this machine in different specifications to fulfill the diverse needs of clients at most affordable prices.


    Quick Detail:


    1. Suitable to process: Color steel plate

    2. Width of the plate: 400mm

    3. Rollers: 15 rows

    4. Dimensions: 8.1*1.35*1.51m

    5. Power: 3+3kw

    6. Rolling material: 45# steel(plated chrome on surface)

    7. Thickness of the plate:0.3-0.6mm

    8. Voltage: 380V 50Hz 3phases

    9. Material of the cutting plate: Cr12

    10. Hydraulic: 40#

    11. Processing precision: Within 1.00mm

    12. Control system: PLC control

    Metal Roof Profile Ridge Cap Roll Forming Machine / Ridge Tile Machine 380V 50HzMetal Roof Profile Ridge Cap Roll Forming Machine / Ridge Tile Machine 380V 50Hz


    Description:Metal Roof Profile Ridge Cap Roll Forming Machine Designed for Villadom

    Main parameter


    No.

    Main parameter of Ridge Cap Roll Forming Machine

    1

    Suitable to process

    Color steel plate

    2

    Width of the plate

    400mm

    3

    Rollers

    15rows

    4

    Dimensions

    8100*1350*1510mm

    5

    Power

    3+3kw

    6

    Rolling material

    45# steel(plated chrome on surface)

    6

    Thickness of the plate

    0.3-0.6mm

    7

    Productivity

    4m/min

    8

    Diameter of the roller

    Φ66 mm

    9

    Voltage

    380V 50Hz 3phases

    10

    Material of the cutting plate

    Cr12

    11

    Hydraulic

    40#

    12

    Processing precision

    Within 1.00mm

    13

    Control system

    PLC control

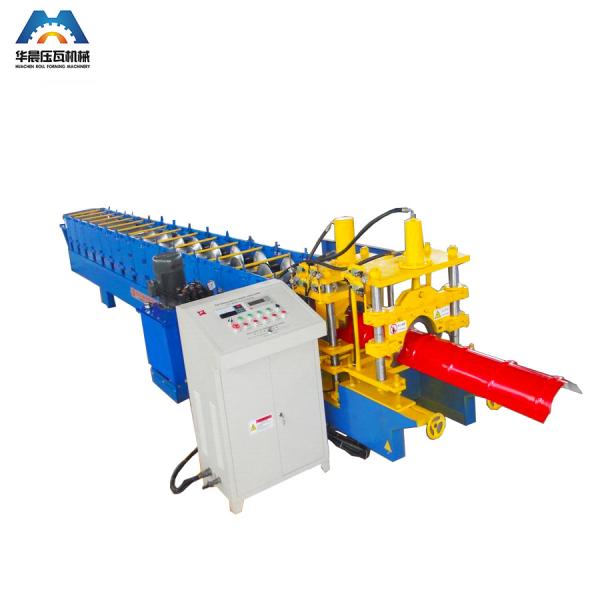

    Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-press form-cutting

    Application


    This product is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product. It has advantage of pretty appearance, durable using and so on.

    Competitive Advantage


    1. save space

    2. easy install

    3. perfect service

    4. excellent quality

    5. save freight
