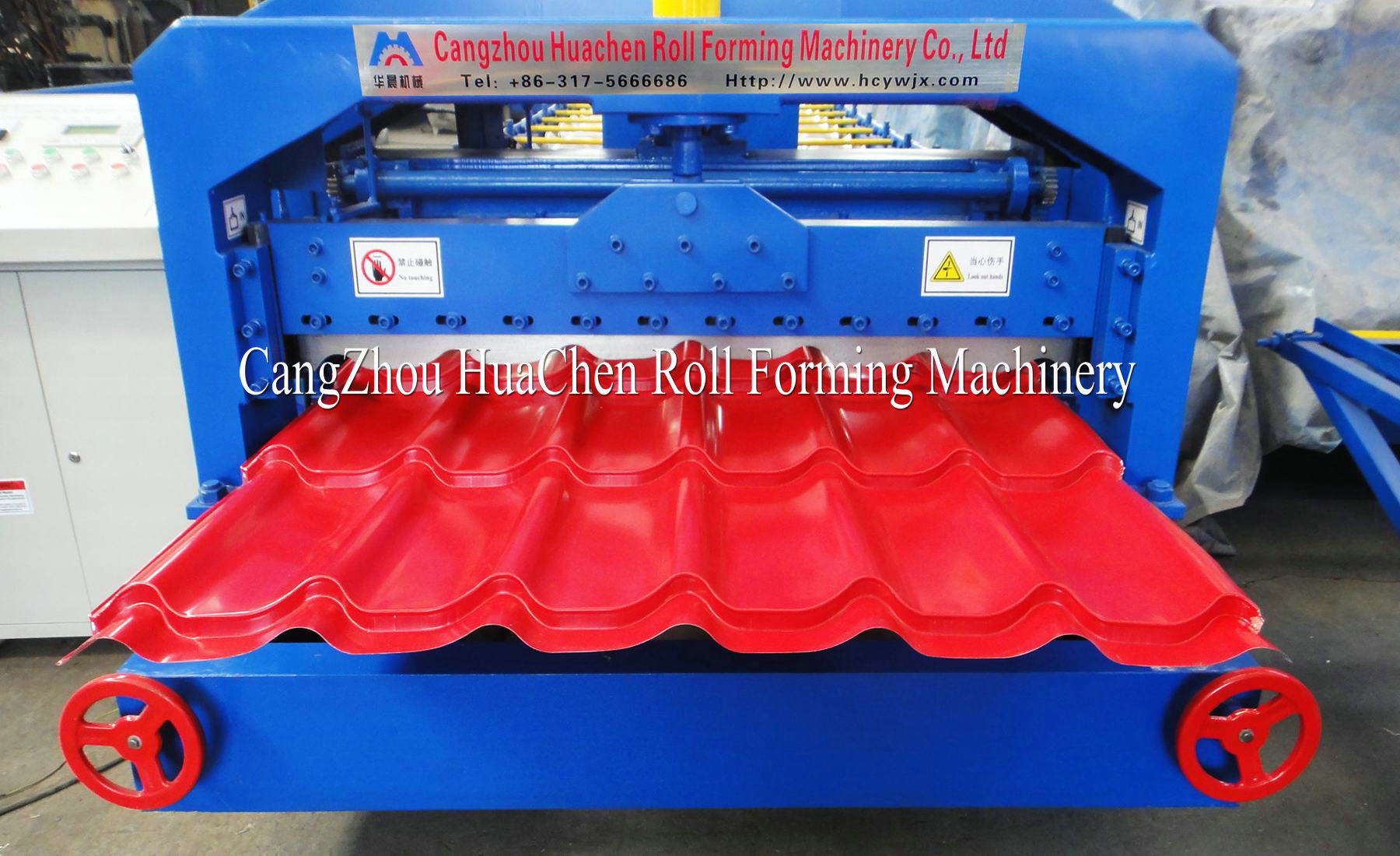

High Precision Villa Glaze Tile Roll Forming Machine 1220mm With 15 Row Rollers

    Buy cheap High Precision Villa Glaze Tile Roll Forming Machine 1220mm With 15 Row Rollers from wholesalers

    Buy cheap High Precision Villa Glaze Tile Roll Forming Machine 1220mm With 15 Row Rollers from wholesalers
    • Buy cheap High Precision Villa Glaze Tile Roll Forming Machine 1220mm With 15 Row Rollers from wholesalers
    • Buy cheap High Precision Villa Glaze Tile Roll Forming Machine 1220mm With 15 Row Rollers from wholesalers
    • Buy cheap High Precision Villa Glaze Tile Roll Forming Machine 1220mm With 15 Row Rollers from wholesalers
    • Buy cheap High Precision Villa Glaze Tile Roll Forming Machine 1220mm With 15 Row Rollers from wholesalers

    High Precision Villa Glaze Tile Roll Forming Machine 1220mm With 15 Row Rollers

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC25-180-1100
    Certification : ISO/CE
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    High Precision Villa Glaze Tile Roll Forming Machine 1220mm With 15 Row Rollers

    High Precision Villa Glaze Tile Roll Forming Machine 1220mm With 15 Row Rollers

    What's your machine application ?
    Our roll forming machines can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

    How about the parameters for Roll Forming Machine? If need some change, just tell me
    1. Suitable to process: Color steel plate
    2. Width of the plate: 1220mm
    3. Rollers: 15 rows
    4. Dimensions: 8.2*1.55*1.51m
    5. Power: 4+4kw
    6. Rolling material: 45# steel(plated chrome on surface)
    7. Thickness of the plate:0.3-0.6mm
    8. Voltage: 380V 50Hz 3phases
    9. Material of the cutting plate: Cr12
    10. Hydraulic: 40#
    11. Processing precision: Within 1.00mm
    12. Control system: PLC control

    Description:

    No.

    Main parameter of Glazed Tile Roll Forming Machine

    1

    Suitable to process

    Color steel plate

    2

    Width of the plate

    1220mm

    3

    Rollers

    15 rows

    4

    Dimensions

    8200*1550*1510m

    5

    Power

    4+4kw

    6

    Rolling material

    45# steel(plated chrome on surface)

    6

    Thickness of the plate

    0.3-0.6mm

    7

    Productivity

    4m/min

    8

    Diameter of the roller

    Φ70mm

    9

    Voltage

    380V 50Hz 3phases

    10

    Material of the cutting plate

    Cr12

    11

    Hydraulic

    40#

    12

    Processing precision

    Within 1.00mm

    13

    Control system

    PLC control

    Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-press form-cutting


    Application
    This type of glazed tile has advantage inclouding beautiful, classical appearance and grace taste. It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.


    Competitive Advantage
    1. good service
    2. easy installation
    3. short delivery time
    4. professional design team
    5. easy to use
