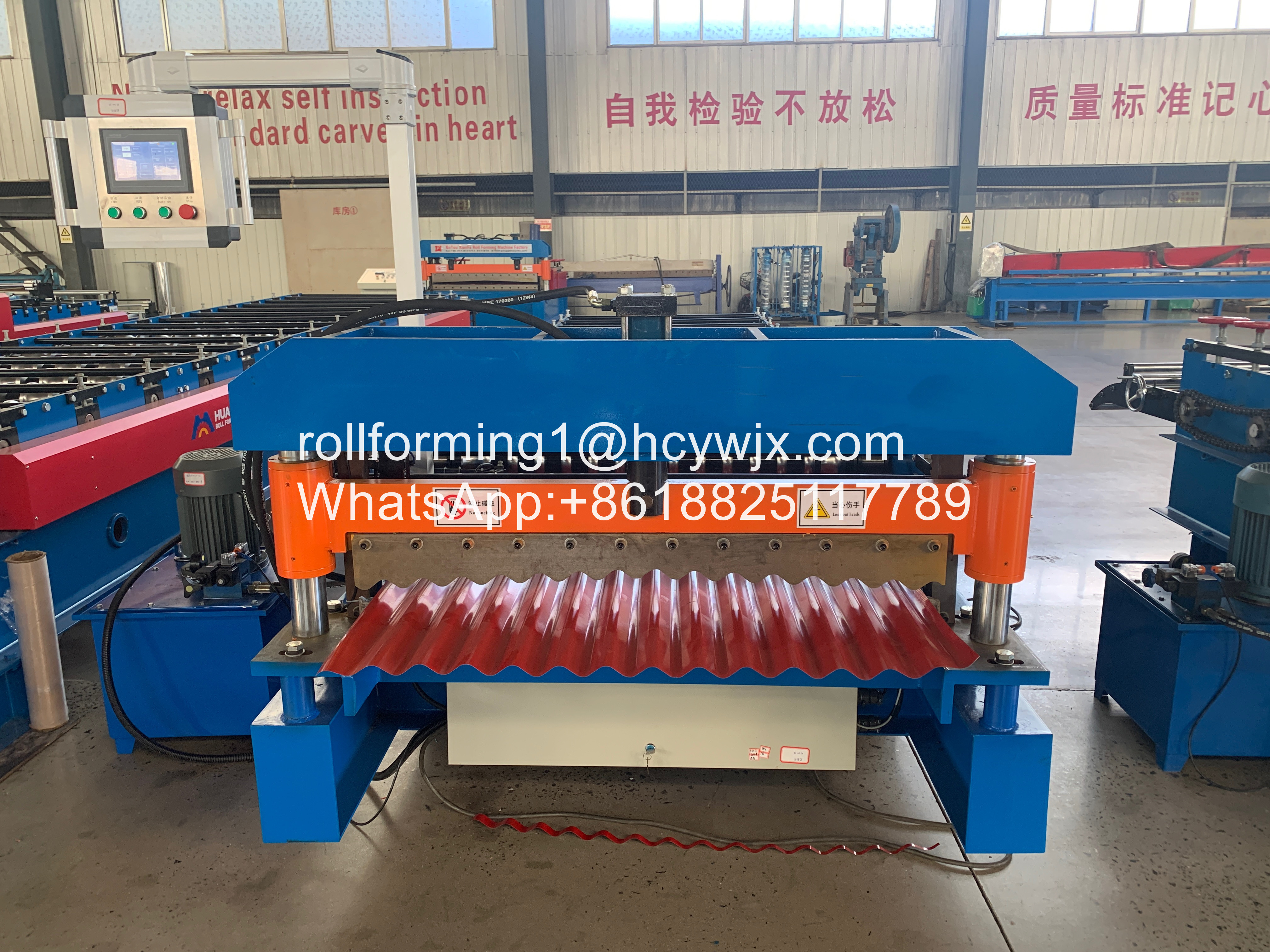

    500mm Corrugated Sheet Roll Forming Machine

    Ask Lasest Price
    Brand Name : HC
    Certification : ISO
    Price : 8000-29000USD
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    500mm Corrugated Sheet Roll Forming Machine

    Quick Detail:

    φ70mm Galvanized Roofing Sheet Roll Forming Machine With 19 Rows Rollers

    1. Suitable to process: Color steel plate

    2. Width of the plate: 500mm

    3. Rollers: 16 rows

    4. Dimensions: 7.8*1.35*1.51m

    5. Power: 3+3kw

    6. Rolling material: 45# steel(plated chrome on surface)

    7. Thickness of the plate:0.3-0.7mm

    8. Voltage: 380V 50Hz 3phases

    9. Material of the cutting plate: Cr12

    10. Hydraulic: 40#

    11. Processing precision: Within 1.00mm

    12. Control system: PLC control



    Working Flow:

    φ70mm Galvanized Roofing Sheet Roll Forming Machine With 19 Rows Rollers

    double sheet forming machine.jpg

    Manual Uncoiler- Roll Forming Machine - Computer Control System - Hydraulic Control System - Cutting


    Main parameter

    No.

    Main parameter of Roof Sheet Roll Forming Machine

    1

    Suitable to process

    Color steel plate

    2

    Width of the plate

    914mm

    3

    Rollers

    19 rows

    4

    Dimensions

    9100*1350*1510mm

    5

    Power

    3+3kw

    6

    Rolling material

    45# steel(plated chrome on surface)

    7

    Thickness of the plate

    0.3-0.6mm

    8

    Productivity

    8-10m/min

    9

    Diameter of the roller

    Φ70mm

    10

    Voltage

    380V 50Hz 3phases

    11

    Material of the cutting plate

    Cr12

    12

    Hydraulic

    40#

    13

    Processing precision

    Within 1.00mm

    14

    Control system

    PLC control

    Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

    Application

    This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.


    Competitive Advantage

    1. operations safety

    2. nice appearance, high quality

    3. reasonable price

    4. CE certification

    5. ISO certification
