Product Description
The equipment is mainly composed of a feeding system, a roll forming system, a cutting system and a control system. At the beginning of work, the feeding system smoothly discharges the rolled metal sheet, and the sheet is conveyed to the roll forming system.
The roll forming system is the core part of the entire equipment, which consists of multiple groups of rollers with different shapes. As the sheet is gradually pushed forward between the rollers, each group of rollers gradually presses and shapes the sheet according to the pre-designed shape

Main Technical Parameters

Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting

Component & Technical Parameters

This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
In the production process of glazed tiles, metal sheets are usually supplied in the form of coils. The primary function of the uncoiler is to smoothly and steadily unwind these tightly wound metal sheets.

Hydraulic Pump Station

When the equipment encounters abnormal resistance or excessive pressure, it can automatically adjust the pressure of the hydraulic system to avoid damage to the equipment due to overload, thereby improving the reliability and stability of the floor deck forming machine.

In the cutting process, the hydraulic pump station pushes the cutting tool to move quickly and forcefully, accurately cutting the formed floor deck to the set length.

Touch Screen Control Cabinet

The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Feeding Table & Pre-Cutter

The feed table provides operators with a convenient loading platform, allowing them to easily place metal sheets on the conveyor rack, reducing the difficulty of manual handling and adjustment and improving loading efficiency.
Through the rotation or movement of the conveying assembly, the plate placed on the conveying rack is smoothly conveyed to the forming device of the tile press, ensuring that the plate can accurately enter the forming mold for processing

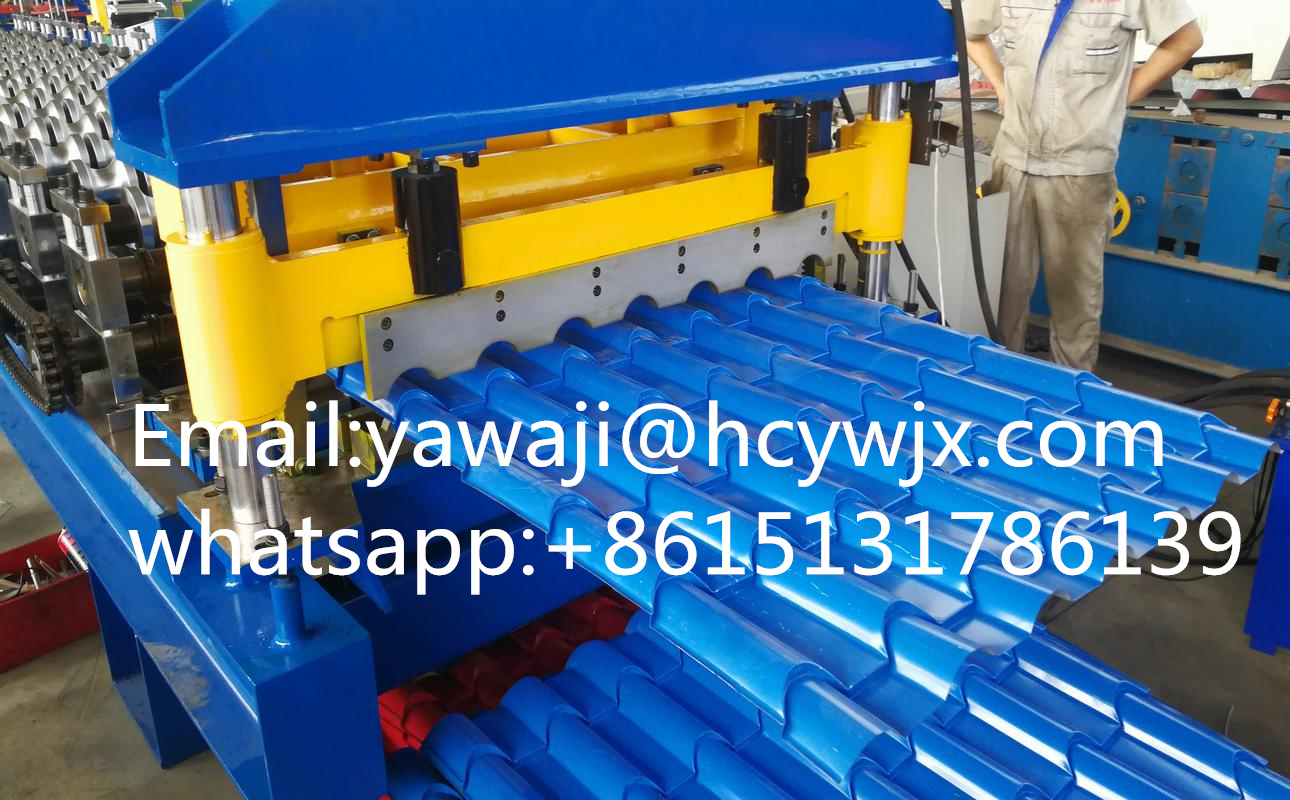

Pressing Section & Cutter

Generally, the power is provided by a hydraulic cylinder. Through the control of the hydraulic station, the piston rod of the hydraulic cylinder is extended or retracted, thereby driving the upper cutter to move up and down to achieve the cutting action. The hydraulic drive has the advantages of high power, stable operation, and convenient speed regulation, which can meet the cutting needs of plates of different thicknesses and materials.
